61 31 055 Removing and installing/replacing switch for SMG transmission (program selector switch)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 3 SERIES (E46)

64 1 020

M3:

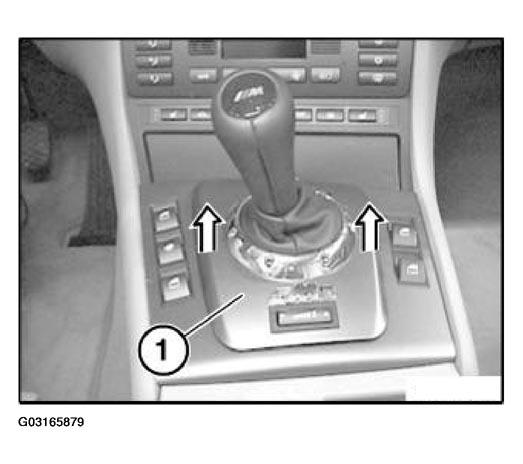

Unclip trim for storage tray (1) sideways and lift.

Fig 1: Uncliping Trim For Storage Tray (M3)

Courtesy of BMW OF NORTH AMERICA, INC.

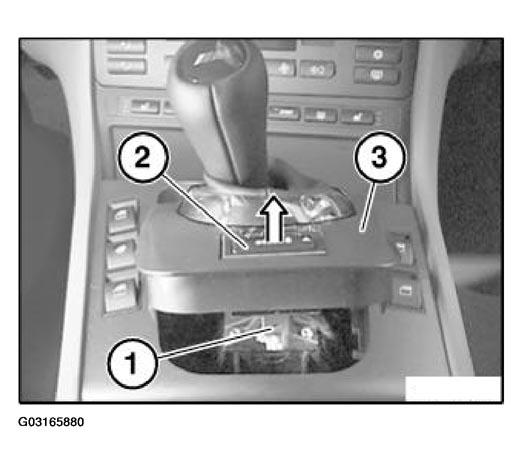

Disconnect plug connection (1).

Unclip switch for SMG transmission (2) in direction of arrow from trim for storage tray (3) and remove.

Fig 2: Removing Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

All:

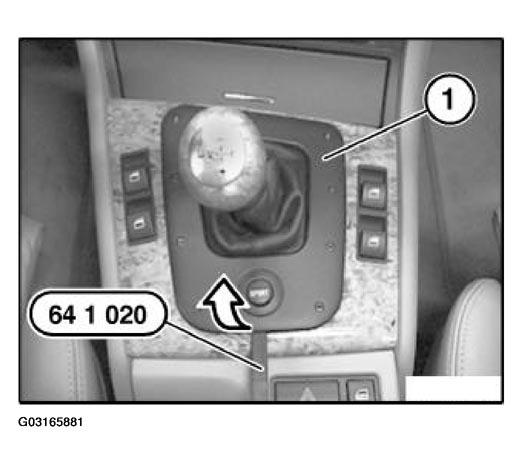

Unclip trim for storage tray (1) with special tool 64 1 020 and raise in direction of arrow.

Fig 3: Uncliping Trim For Storage Tray (All)

Courtesy of BMW OF NORTH AMERICA, INC.

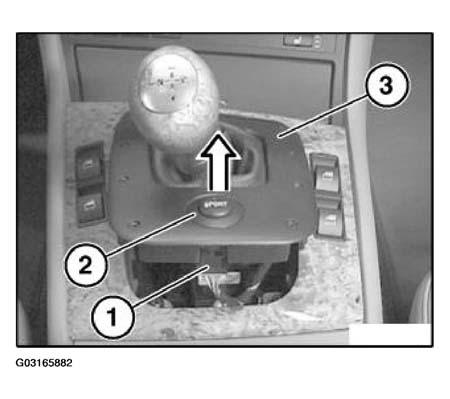

Disconnect plug connection (1).

Unclip switch for SMG transmission (2) in direction of arrow from trim for storage tray (3) and remove.

Fig 4: Removing Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.
