61 31 036 Removing and installing/replacing operating unit for light switch unit

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip left trim, remove left glovebox, remove light switch unit, see 61 31 033 REMOVING AND INSTALLING LIGHT SWITCH UNIT  and unclip operating unit.

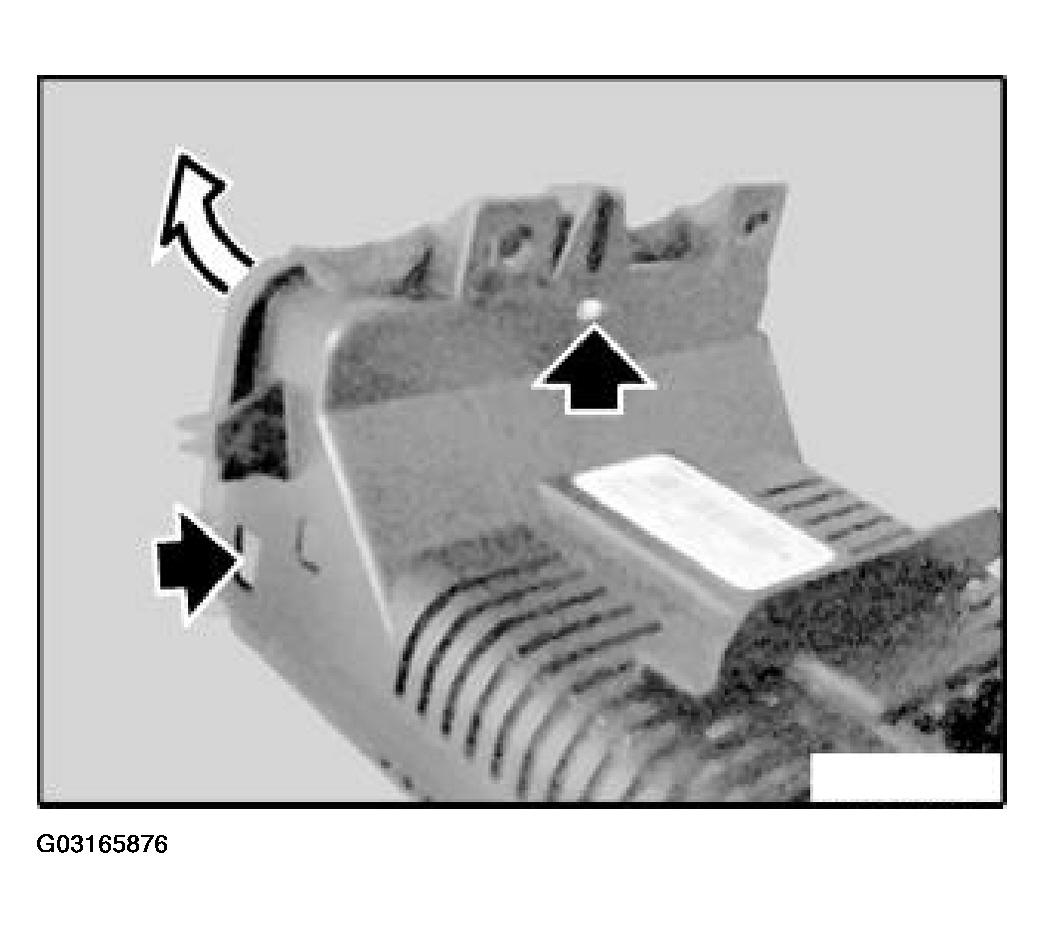

Fig 1: Uncliping Operating Unit
G03165876Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

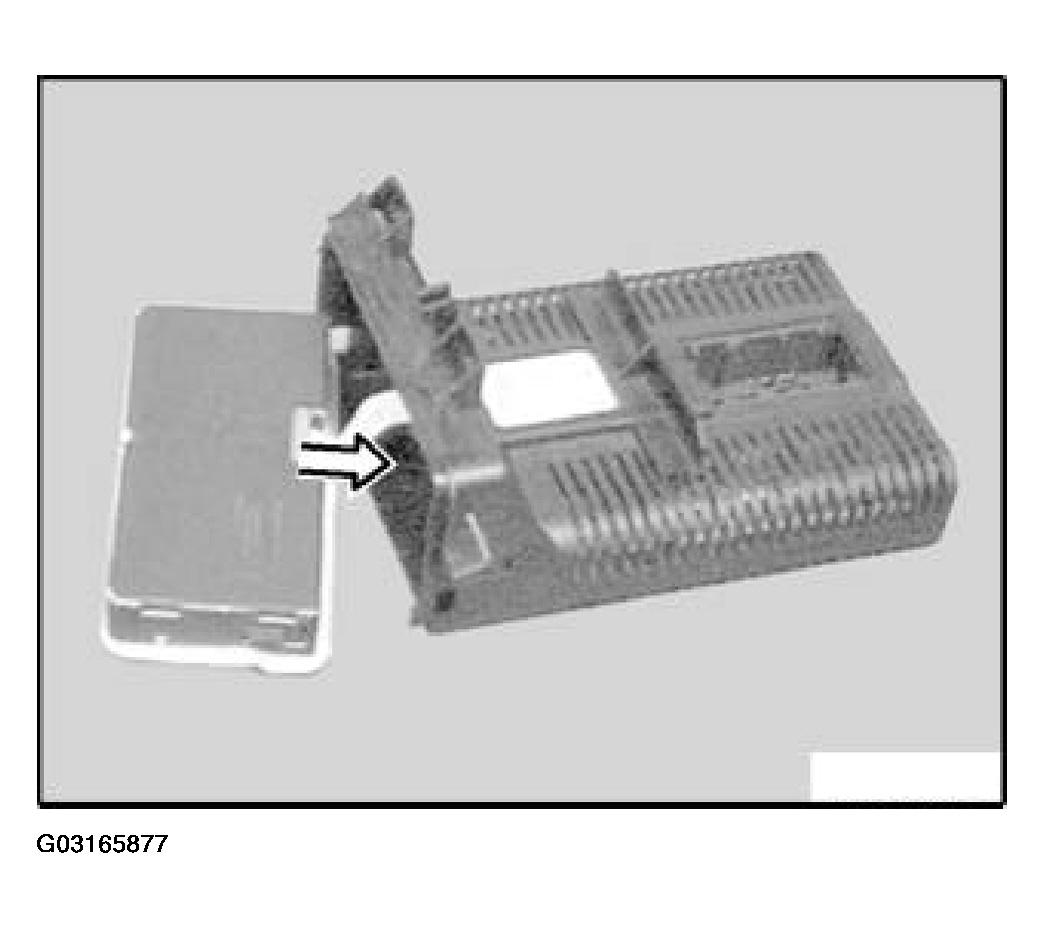

Fig 2: Pulling Off Connectors
G03165877Courtesy of BMW OF NORTH AMERICA, INC.
