Switch, trailer socket

The trailer module (AHM) identifies a connected connector by the status of the trailer socket switch.

If a connector in the trailer socket is identified as connected, it is not possible to pivot the ball head in.

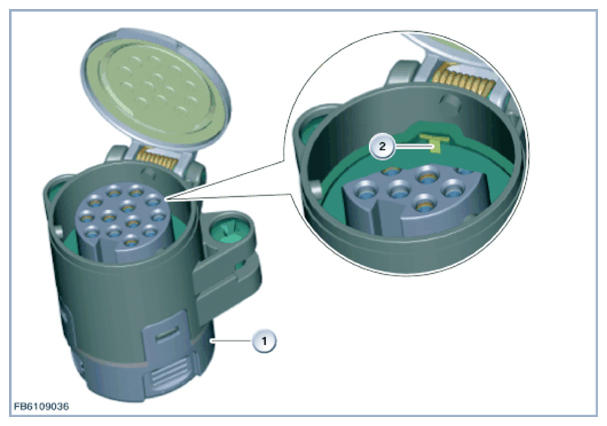

Fig 1: Identifying Switch And Trailer Socket

Courtesy of BMW OF NORTH AMERICA, INC.
