Set Oscilloscope Display Crankshaft Sensor

Signal at idle:

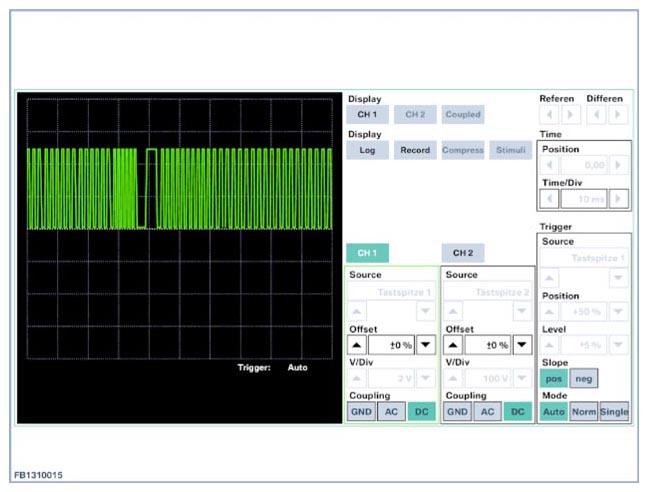

Fig 1: Display - Crankshaft Sensor Signal Waveform Screen (Signal At Idle)

Courtesy of BMW OF NORTH AMERICA, INC.

Signal at starting speed:

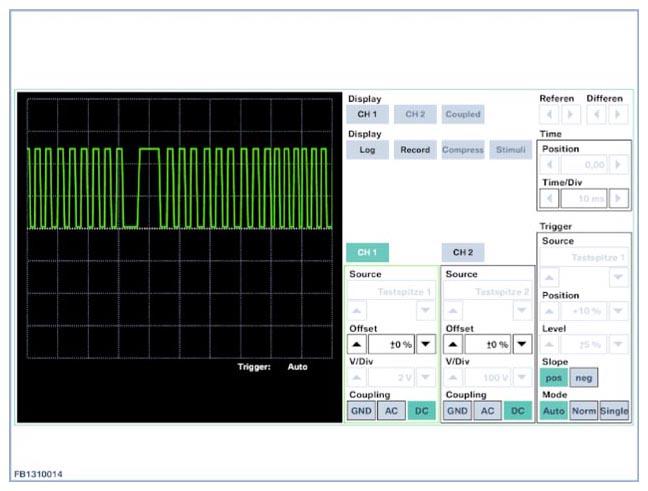

Fig 2: Display - Crankshaft Sensor Signal Waveform Screen (Signal At Starting Speed)

Courtesy of BMW OF NORTH AMERICA, INC.
