Regular Sleeping
This service information provides an overview of the typical current values that are measured in an external closed-circuit current measurement with a current measuring clip during regular sleeping.
Refer to the following service information for the procedure for external standby current measurement: Observing going into sleep mode by means of external standby current measurement

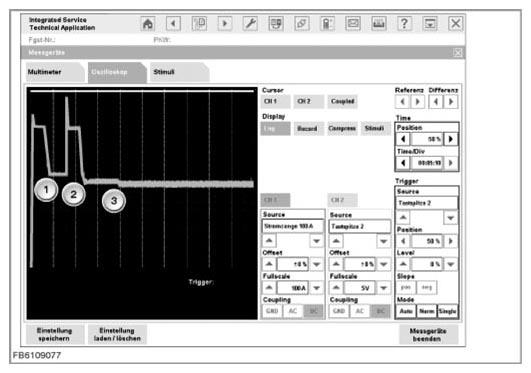

| No. | Time | Event | Typical current values |
|---|---|---|---|
| 1 | 0 - 3 min | Reaching the idle state | 6 to 15 A depending on the equipment. |
| 3 - 8 min | Vehicle sleeping | 0.4 to 1.5 A depending on the consumer units that are switched on (e.g. map-reading light or glove box light). | |
| 2 | 8 - 9 min | FRM wakes up the vehicle: Consumer unit shutdown. | 6 to 8 A depending on the equipment. |
| 9 - 30 min | Vehicle sleeping | - 250 to 350 mA depending on equipment.- approx. 350 mA as of model year 09/2007 for vehicles Automatic Start/Stop and DC/DC converter. | |
| 3 | 30 min | Shutdown of terminal 30 switched | < 20 mA depending on the equipment. |
