Plug connection check

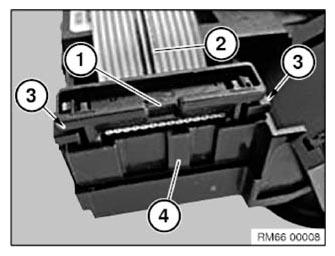

Fig 1: Identifying Radio-Operated Key And Ribbon Cable

Courtesy of BMW OF NORTH AMERICA, INC.

• Check both sides of plug connection of ribbon cable (1) to slide-in unit for radio-operated key (4) for correct locking (3).
• Check ribbon cable (2) for damage.

Ensure the plug connection is secure and check the function.

The plug-in unit must not be renewed if the fault could be rectified!
