Brief description of components: Notes
The following components are described for the RTTI splitter:
- IBOC: In Band On Channel
- CCC: Car Communication Computer

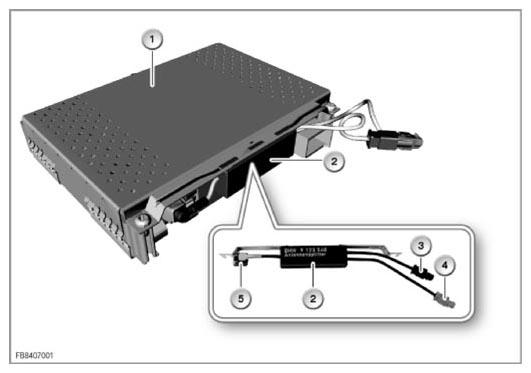

| Index | Explanation |
|---|---|
| 1 | IBOC |
| 2 | RTTI splitter with bracket |
| 3 | AM/FM signal (antenna amplifier with diversity module) Connector color code: black |
| 4 | AM/FM signal (CCC) Connector color code: curry-yellow |
| 5 | AM/FM signal (IBOC) Connector color code: black |
