CVM: Convertible-top module

The soft top Module (CVM) controls all the electric and hydraulic functions of the soft top. The convertible top module is connected on the K-CAN.

The soft top module is installed at the rollover protection.

Under certain block conditions, the CVM cannot execute a soft top movement (see 'SYSTEM FUNCTIONS ').

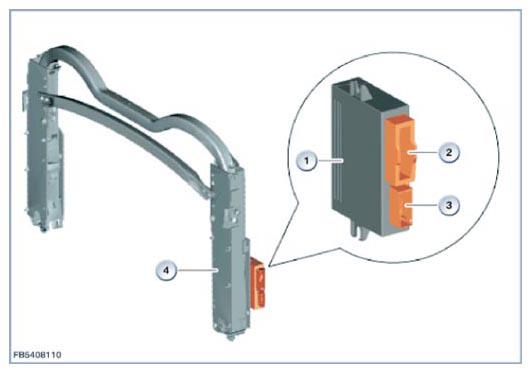

Fig 1: Identifying Convertible-Top Module And Plug Connection
G10003988Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Convertible top module (CVM)
2 41-pin plug connection
3 26-pin plug connection
4 Roll-over protection system
