Central information display

With certain optional equipment (for example Radio MINI Visual Boost or navigation system), the vehicle is equipped with a Central Information Display (CID). In that case, a CCC or CHAMP is installed.

The CID is 6.5 inches high. The resolution is 640 x 240 pixels with 16-bit color depth (as of 08/2010 800 x 480 pixels). The Central Information Display (CID) and the central instrument panel are inserted in one another and installed together in the dashboard.

The central instrument panel is connected via a local data bus at the auxiliary instrument (KOMBI2) on the steering column.

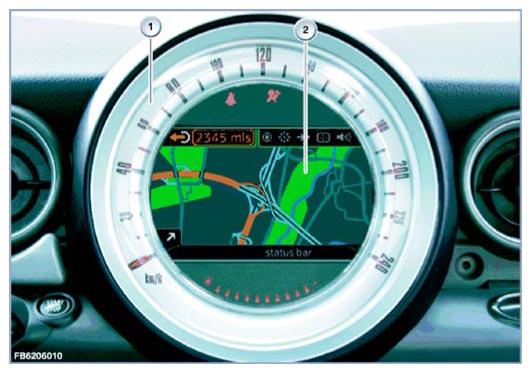

Fig 1: Display - Central Information Screen

Courtesy of BMW OF NORTH AMERICA, INC.

The Central Information Display is connected to the headunit via an LVDS data line. The CID is also connected to the K-CAN. The LVDS data line consists of 4 individual lines and shielding (formerly 8 lines and shielding).

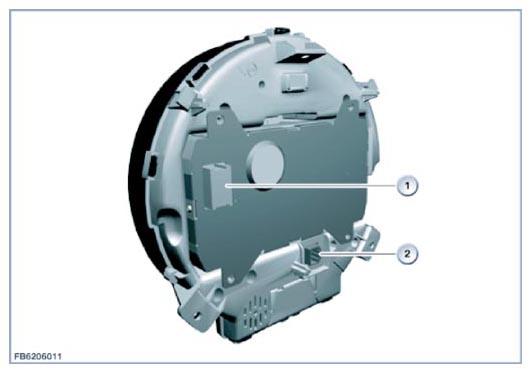

Fig 2: Identifying Central Information Display Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

The CID contains a phototransistor for brightness control of the LC display (depending on the ambient brightness). The LC display is heated.
