Brief component description: Champ
There are 2 versions of CHAMP: with and without navigation system .

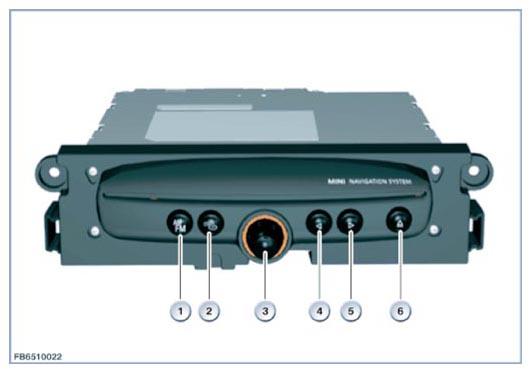

| Item | Explanation |
|---|---|
| 1 | Button for switching between AM and FM |
| 2 | Button for switching between different audio sources |
| 3 | Rotary pushbutton for controlling the volume of the audio system and mute button |
| 4 | Station search, skip track backwards |
| 5 | Station search, skip track forwards |
| 6 | Eject button for CD drive |
In principle, the structure of the CHAMP corresponds to that of a personal computer. In a similar way to a PC, the CHAMP contains:
- Processor
- Working memory
- Other peripherals
The following applications are stored on the memory card (16 GB with navigation system):
- Navigation software (application software)
- Navigation (map data)
- Voice processing system
- Contacts (database of names and addresses)
The head unit is connected to the diagnosis connector via Ethernet. This means that in service mode, map data for the navigation system can be loaded via the ISTA/P programming system as standard.
Because of the extended functionality, the connections on the rear of the CHAMP have changed.

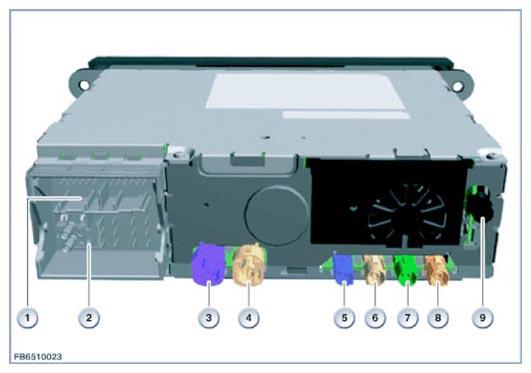

| Item | Explanation |
|---|---|
| 1 | Two 12-pin connectors for Ethernet, TEL_NF, AUX-IN connection, FBAS video input signal, microphone input |
| 2 | 16-pin connector for K-CAN, low frequency audio output, voltage supply, wheel-on signal and two-pin MOST interface |
| 3 | LVDS signal (digital picture signal to CID, violet connector) |
| 4 | USB connection for updating the map data for navigation (beige connector) |
| 5 | GPS aerial signal (blue connector) |
| 6 | Bluetooth (beige connector) |
| 7 | DAB L band aerial signal (green connector) |
| 8 | DAB band III aerial signal (curry yellow connector) US version: SDARS aerial signal |
