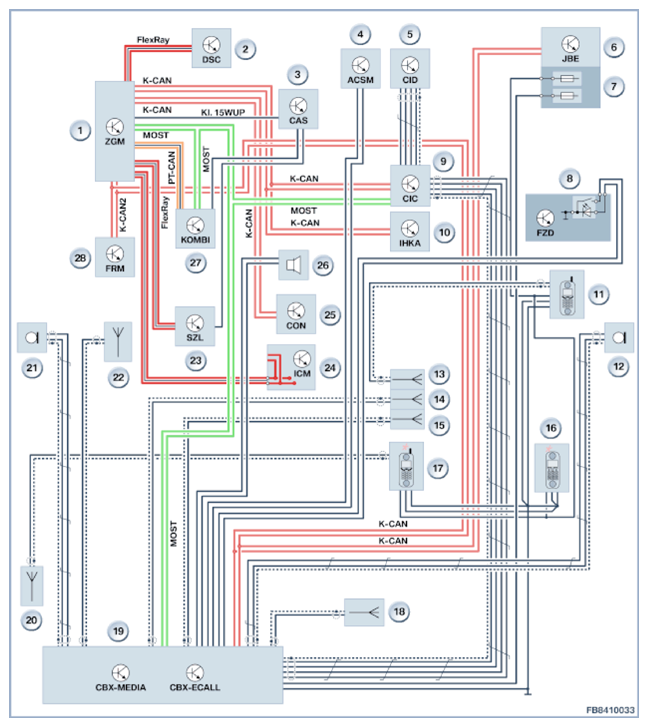

| 1 |
Central gateway module (ZGM) |
| 2 |
Dynamic stability control (DSC) |
| 3 |
Car access system (CAS) |
| 4 |
Crash Safety Module (ACSM) |
| 5 |
Central information display (CID) |
| 6 |
Junction Box Electronics (JBE) |
| 7 |
Front fuse and relay module |
| 8 |
Roof function center (FZD) |
| 9 |
Car Information Computer (CIC), other headunits also possible, Ethernet connection only with Car Information Computer high version |
| 10 |
Integrated automatic heating/air conditioning system (IHKA) |
| 11 |
Front mobile phone base plate |
| 12 |
Microphone |
| 13 |
Telephone aerial (GSM 1) in roof-mounted aerial |
| 14 |
Telephone aerial (GSM 2) in roof-mounted aerial |
| 15 |
GPS aerial in roof-mounted aerial |
| 16 |
Handset base plate |
| 17 |
Rear mobile phone base plate |
| 18 |
Emergency GSM aerial |
| 19 |
Combox multimedia (CBX-MEDIA) and Combox emergency call (CBX-ECALL) |
| 20 |
Telephone aerial, bumper |
| 21 |
Microphone 2 |
| 22 |
Bluetooth aerial |
| 23 |
Steering column switch center (SZL) |
| 24 |
Integrated chassis management (ICM) |
| 25 |
Controller (CON) |
| 26 |
Emergency loudspeaker |
| 27 |
Instrument panel (KOMBI) |
| 28 |
Footwell module (FRM) |
