62 11 210 Replacing instrument cluster electronics: Notes

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER

Unfasten locking unit, fold over retaining bracket and remove connector.

Fig 1: Removing Instrument Cluster Connector

Courtesy of BMW OF NORTH AMERICA, INC.

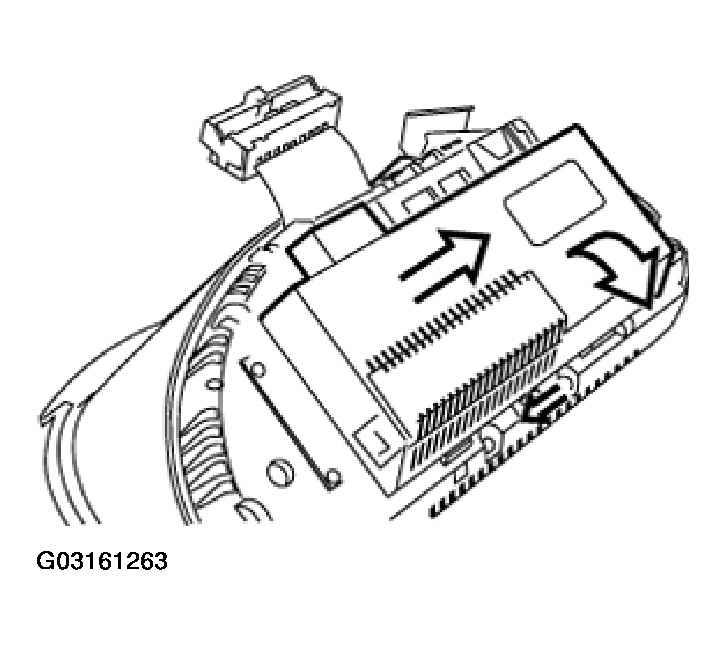

Unfasten locking unit, slide electronics module sideways and lift out.

Fig 2: Removing Electronics Module

Courtesy of BMW OF NORTH AMERICA, INC.
