Removal & Installation of Quick-Release Coupling with Indication Pins
WARNING: This page does not describe the selected car, but rather 48 other vehicles, including the 2006 BMW M3, 2006 BMW 330xi, 2006 BMW 330Ci, 2006 BMW 325xi, and 2006 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

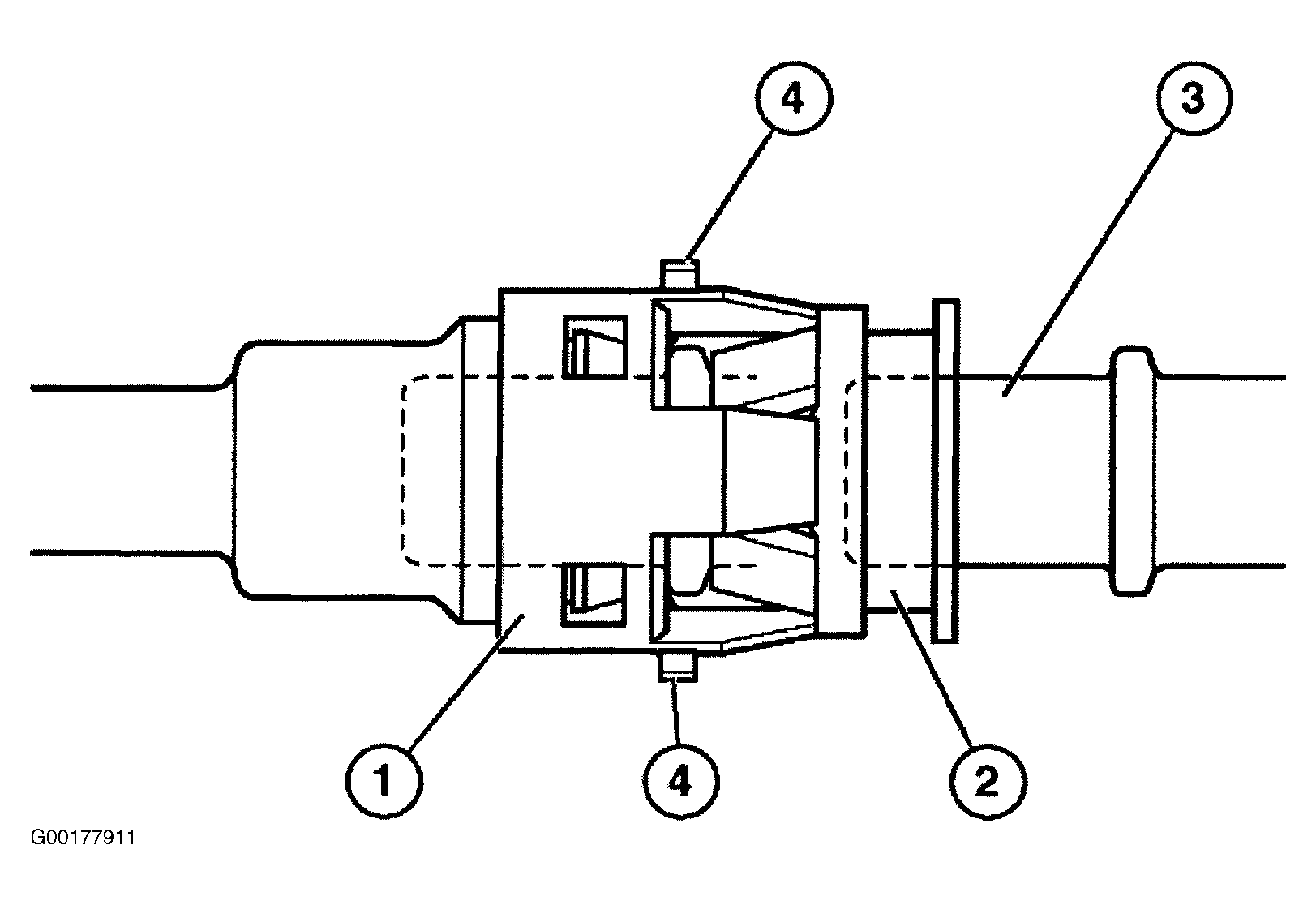

Coupling is not correctly engaged if both indication pins (4) fail to protrude from housing. Leakage will occur. See Fig 1.
- Press plastic ring (2) into quick-release coupling (1) and remove coupling (1). See Fig 1.
- To install, push quick-release coupling (1) onto connector (3) until both indication pins (4) can be seen and felt to point outwards at outside diameter of housing. To check that quick-release coupling (1) has been correctly fitted, feel indication pins (4) at outside diameter of housing. When correctly seated, indication pins (4) cannot be pressed into housing.
