Checking Pump Pressure
WARNING: This page does not describe the selected car, but rather 48 other vehicles, including the 2006 BMW M3, 2006 BMW 330xi, 2006 BMW 330Ci, 2006 BMW 325xi, and 2006 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.

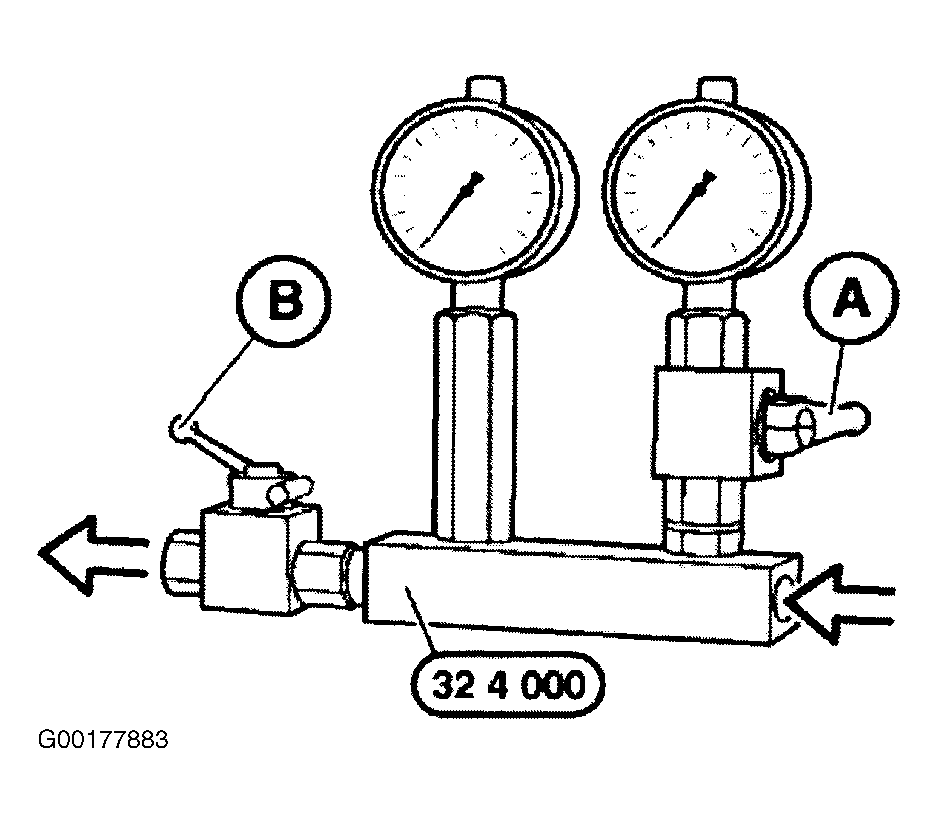

- Close valve (A) and open valve (B). See Fig 1.
- Start engine. Ensure correct hydraulic fluid level in tank.
- Heat hydraulic fluid to approximately 122° F (50° C) by moving steering wheel at increased engine speed.
- Close valve (B) for a maximum 10 seconds and read off pressure. If pressure exceeds 1595 psi (110-120 bar) by more than 10 percent replace vane pump. If pressure is 10 percent less than 1595 psi 1595 psi (110-120 bar), check ribbed V-belt tension. If tension is OK, replace vane pump.
- Connect pressure line after removing special tool. Tighten to specification. See TORQUE SPECIFICATIONS .
- Bleed hydraulic system. See BLEEDING POWER STEERING SYSTEM under LUBRICATION.
