Abs/ASC+T Hydraulic Unit: Installation

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedures.
When attaching control module to hydraulic unit, use NEW micro-encapsulated screws. Tighten to specification. See TORQUE SPECIFICATIONS .
Check rubber mount (1) for correct seating. Replace damaged rubber mount. See Fig 1.
Ensure rubber grommet is correctly seated when installing brake lines. Tighten brake lines to specification. See TORQUE SPECIFICATIONS .
When installing vacuum line and B+ line, ensure rubber grommets are correctly seated.
Using Diagnosis Information System (DIS) Tester, perform function test on ABS/ASC+T hydraulic unit. For procedure, refer to DIS instructions.
Bleed brakes. See BASIC BLEEDING PROCEDURES .

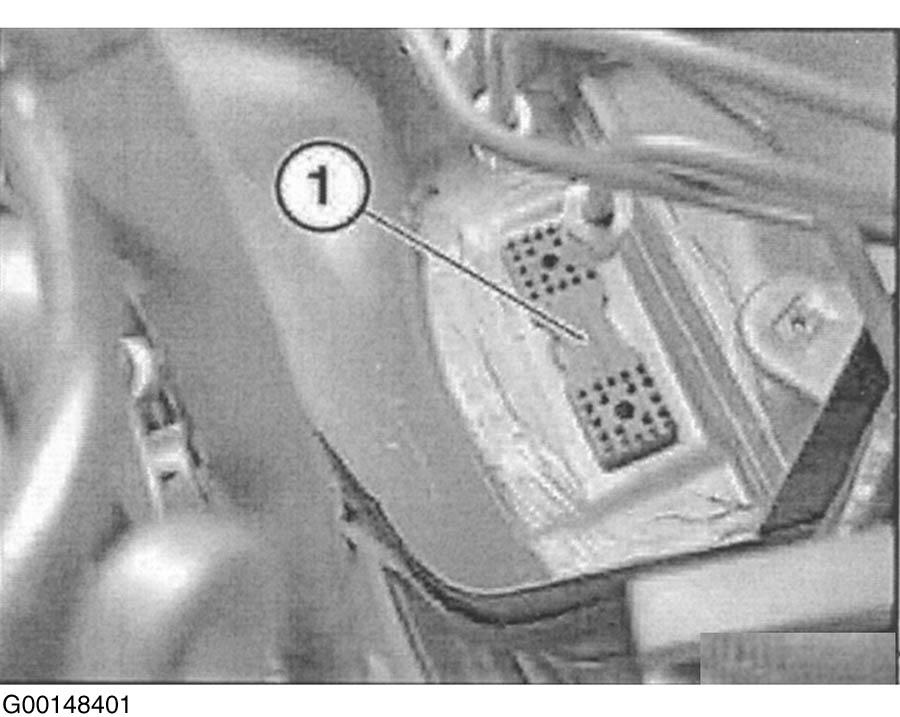

Fig 1: Locating Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.
