61 31 348 Replacing microswitch for unlocking rear lid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove strip handle (on rear lid). Refer to 51 13 402 REMOVING AND INSTALLING HANDLE STRIP (ON TRUNK LID) .

Remove clip (1) in direction of arrow.

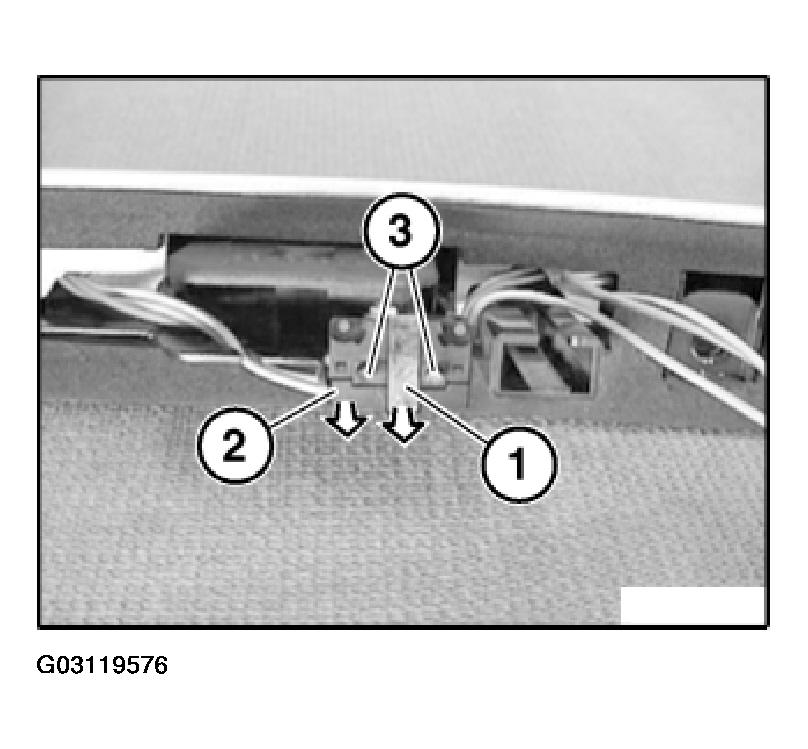

Fig 1: Removing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure clip (1) is correctly seated.

Remove switch for unlocking rear lid (2) in direction of arrow from fixtures (3).

Cut wires on switch for unlocking rear lid (2) to length and strip insulation.

Crimp stop parts.
