61 31 313 Replacing a brake lining sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL

Open plug housing (1).

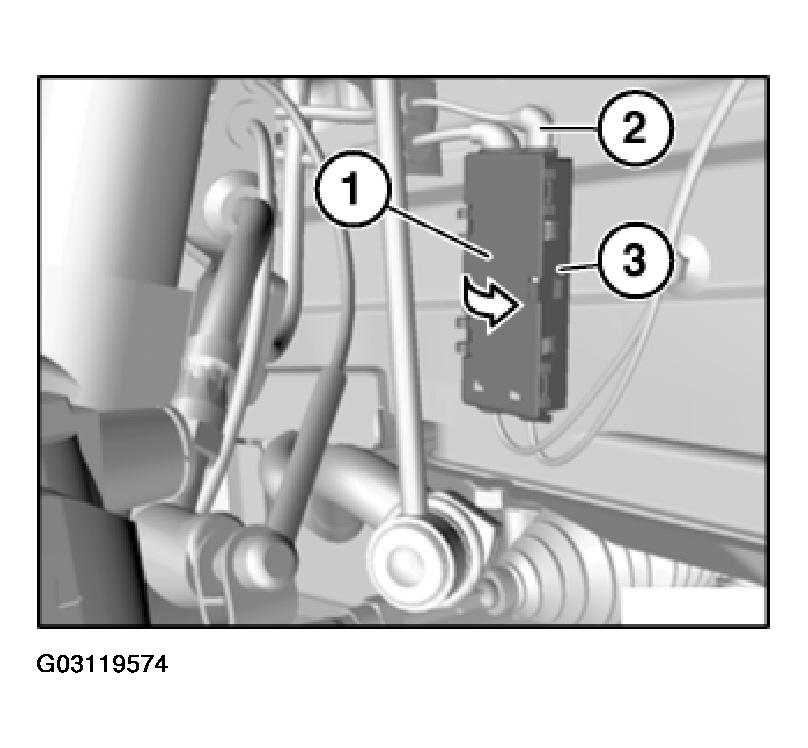

Fig 1: Feeding Lead From Brake Lining Sensor Out Of Fixtures

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip lead of brake lining sensor (2) from plug housing (1).

Disconnect associated plug connection of lead from brake lining sensor (2).

Feed lead from brake lining sensor (2) out of fixtures.

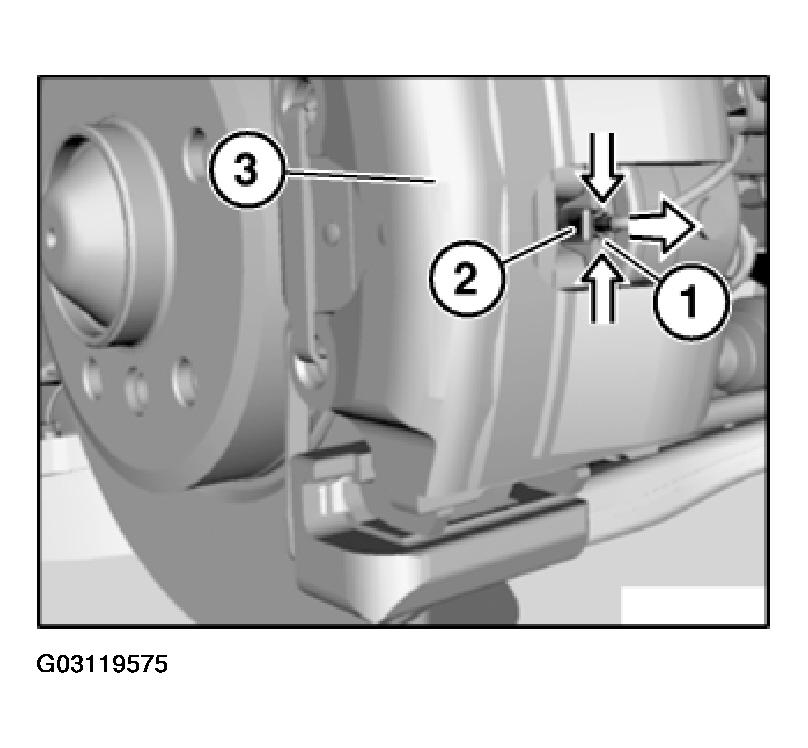

Press clip (1) together and detach brake lining sensor (2) in direction of arrow from brake caliper (3).

Fig 2: Detaching Brake Lining Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure clip (1) and brake lining sensor (2) are correctly seated in brake caliper (3).
