61 31 299 Removing and installing/replacing clutch switch module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

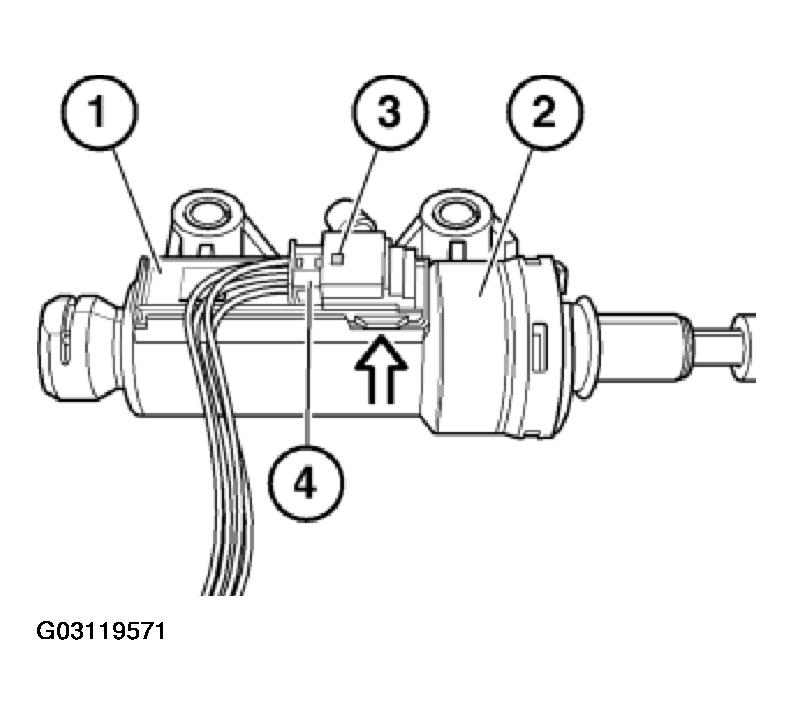

NOTE: Clutch master cylinder (2) is removed for purposes of clarity.

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.

Fig 1: Removing Clutch Switch Module From Clutch Master Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (4) and disconnect from housing (3).

Installation:

Clutch switch module is protected against incorrect installation.

Clutch switch module must snap audibly into place.

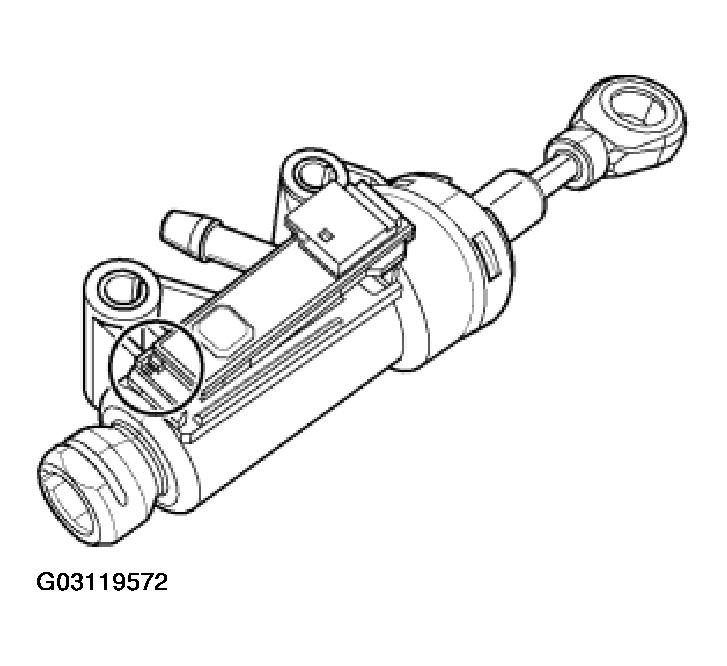

Fig 2: Identifying Clutch Switch Module Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.
