61 31 115 Replacing rocker switch for side-window operation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Version with SMG transmission only:
Remove trim for storage tray. Refer to 61 31 055 REMOVING AND INSTALLING/REPLACING SWITCH FOR SMG TRANSMISSION (PROGRAM SELECTOR SWITCH) .
All:

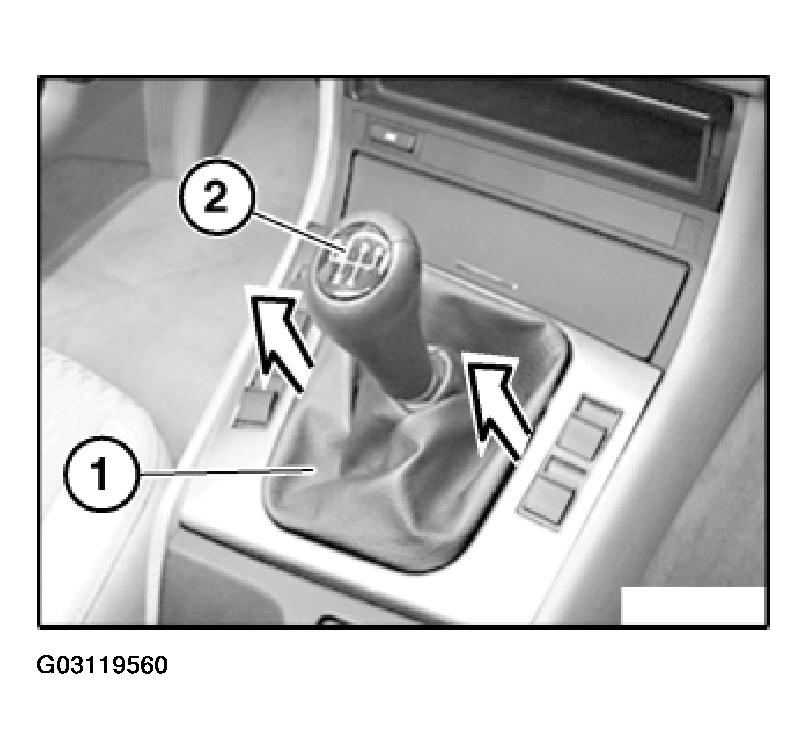

Unclip gaiter (1) sideways and force upwards over shift knob (2).

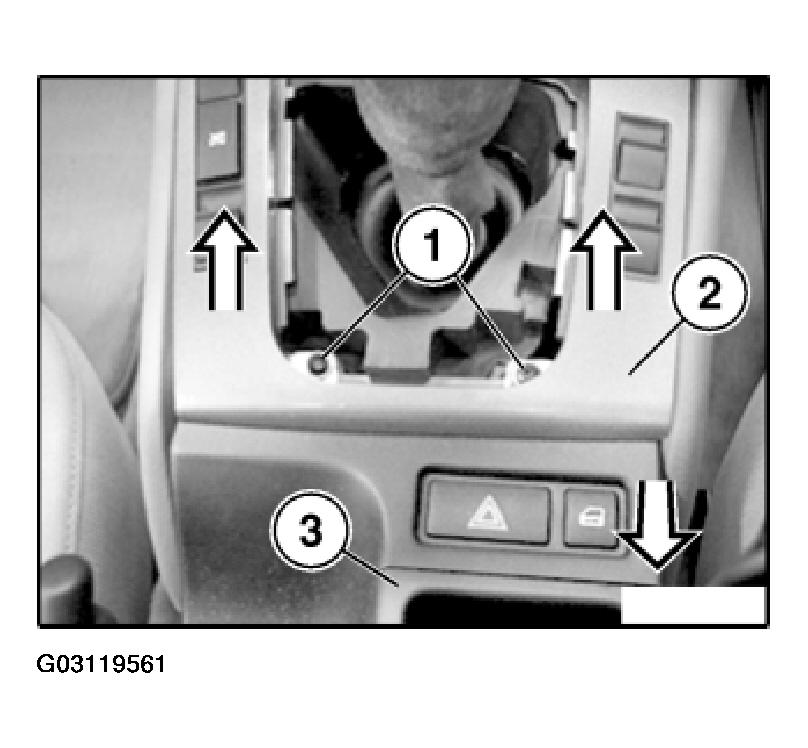

Loosen screws (1).
Raise base of storage tray (2).

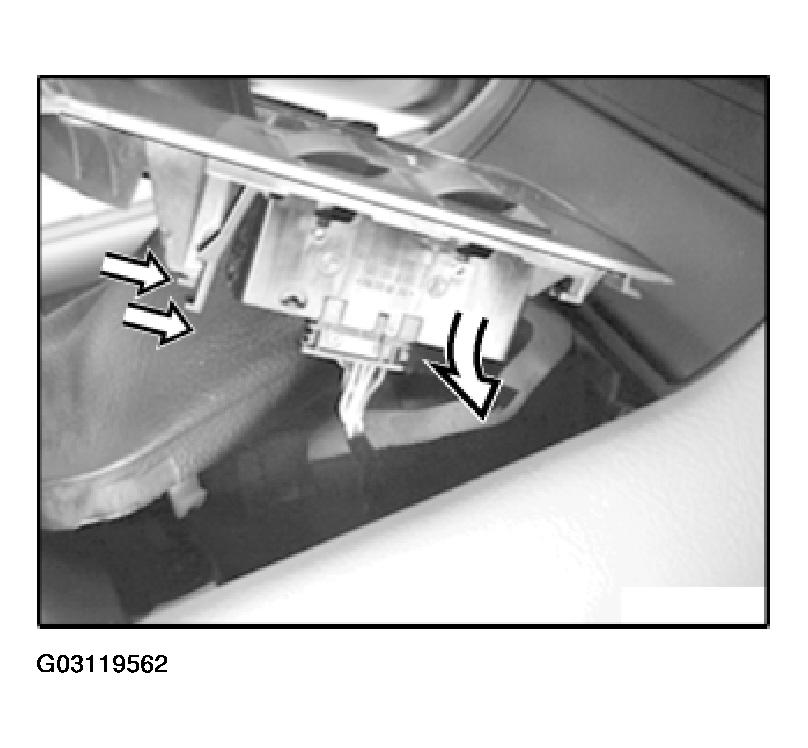

Unlock retaining clips and unclip rocker switch for window operation.

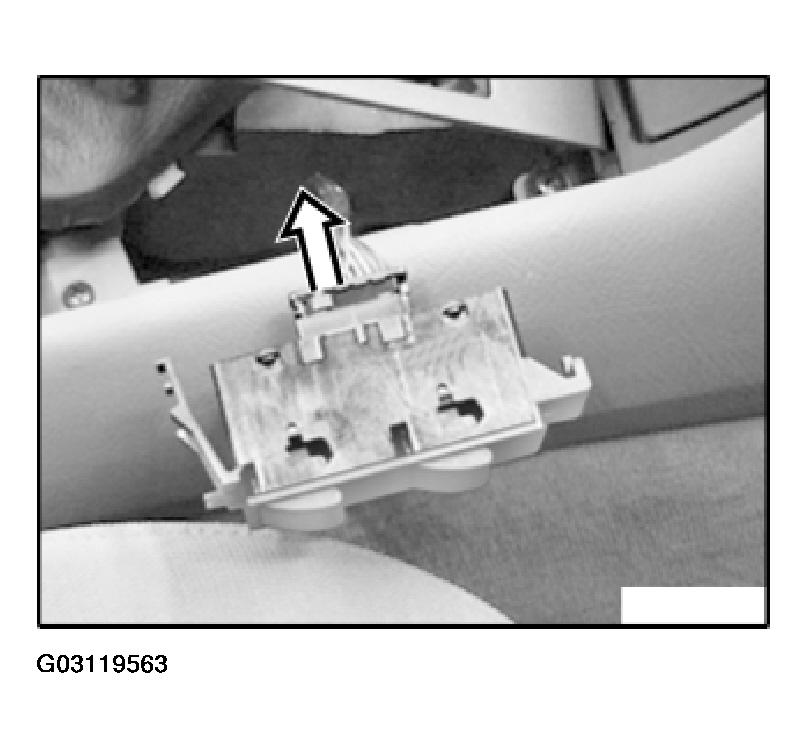

Disconnect plug.
