61 31 036 Removing and installing/replacing operating unit for light switch unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
- Unclip left trim, refer to 51 16 221 REPLACING A CLIPPED-IN TRIM (DECORATIVE STRIP ON PANEL FOR INSTRUMENT PANEL, FRONT OR REAR DOOR) .
- Remove left glovebox, refer to 51 16 350 REMOVING AND INSTALLING LEFT GLOVE BOX .
- Remove light switch unit, refer to 61 31 033 REMOVING AND INSTALLING LIGHT SWITCH UNIT .

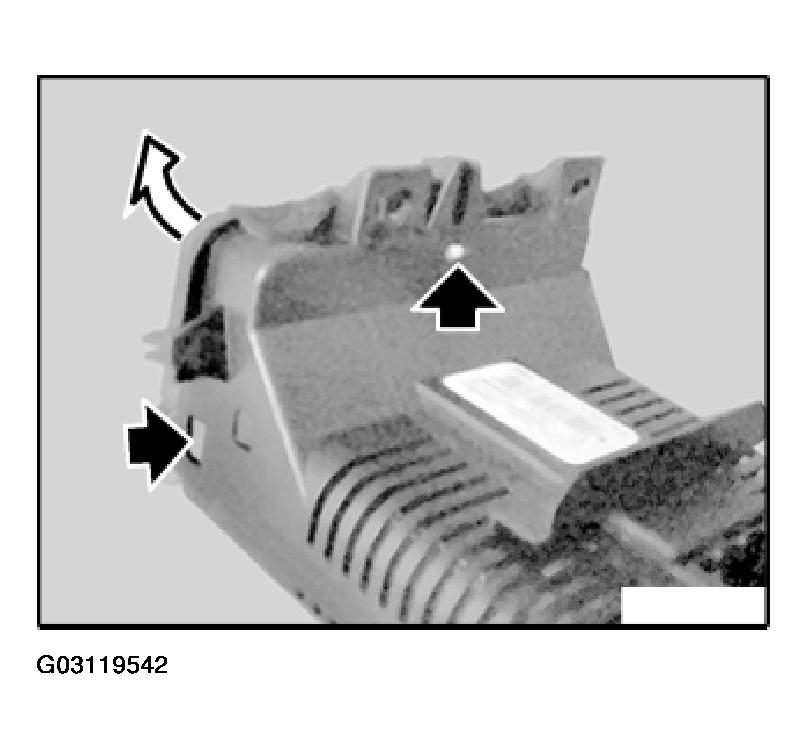

Unclip operating unit.
Pull off connectors.
