Cutting Optical Fibre To Length

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

Pull pin (1) in direction of arrow.

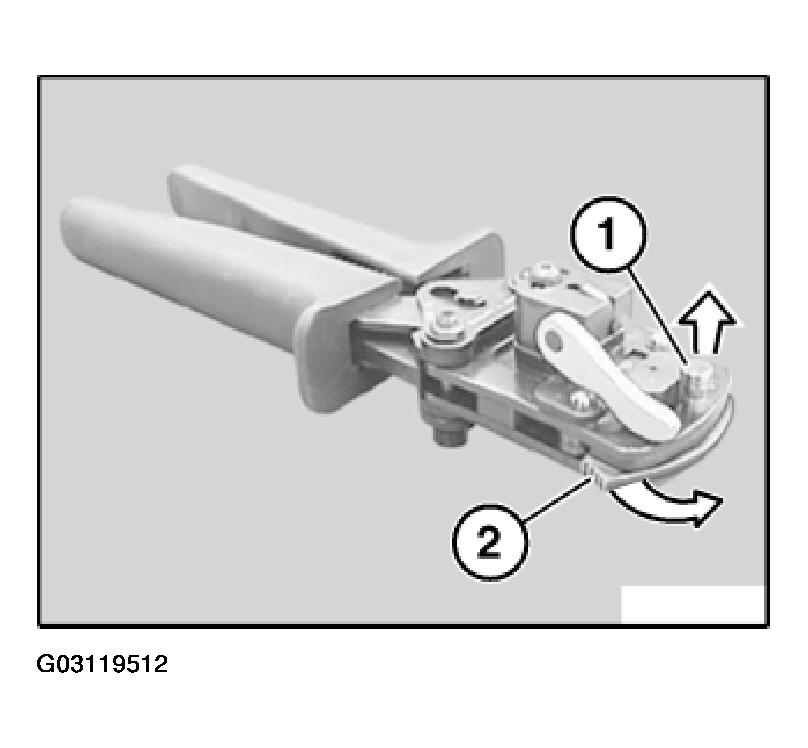

Fig 1: Folding Up Blade Retaining Link

G03119512

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up blade retaining link (2) in direction of arrow.

WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

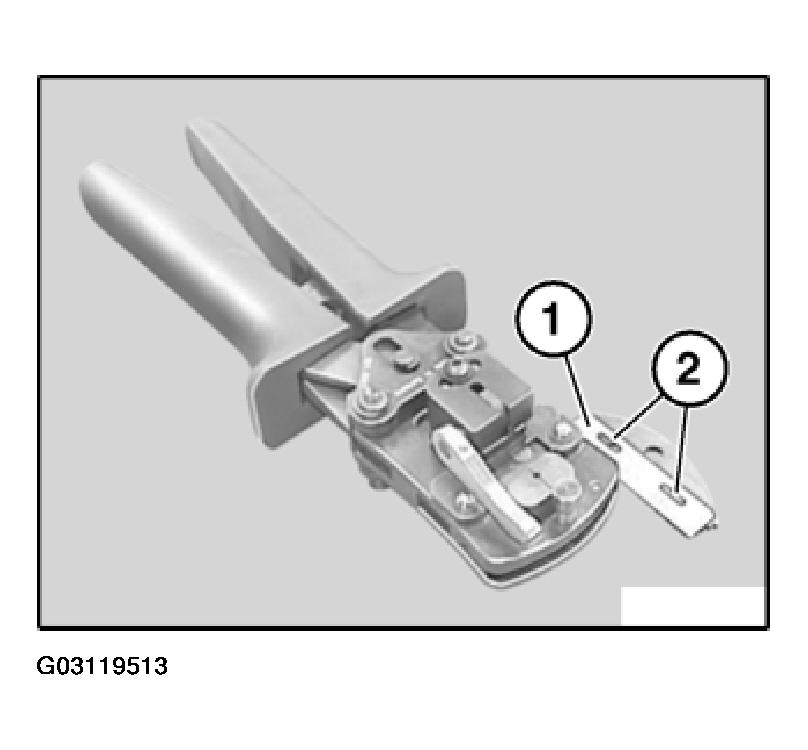

Fig 2: Removing Blade

G03119513

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure blade (1) is correctly seated on locating points (2).

Open pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

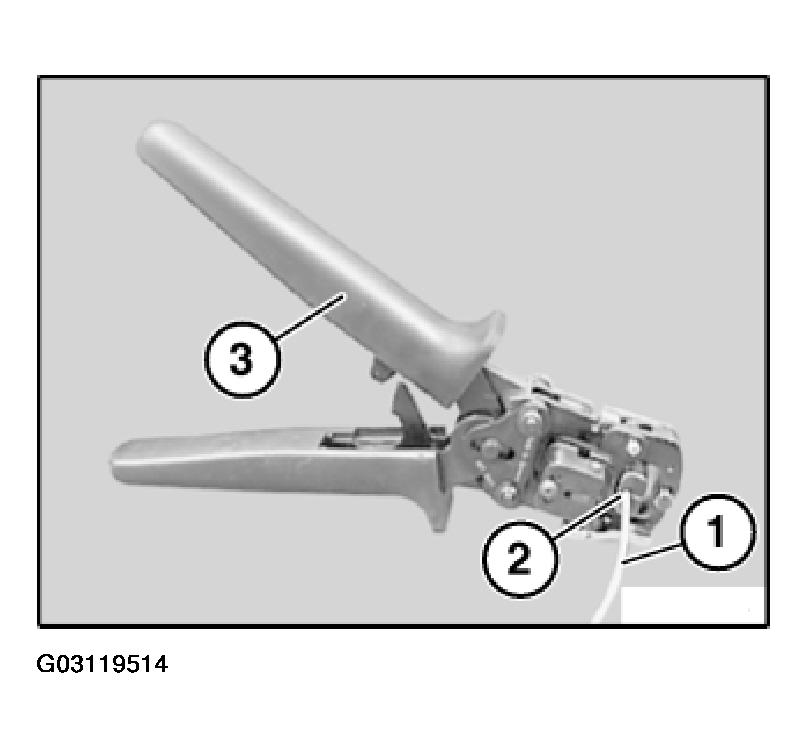

Fig 3: Sliding Optical Fibre Into Cutting Device

G03119514

Courtesy of BMW OF NORTH AMERICA, INC.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).
