51 16 ... Removing And Installing/Replacing Carrier In Storage Tray

Removing Insert (Compartment) In Carrier:

If necessary, open cover (1).

Press insert (2) upwards in center with hand and simultaneously remove insert (2).

Fig 1: Opening Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

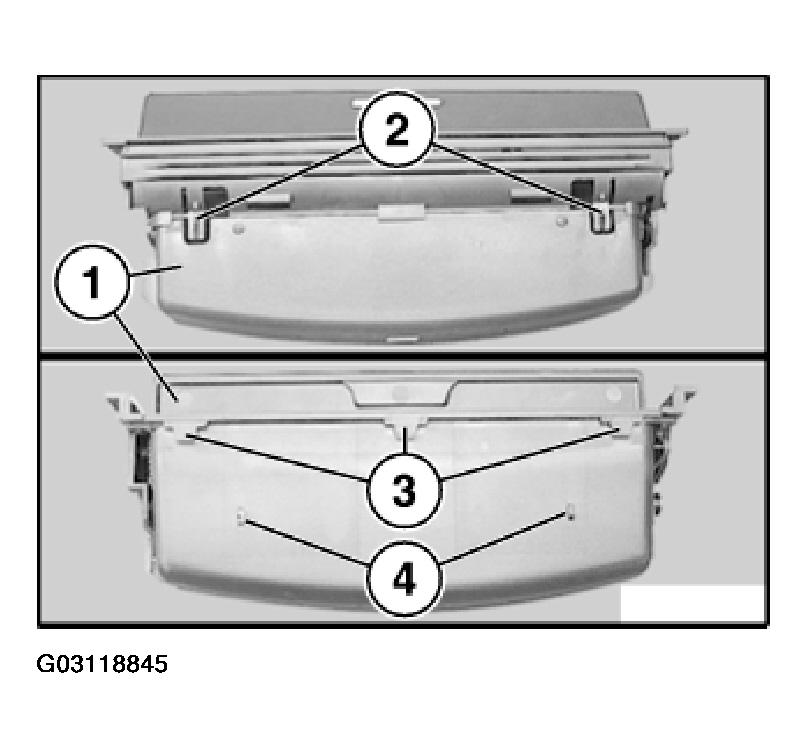

Following components on insert (1) must not be damaged:

• Catches (2), top.
• Guides (3), bottom.
• Catches (4), bottom.
  Fig 2: Identifying Catches And Guides

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

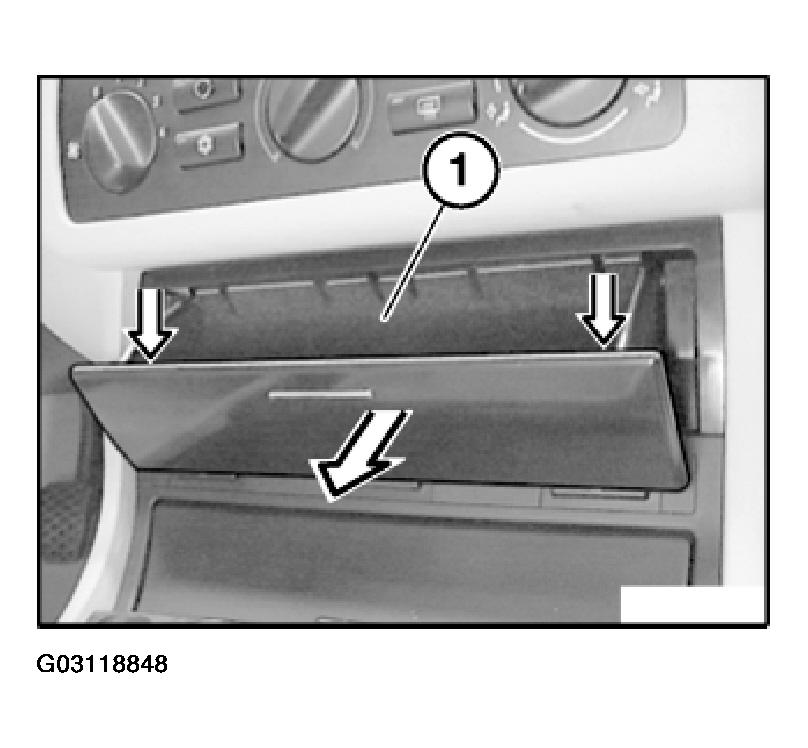

1. When installing, press insert (1) downwards in center.
   Fig 3: Identifying Cover

   Courtesy of BMW OF NORTH AMERICA, INC.

Removing Insert (Glasses Compartment) In Carrier:

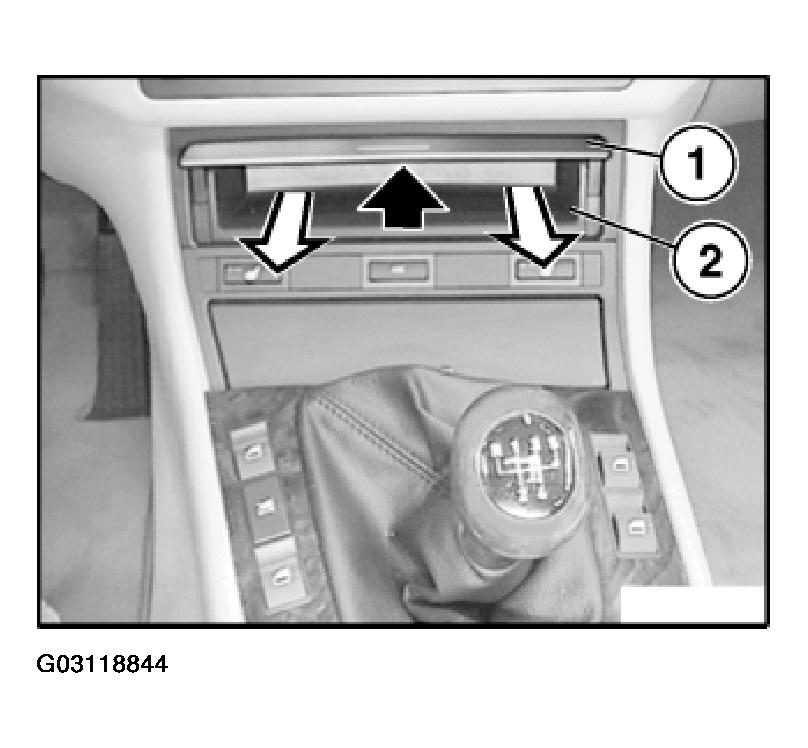

If necessary, open cover (1).

Press guide of cover (1) in middle with hand towards top and pull out glasses compartment (2) approx. 2 mm.

Fig 4: Identifying Guide Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

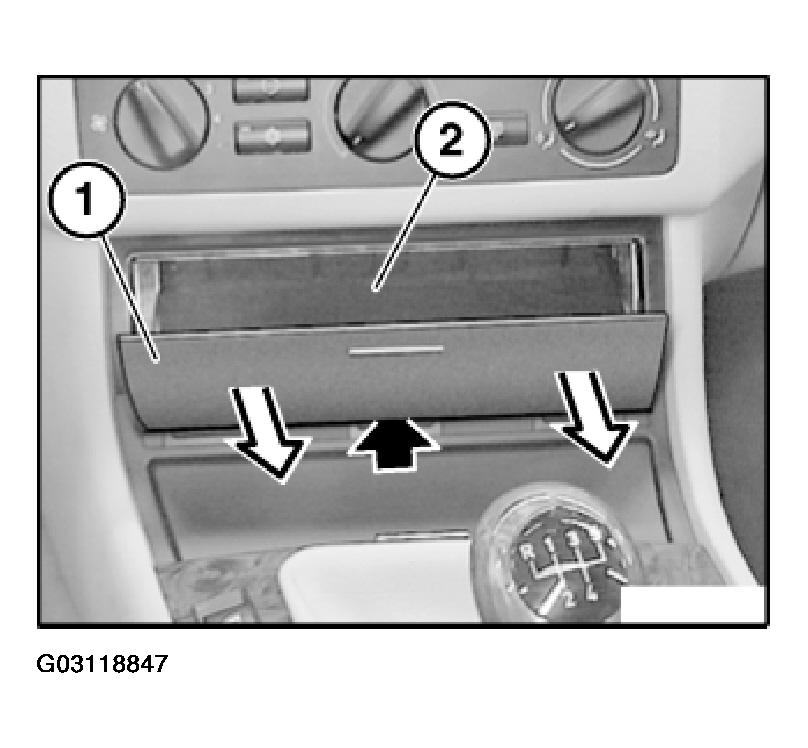

Press glasses compartment (1) at outside left/right downwards a little and pull out.

Fig 5: View Of Glasses Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

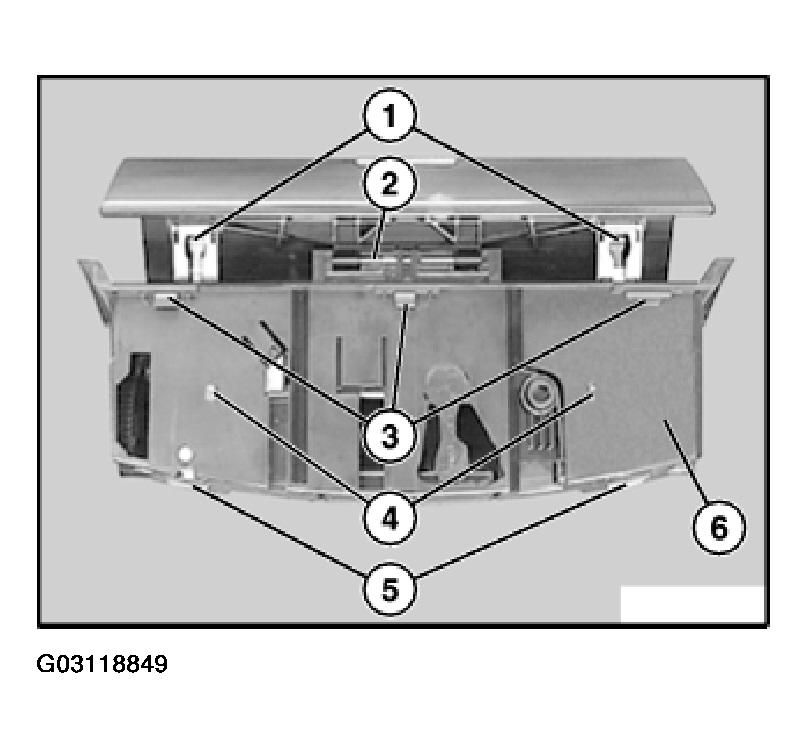

Following components on bottom of glasses compartment (6) must not be damaged:

• Hold-down elements (1).
• Guide (2).
• Guides (3).
• Catches (4).
• Contacts (5).
  Fig 6: Identifying Catches And Guide

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

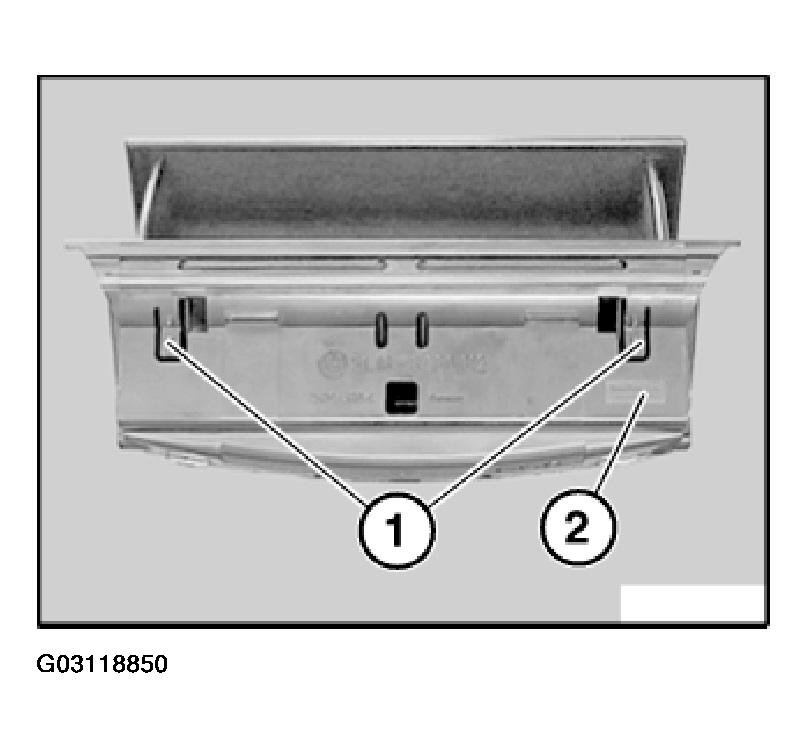

1. Catches (1) on top of glasses compartment (2) must not be damaged.
   Fig 7: Identifying Glasses Compartment

   Courtesy of BMW OF NORTH AMERICA, INC.

Removing carrier:

Remove finisher for storage tray, refer to REMOVING AND INSTALLING/REPLACING FINISHER FOR STORAGE TRAY  .

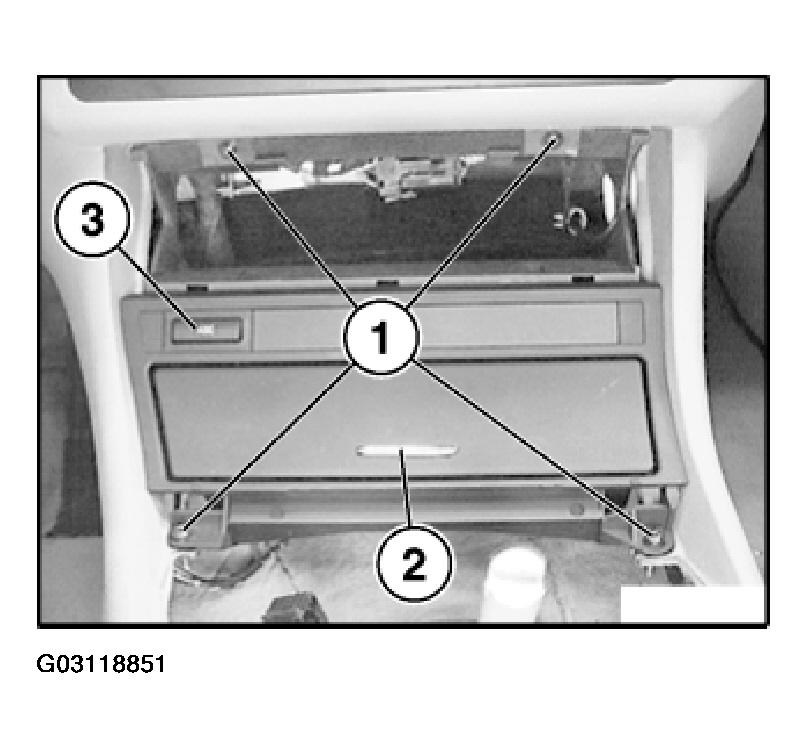

Release screws (1).

Fig 8: Removing Finisher For Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

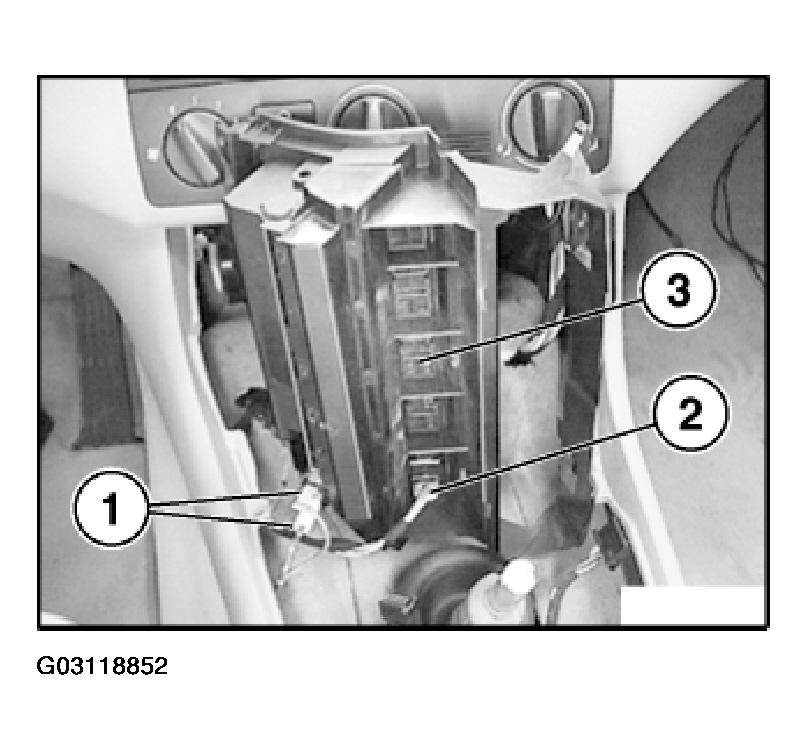

Disconnect plug connections (1) for cigarette lighter and (2) for ASC and remove carrier (3).

Fig 9: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
