61 31 382 Replacing Level Switch For Coolant

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Warning! Danger of scalding! Only perform this work after engine has cooled down.

Important! Do not damage connected water hoses. Reposition coolant expansion tank (2) as far as possible until coolant level switch forms the highest point. This will prevent coolant from escaping on opening. If necessary, catch escaping coolant and feed back in later.

Unscrew nuts (1). Pull coolant expansion tank (2) in direction of arrow out of grommet (3) underneath. Installation: Make sure coolant expansion tank (2) is correctly seated in grommet.

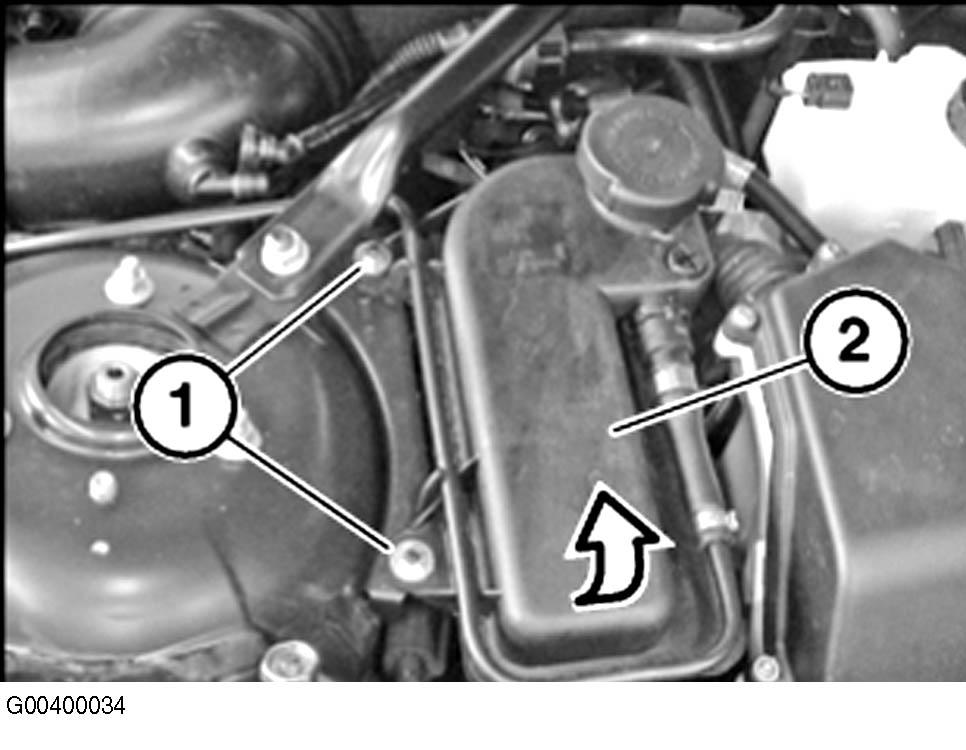

Fig 1: Pulling Coolant Expansion Tank In Direction Of Arrow Out Of Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from level switch (2). Turn level switch (2) in direction of arrow, pull downwards out of coolant expansion tank and remove.

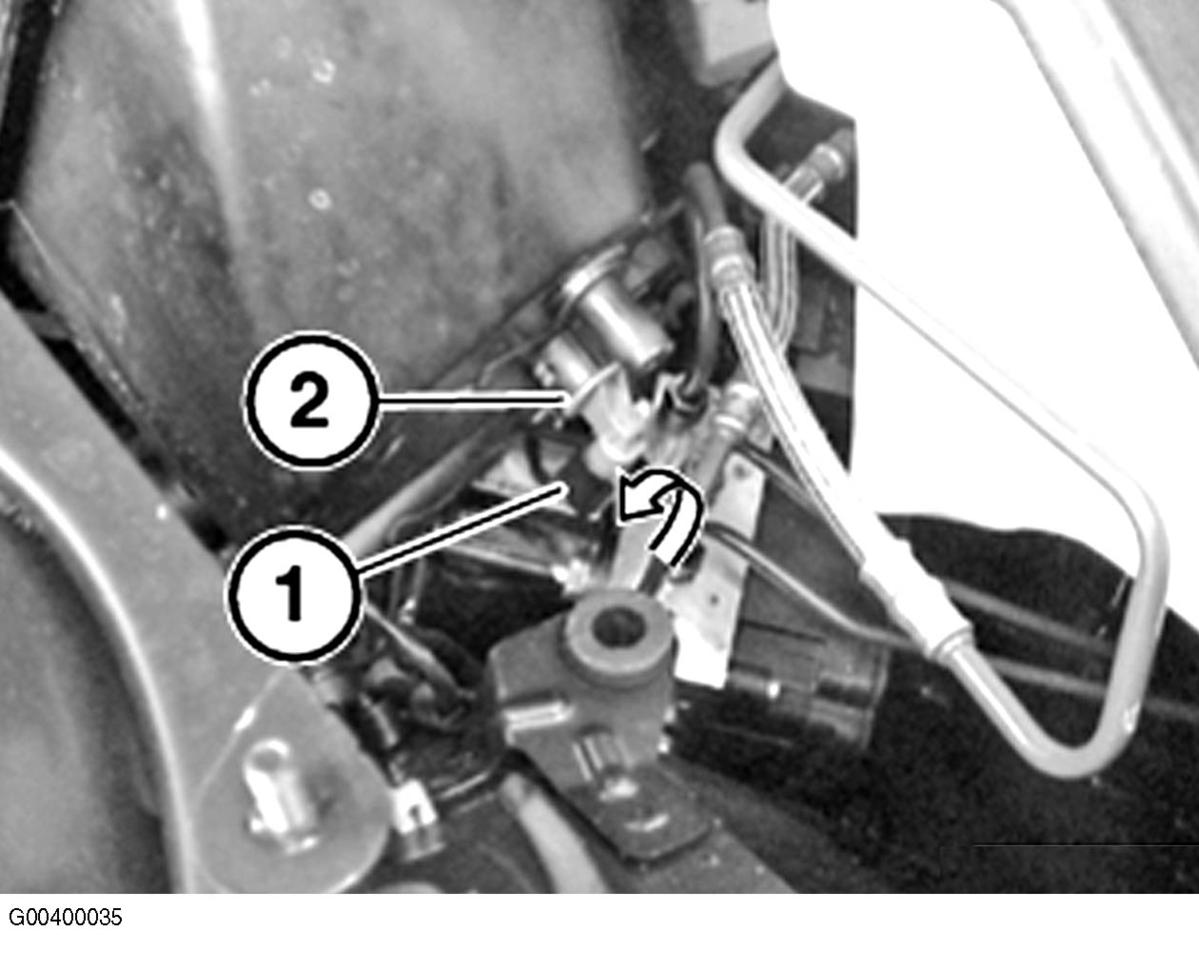

Fig 2: Disconnecting Plug Connection From Level Switch

Courtesy of BMW OF NORTH AMERICA, INC.
