61 35 622 Removing and installing/replacing general module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for instrument panel, bottom left . See 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL .

Release screws (1).

Remove general module (3) from instrument panel trim at bottom right (4).

Installation:

Make sure general module (3) is correctly seated in guides (2).

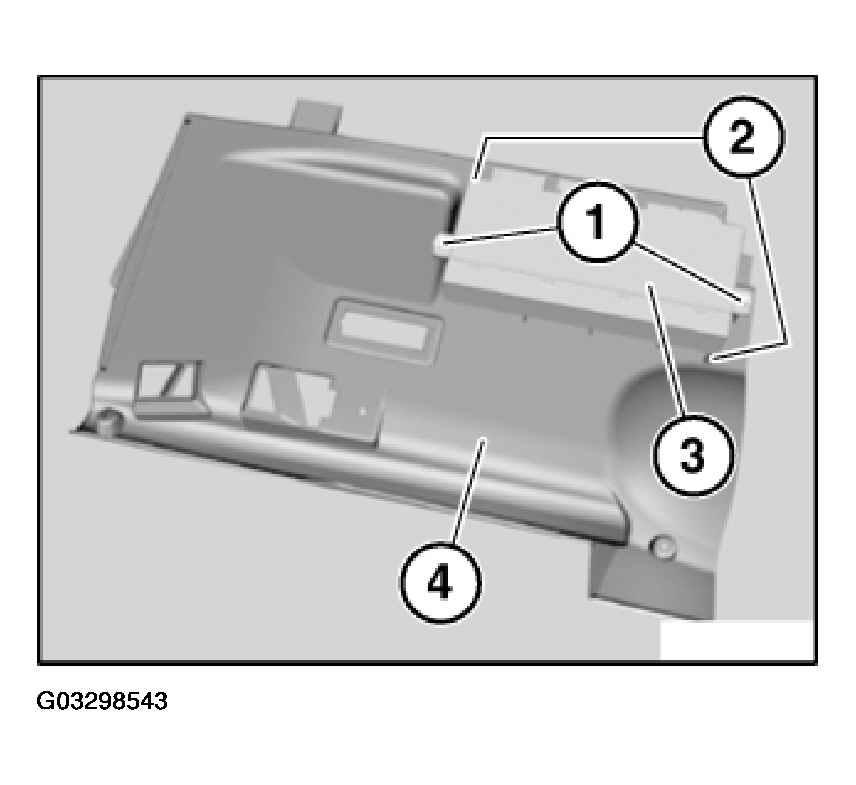

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
If necessary, car & key memory
CD "CIP"

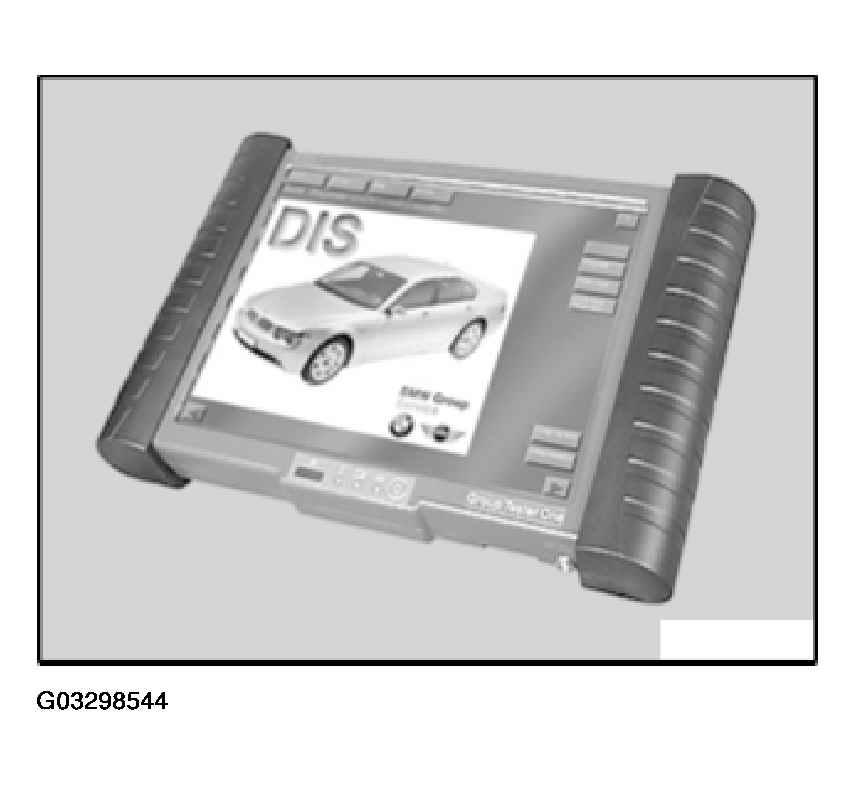

Fig 2: Identifying Carry Out Coding/Programming

Courtesy of BMW OF NORTH AMERICA, INC.
