61 35 177 Removing and installing (replacing) rain/light sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

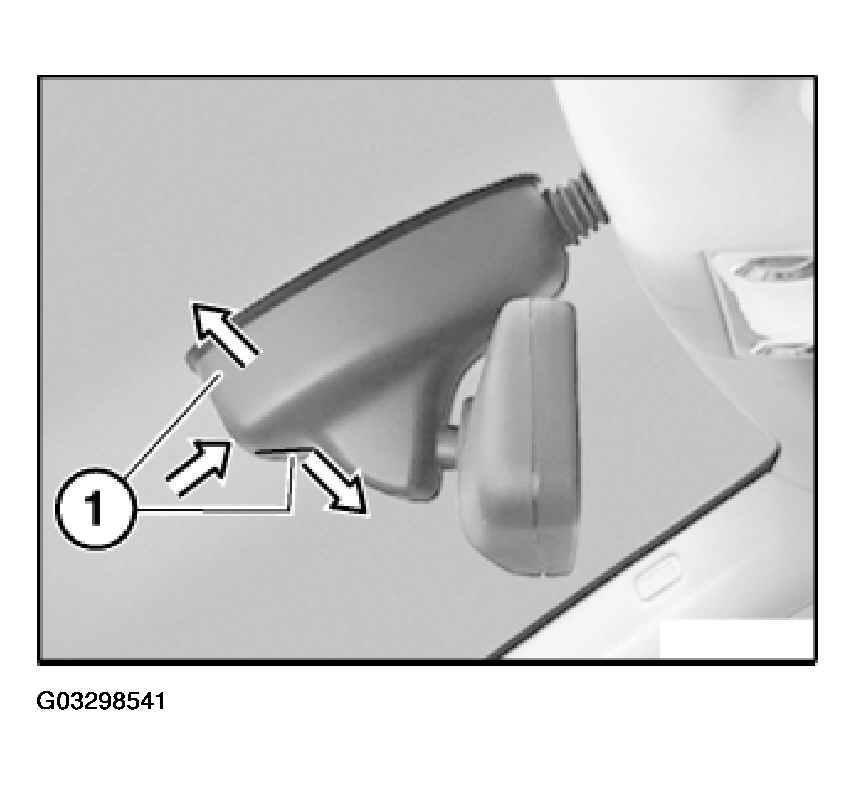

Fig 1: Removing Feed Out Two-Part Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

Installation:

Do not damage optical element covered by rain/light sensor (2).

If necessary, use BMW scan tool to initialize rain/light sensor.

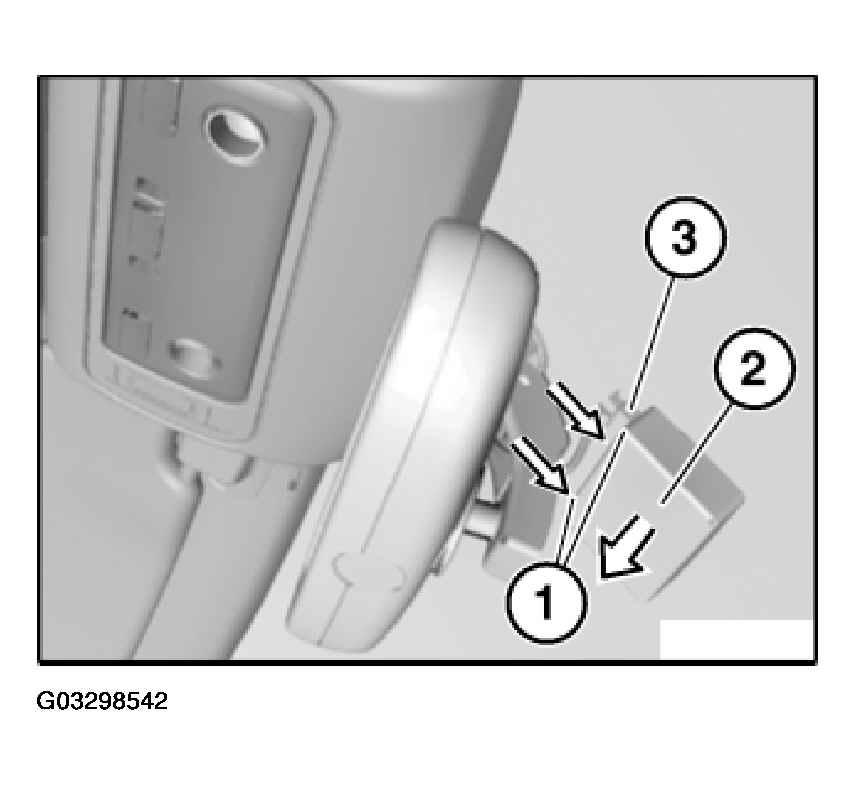

Fig 2: Pressing Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
