Removing Radiator Cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Removing radiator cover

NOTE: Do not release screws (1). (They are bonded to the cover (2)).

Release screws along line.

Removing radiator cover (2).

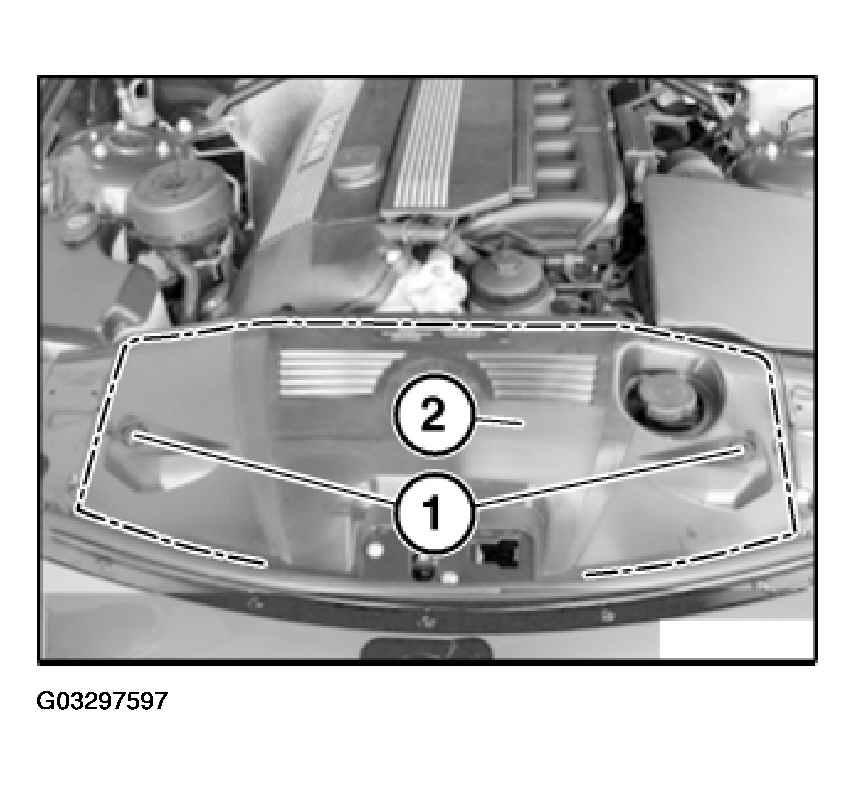

Fig 1: Removing Radiator Cover
G03297597Courtesy of BMW OF NORTH AMERICA, INC.
