Steering Column: Removal

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering wheel. See STEERING WHEEL .
  2. Remove lower steering column trim. See STEERING COLUMN LOWER TRIM .
  3. Remove upper section of steering column trim. See STEERING COLUMN UPPER TRIM .
  4. Remove trim panel for pedal assembly. See TRIM PANEL FOR PEDAL ASSEMBLY .
  5. Remove lower section of steering spindle. See STEERING SPINDLE LOWER SECTION .
  6. Unfasten screws. Disconnect all plugs and remove switch block. Disconnect plug from ring antenna. See Fig 1.

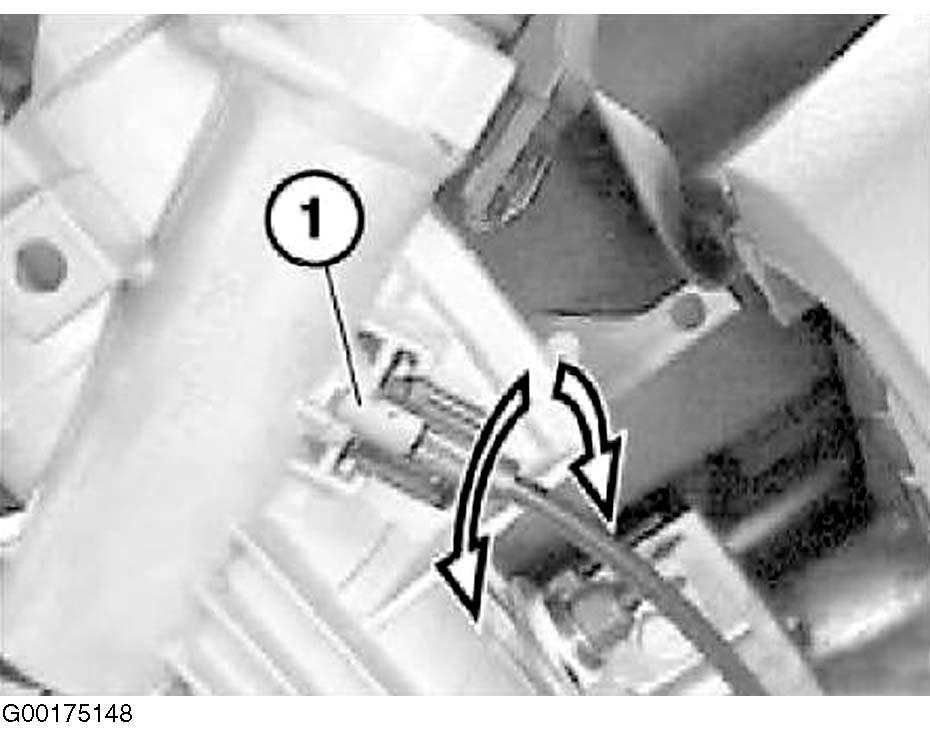

  7. Disconnect interlock cable if necessary. See Figure.
  8. Unlock and remove connector. Detach wiring harness from cable duct. See Fig 2.
  9. Release shear screw (1) (e.g. mill off or drill out). Release screw (2). See Fig 3.
  10. Unfasten screws. Remove steering column. See Fig 4.
  11. If replacing steering column, remove locking cylinder and install in new steering column. See STEERING LOCK CYLINDER .
  12. Remove steering angle sensor and fit on new steering column if necessary. See STEERING ANGLE SENSOR .

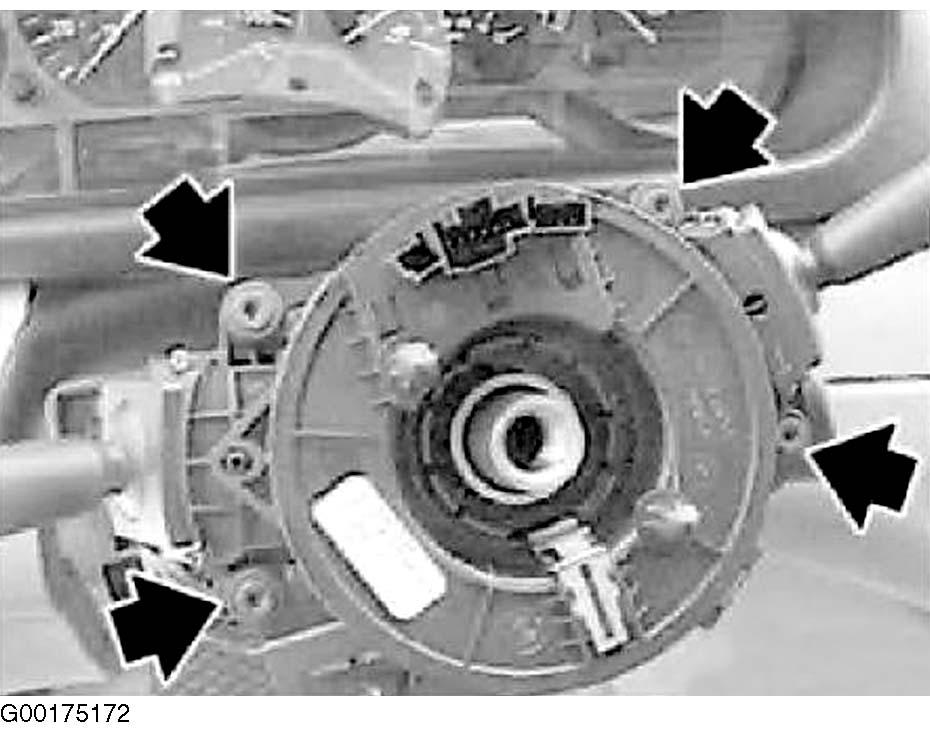

Fig 1: Removing Switch Block
G00175172Courtesy of BMW OF NORTH AMERICA, INC.

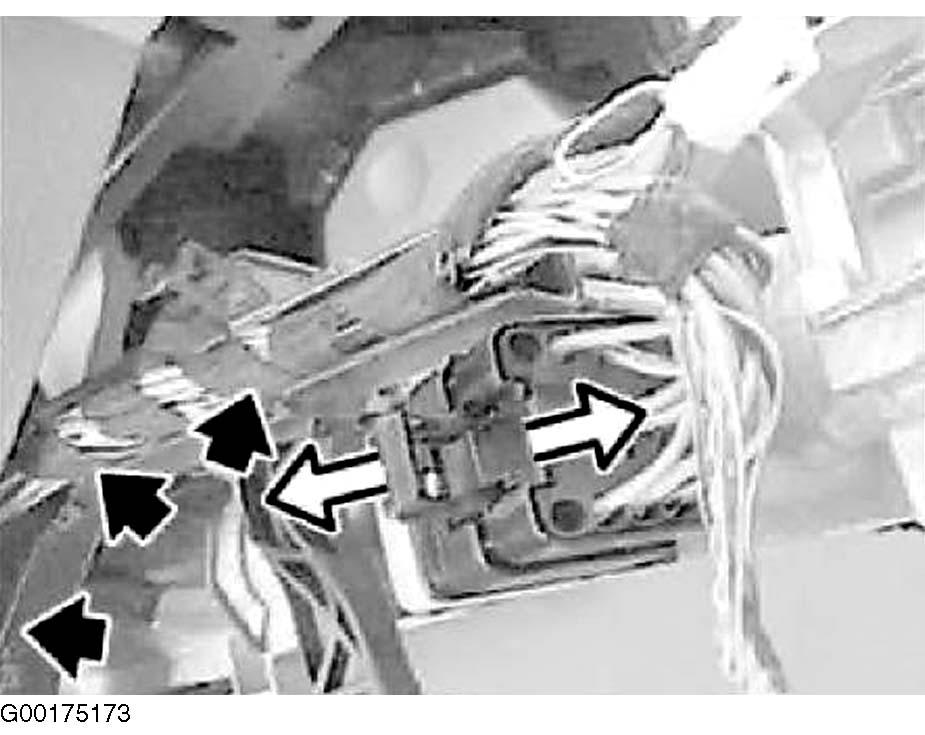

Fig 2: Detaching Wiring Harness
G00175173Courtesy of BMW OF NORTH AMERICA, INC.

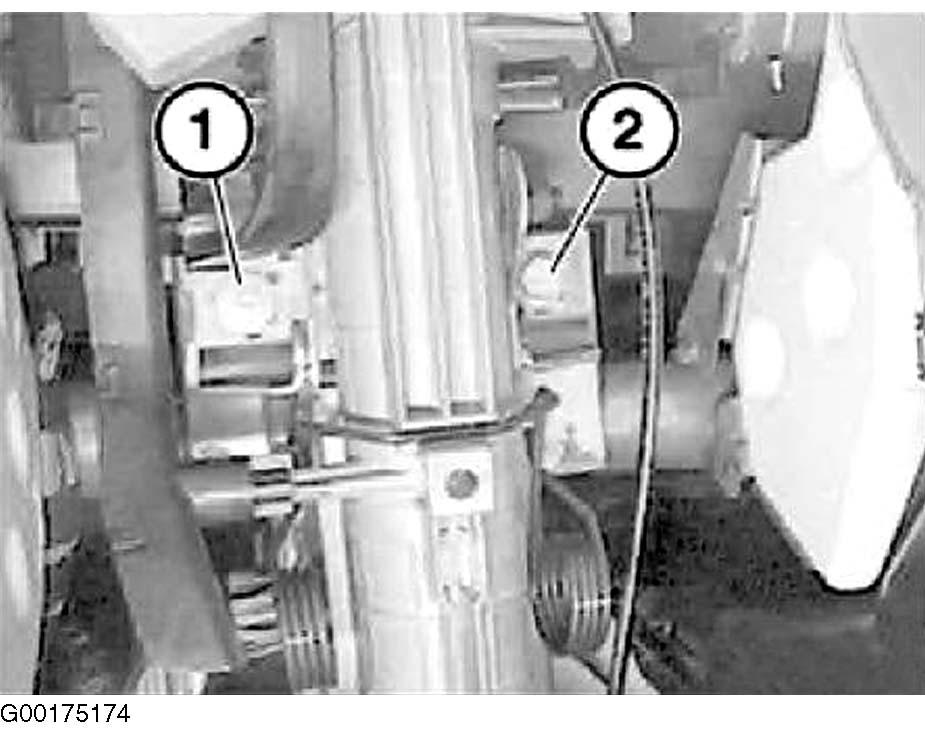

Fig 3: Locating Shear Screw
G00175174Courtesy of BMW OF NORTH AMERICA, INC.

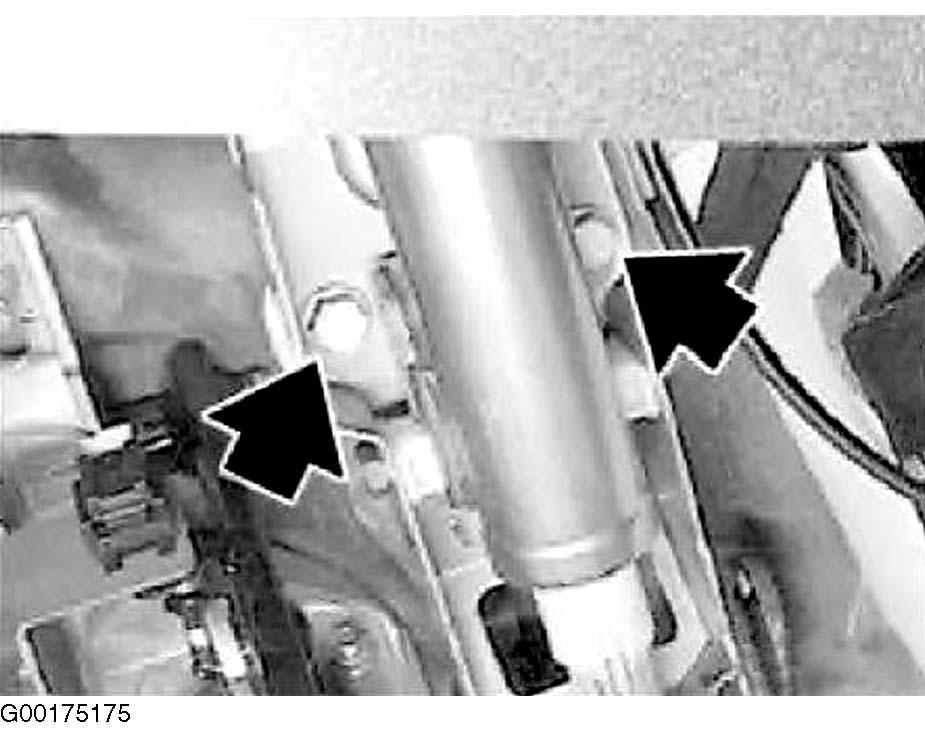

Fig 4: Removing Steering Column
