Relays & Solenoids: Relays

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2005 BMW 760i, 2004 BMW 760Li, 2003 BMW Z8, 2003 BMW Z4, and 2003 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

For fuel pump relay, see FUEL DELIVERY under FUEL SYSTEM. For relay location or location of relay box, see RELAY LOCATION table. See Fig 1-Fig 26 .

RELAY LOCATION

Application		Location
X5
DME Relay		Right Rear Corner Of Engine Compartment, Next To DME
Fuel Pump Relay		Behind Glovebox
Z4
Relay/Electronics Box		Left Rear Corner Of Engine Compartment
Fuel Pump Relay		Behind Glovebox
Z8
DME Relay		Right Rear Corner Of Engine Compartment, Next To DME
Fuel Pump Relay		In Right Rear Of Storage Compartment
3-Series (Z3)
DME Relay		Right Rear Corner Of Engine Compartment, Next To DME
Fuel Pump Relay		Under Left Side Of Instrument Panel, Next To Kick Panel
3-Series (E46)
DME Relay		Left Rear Corner Of Engine Compartment, In Relay/DME Box
Fuel Pump Relay		Behind Glove Box
5-Series
DME Relay		Right Rear Corner Of Engine Compartment, Next To DME
Fuel Pump Relay		Behind Glove Box, Behind Fuse Box
7-Series
Relay/Electronics Box		In Engine Compartment.

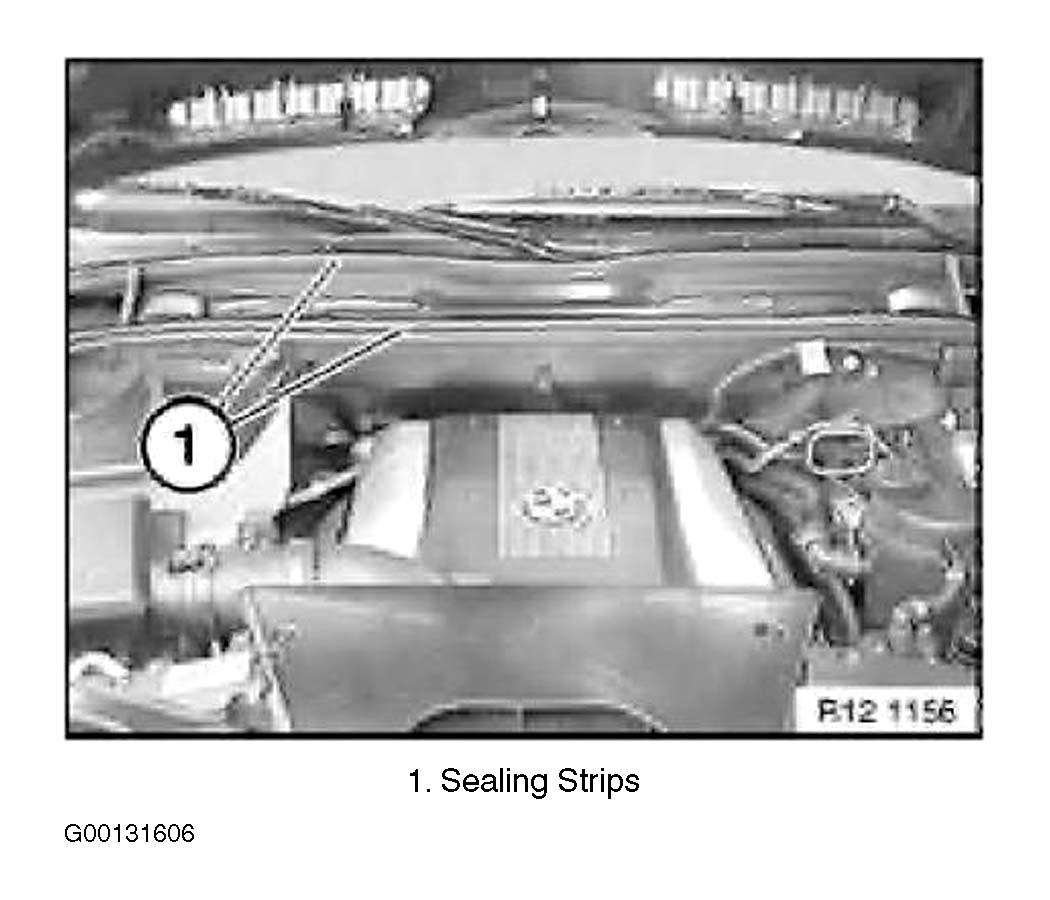

Fig 1: Locating DME Relay; Removing Sealing Strips (X5)

G00131606

Courtesy of BMW OF NORTH AMERICA, INC.

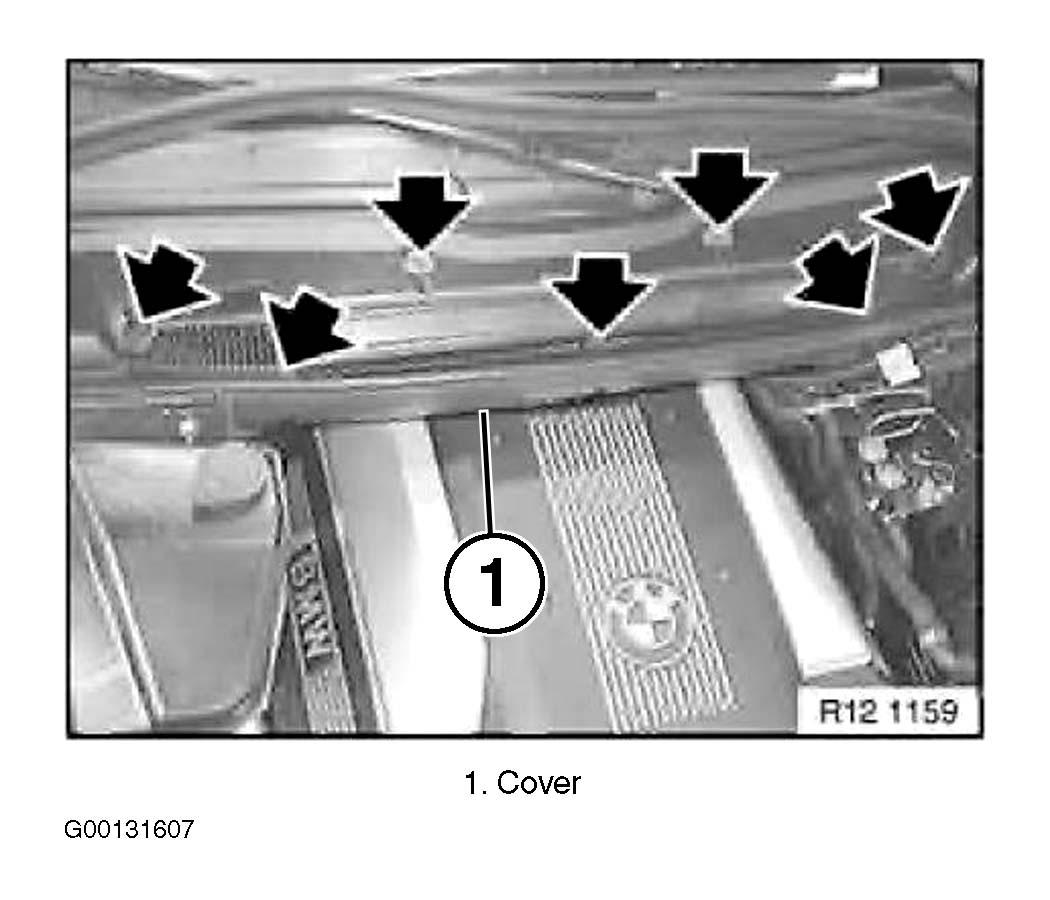

Fig 2: Locating DME Relay; Removing Cover (X5)

G00131607

Courtesy of BMW OF NORTH AMERICA, INC.

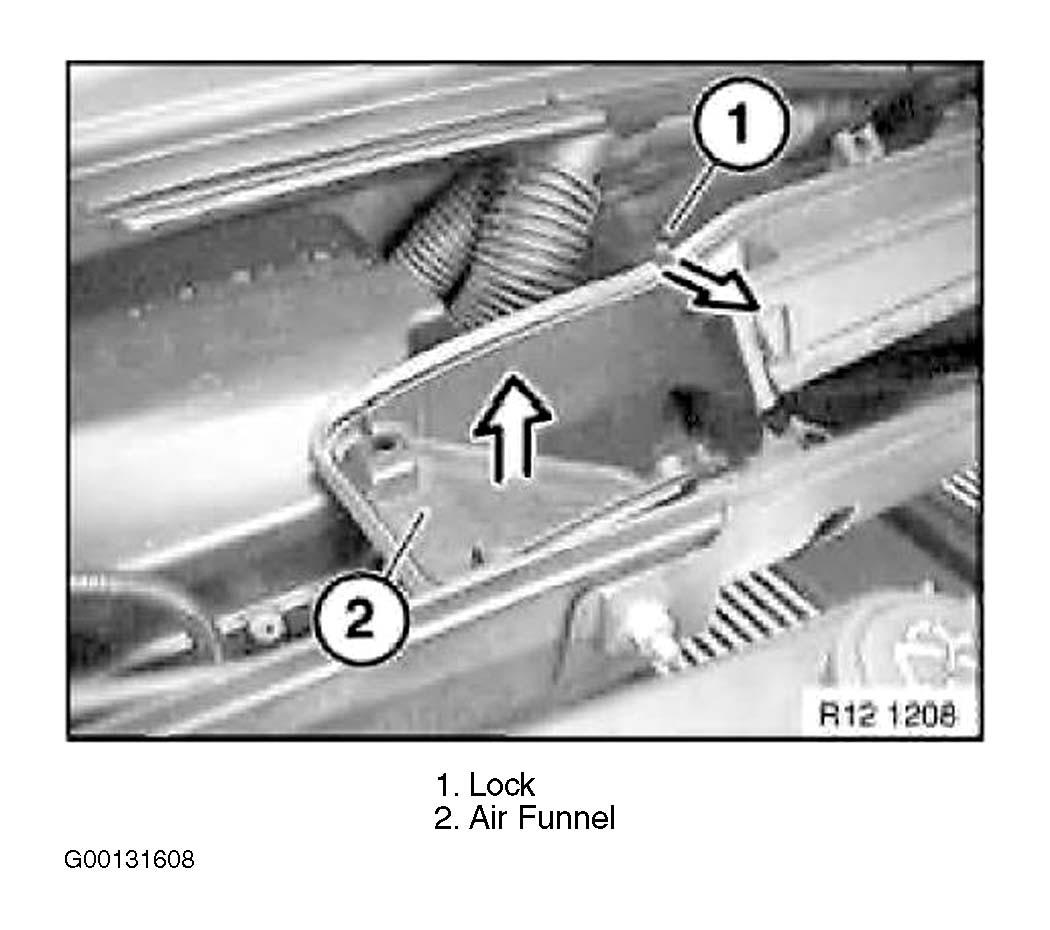

Fig 3: Locating DME Relay; Removing Air Funnel (X5)

G00131608

Courtesy of BMW OF NORTH AMERICA, INC.

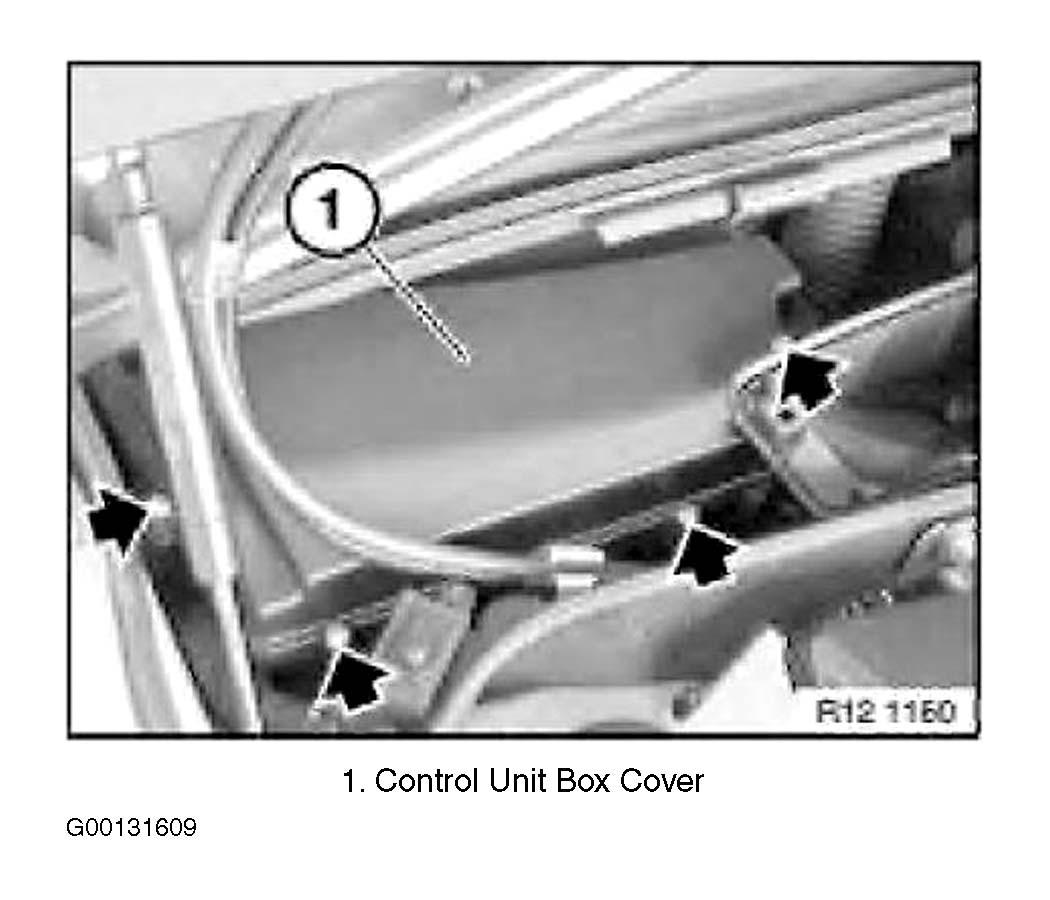

Fig 4: Locating DME Relay; Removing Control Unit Box Cover (X5)

G00131609

Courtesy of BMW OF NORTH AMERICA, INC.

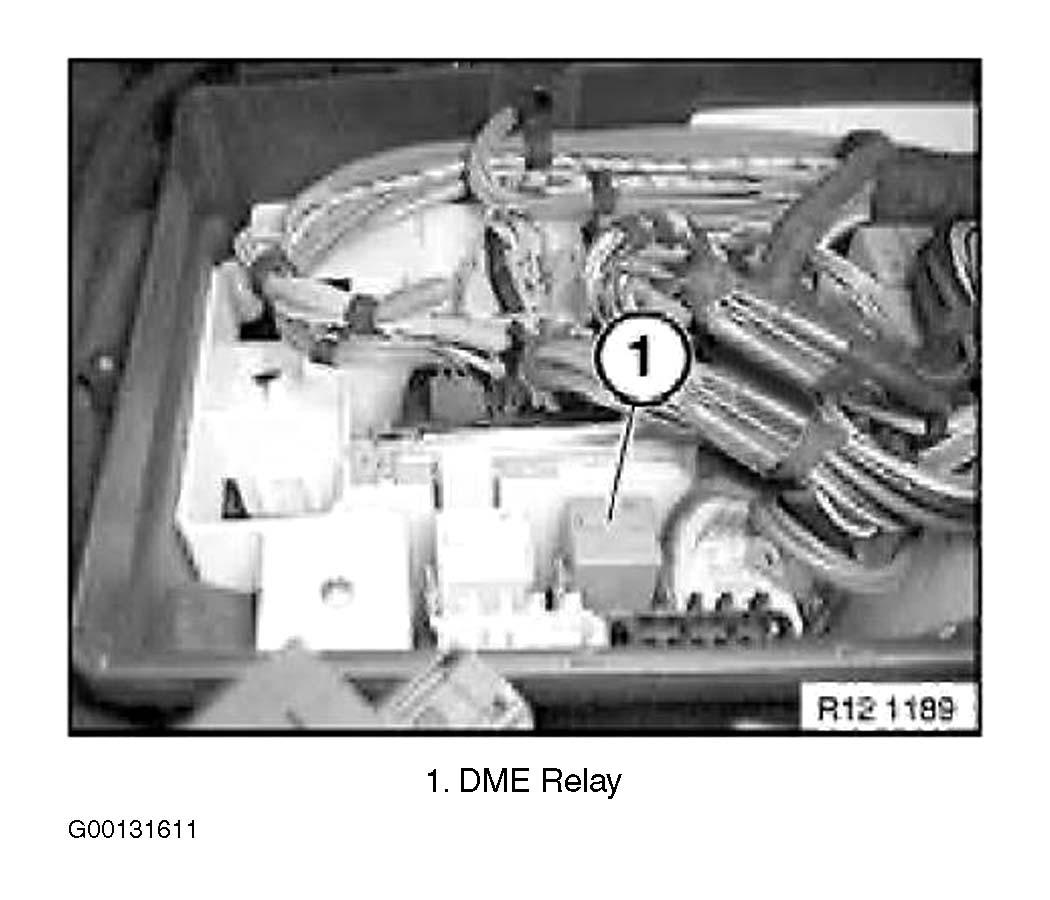

Fig 5: Locating DME Relay In Relay/Fuse Box (X5)

G00131611

Courtesy of BMW OF NORTH AMERICA, INC.

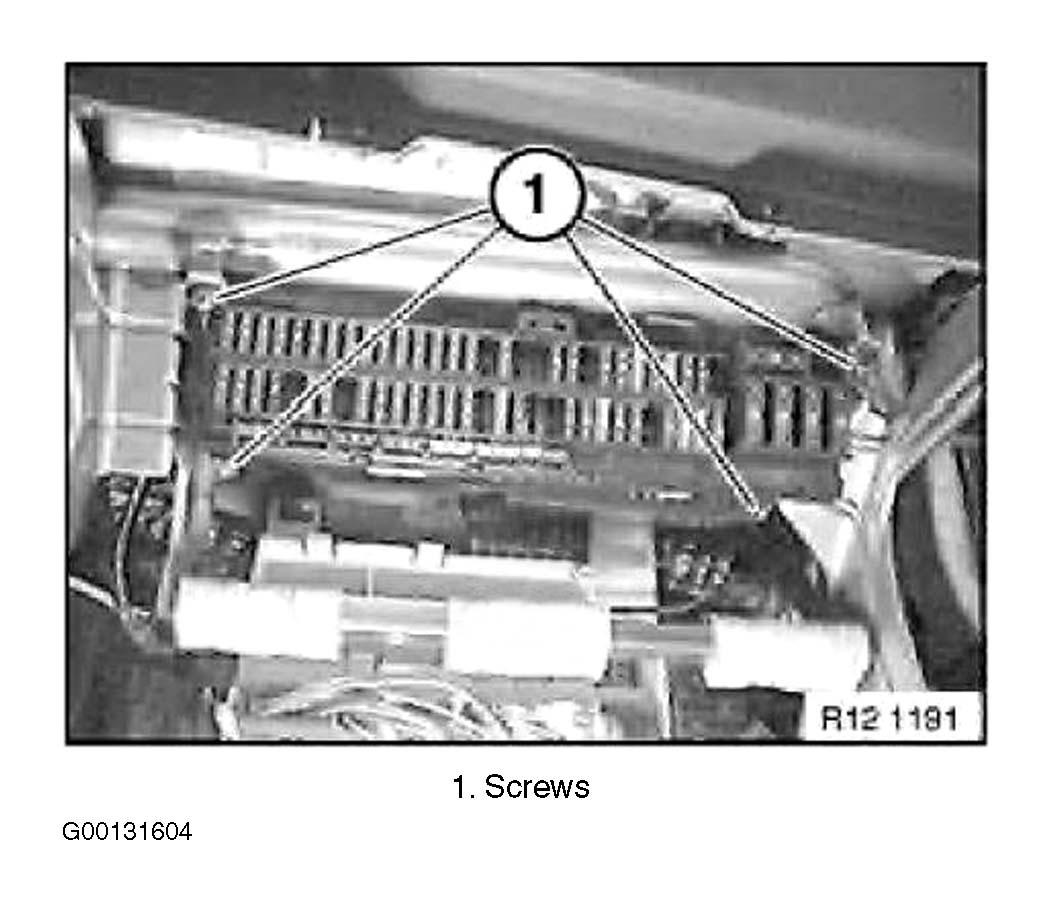

Fig 6: Locating Fuel Pump Relay; Removing Fuse Box (X5)

G00131604

Courtesy of BMW OF NORTH AMERICA, INC.

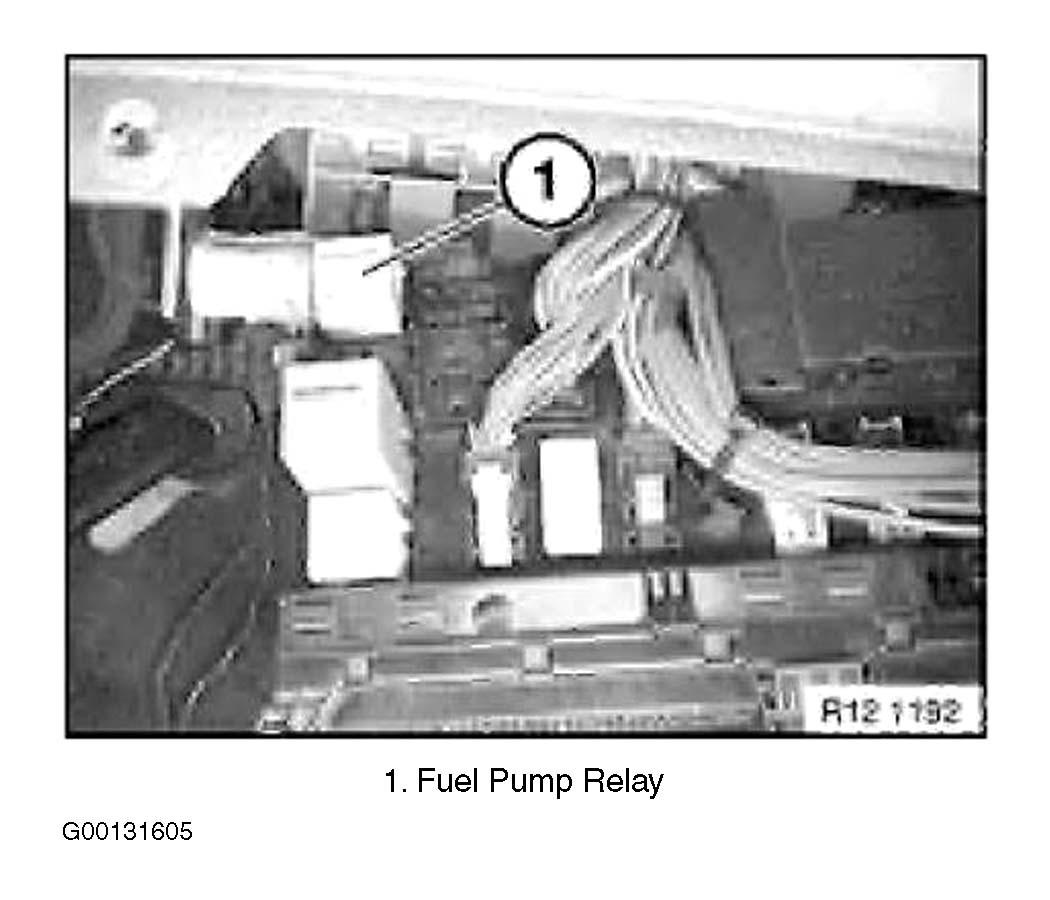

Fig 7: Locating Fuel Pump Relay Under Fuse Box (X5)

G00131605

Courtesy of BMW OF NORTH AMERICA, INC.

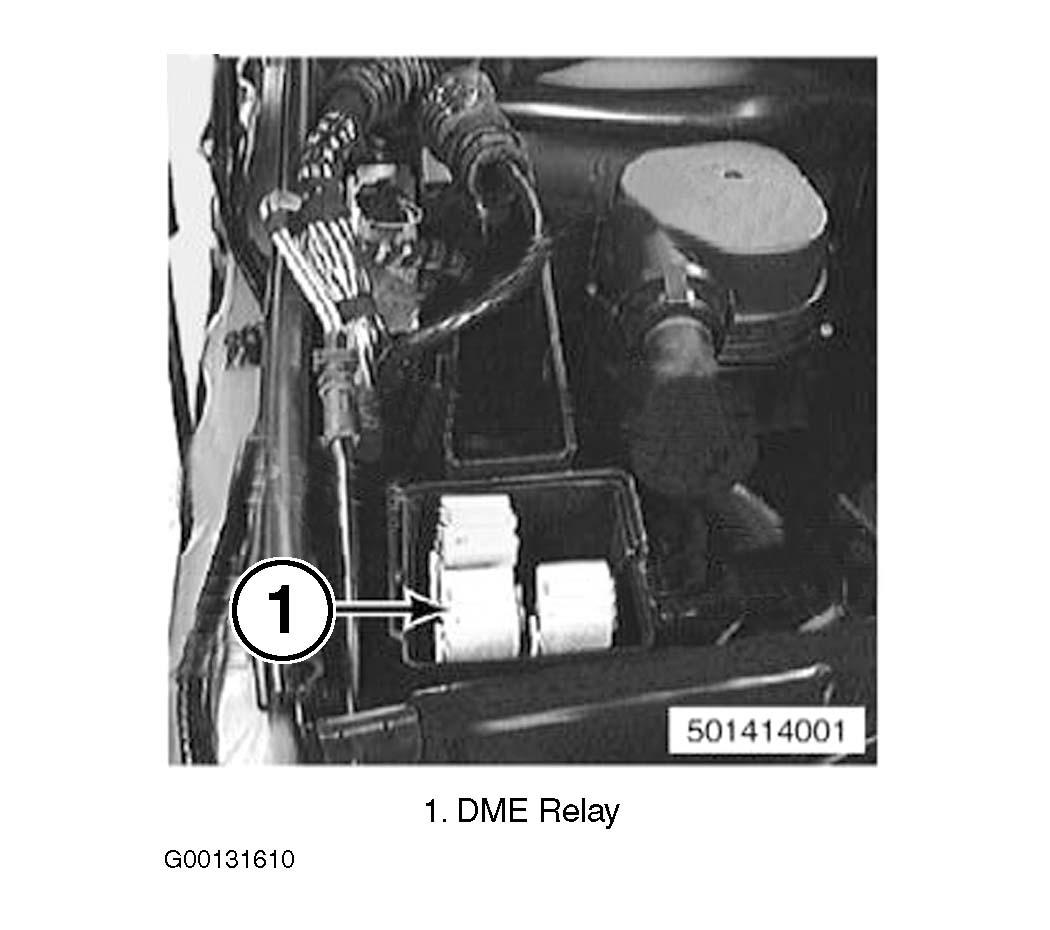

Fig 8: Locating DME Relay (Z3)

G00131610

Courtesy of BMW OF NORTH AMERICA, INC.

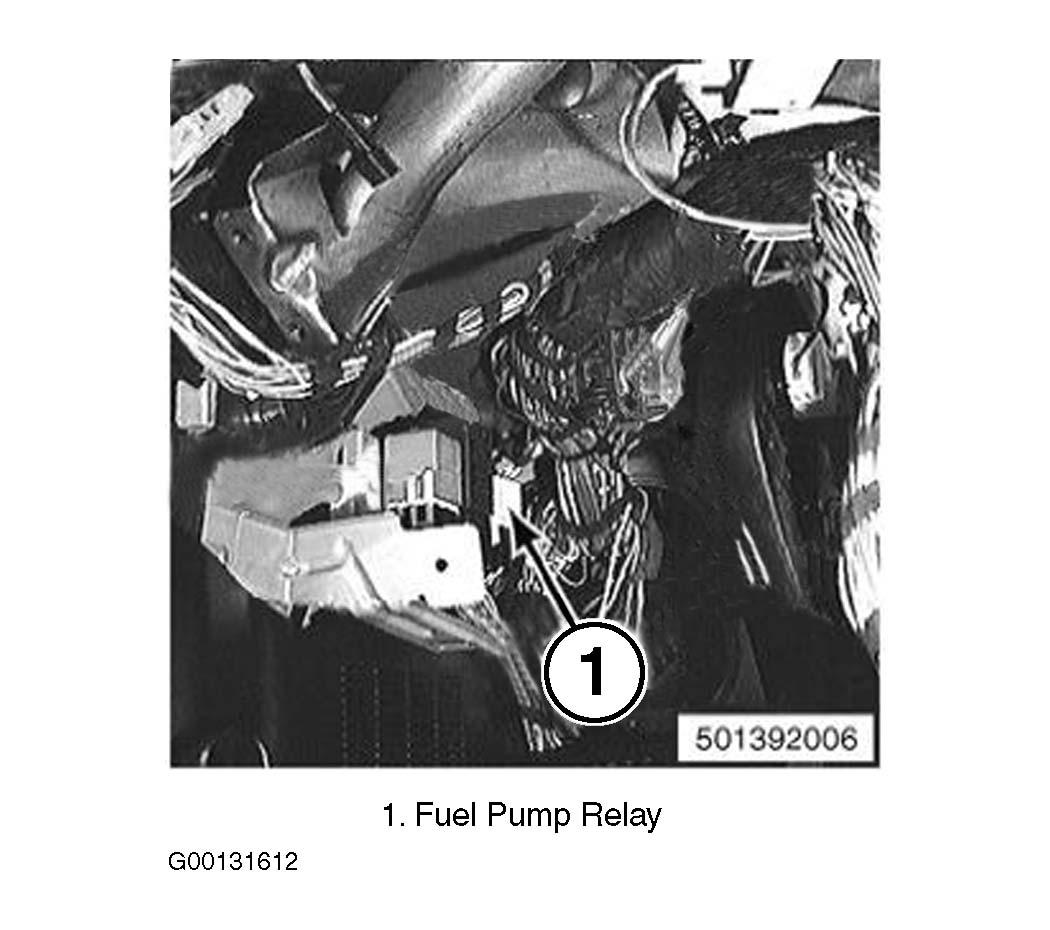

Fig 9: Locating Fuel Pump Relay (Z3)

G00131612

Courtesy of BMW OF NORTH AMERICA, INC.

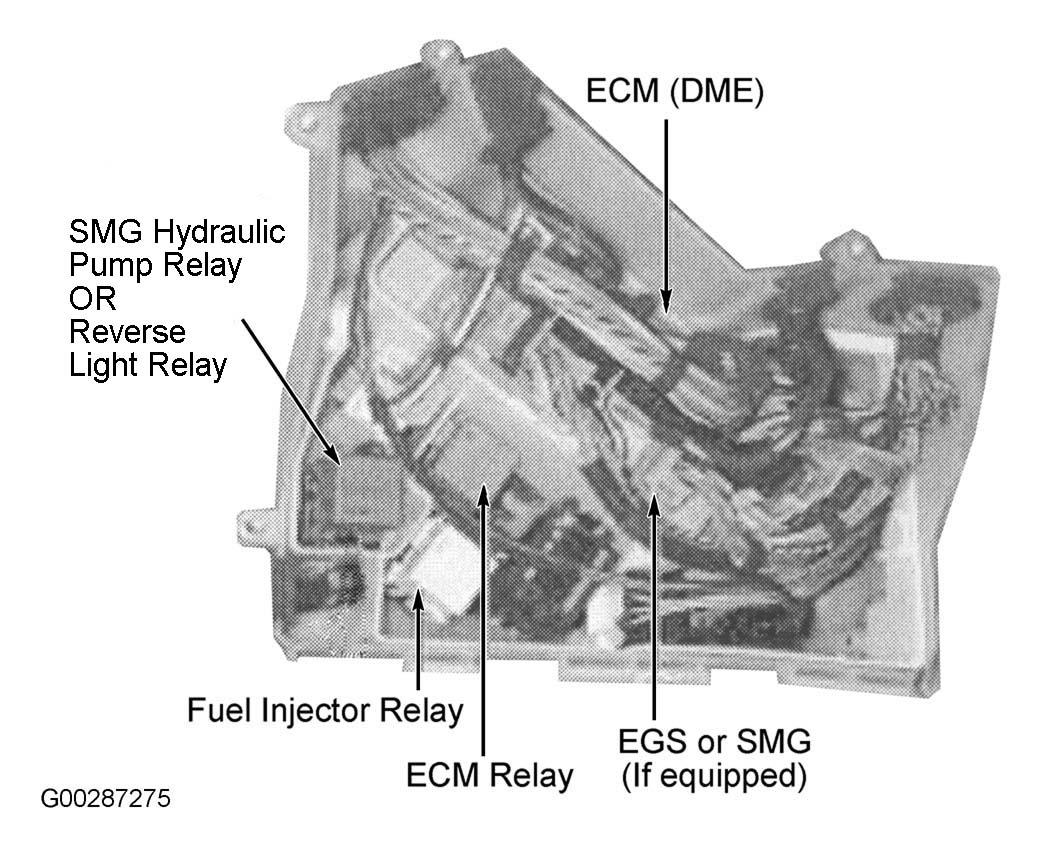

Fig 10: Identifying Electronics Box (Z4)

G00287275

Courtesy of BMW OF NORTH AMERICA, INC.

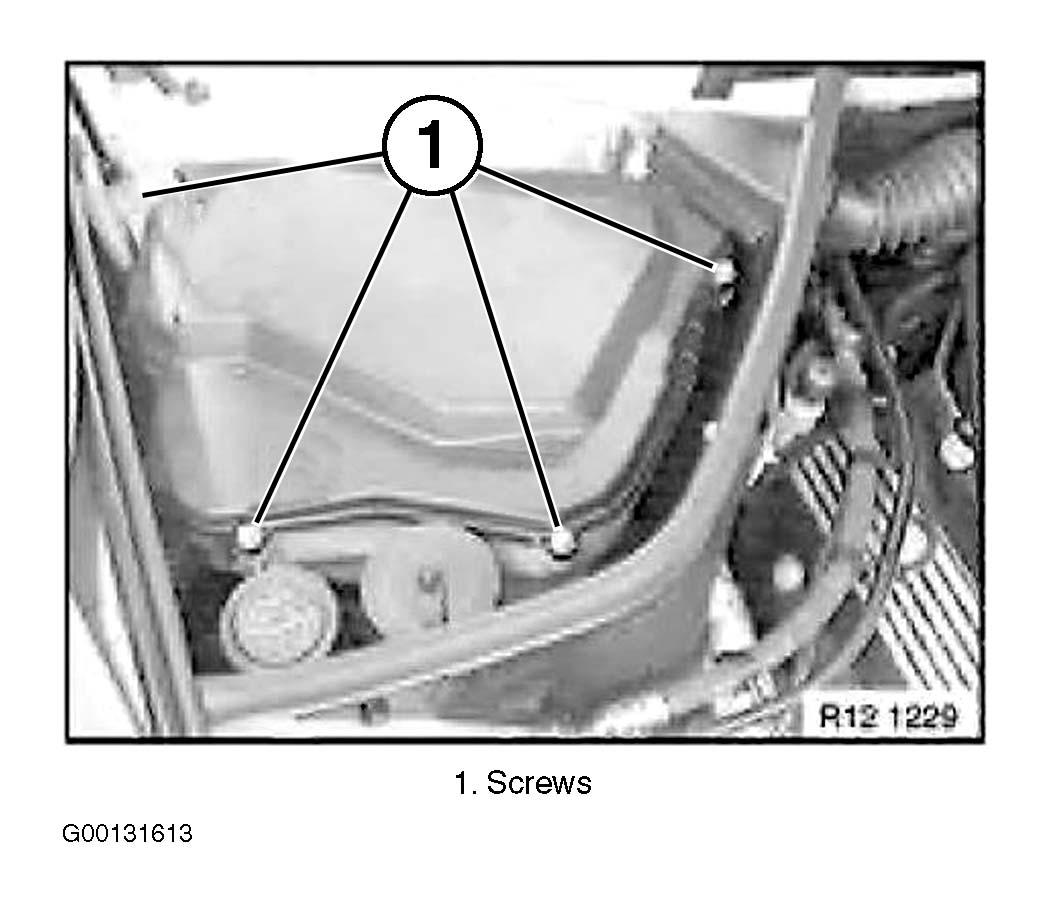

Fig 11: Locating DME Relay; Removing Electronics Box Cover (Z8)

G00131613

Courtesy of BMW OF NORTH AMERICA, INC.

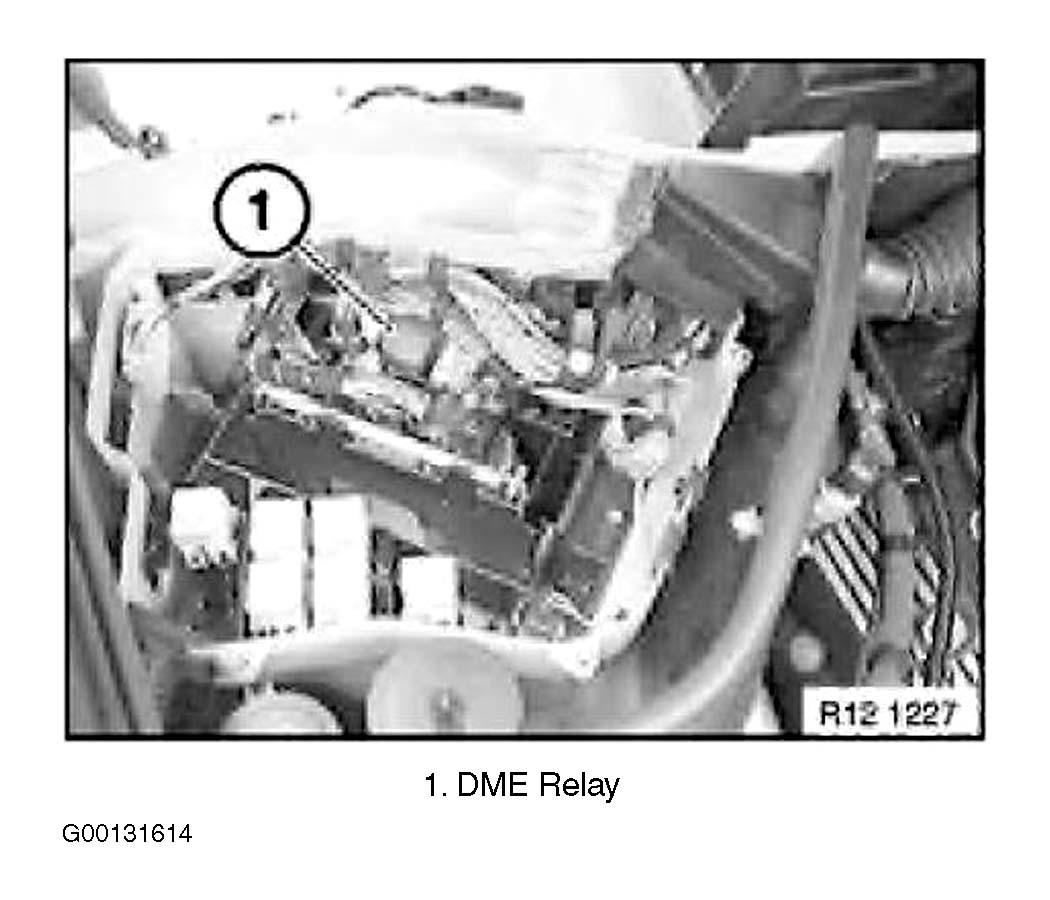

Fig 12: Locating DME Relay (Z8)

G00131614

Courtesy of BMW OF NORTH AMERICA, INC.

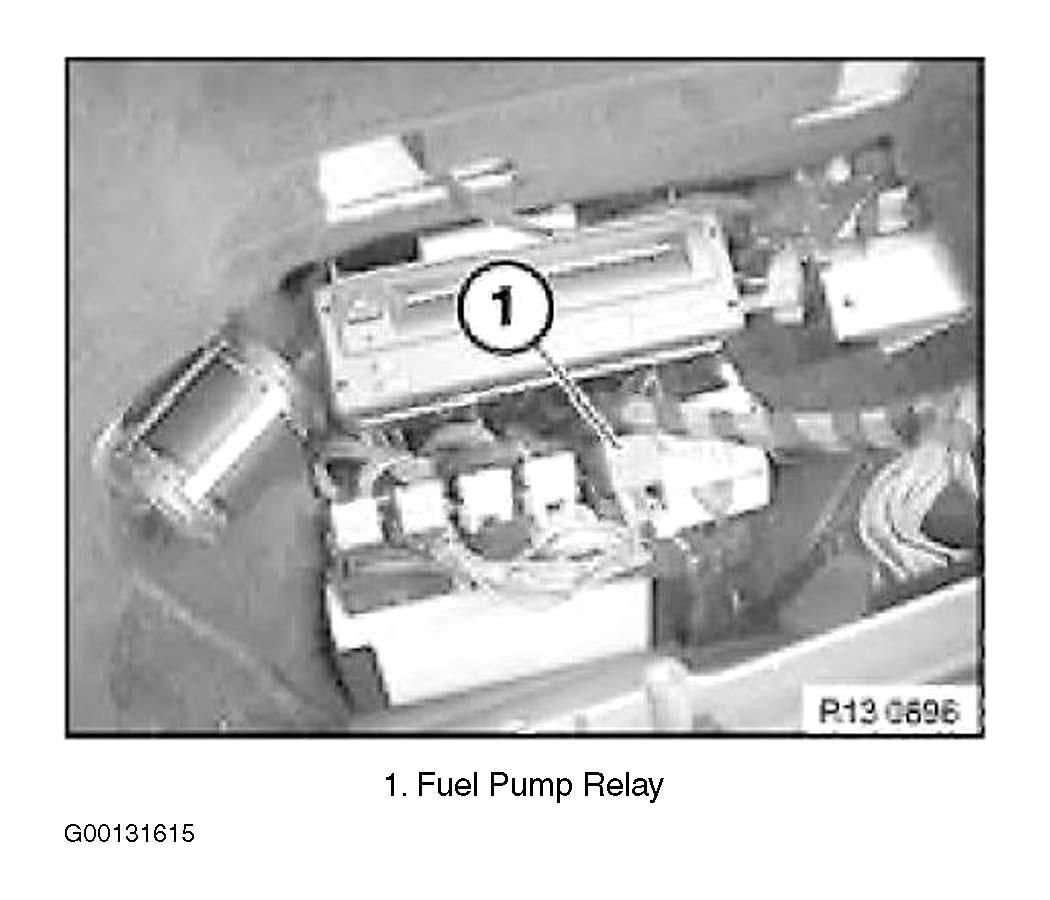

Fig 13: Locating Fuel Pump Relay (Z8)

G00131615

Courtesy of BMW OF NORTH AMERICA, INC.

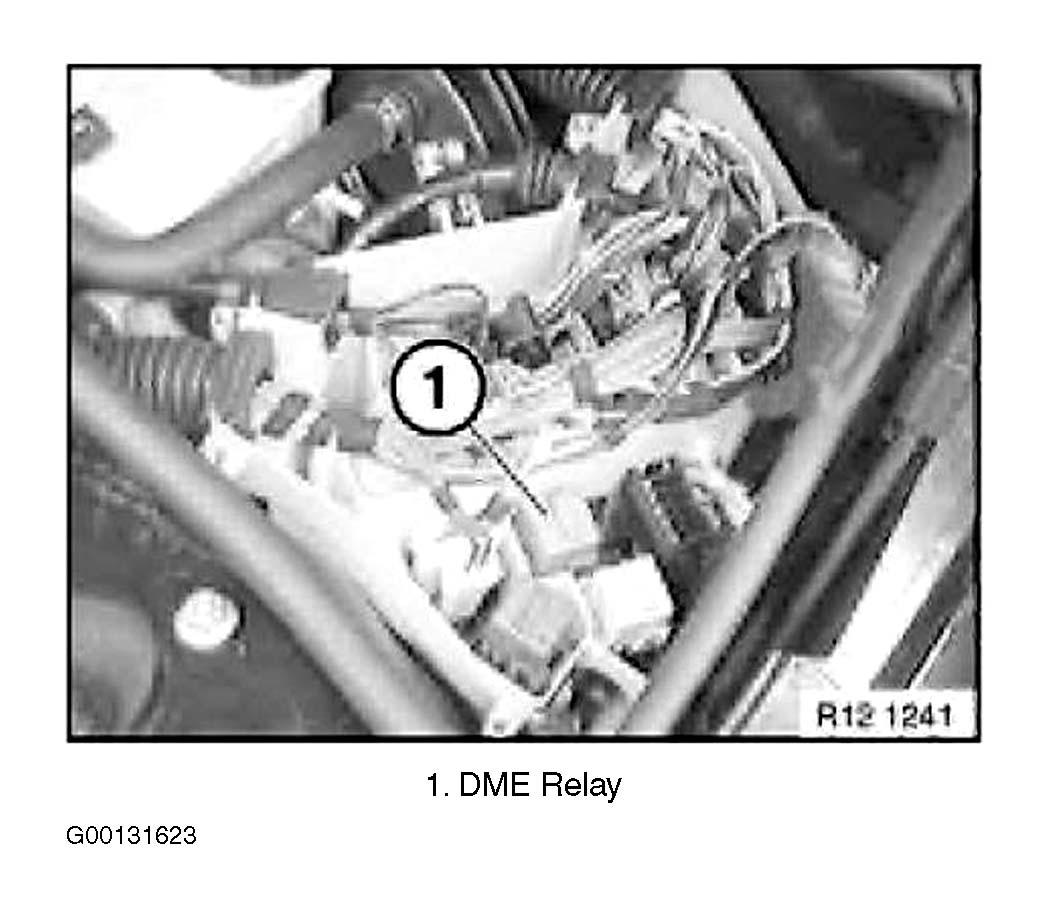

Fig 14: Locating DME Relay (3-Series - E46)

G00131623

Courtesy of BMW OF NORTH AMERICA, INC.

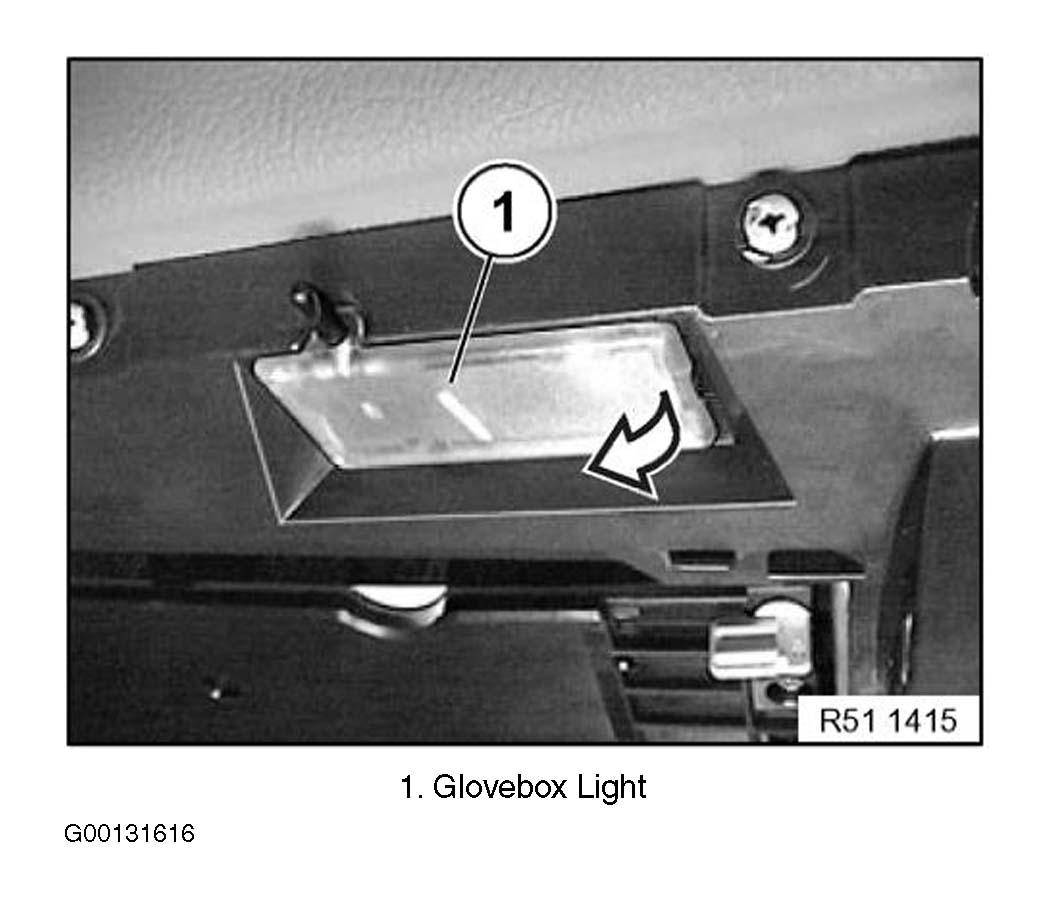

Fig 15: Locating Fuel Pump Relay; Removing Glovebox Light (3-Series - E46)

G00131616

Courtesy of BMW OF NORTH AMERICA, INC.

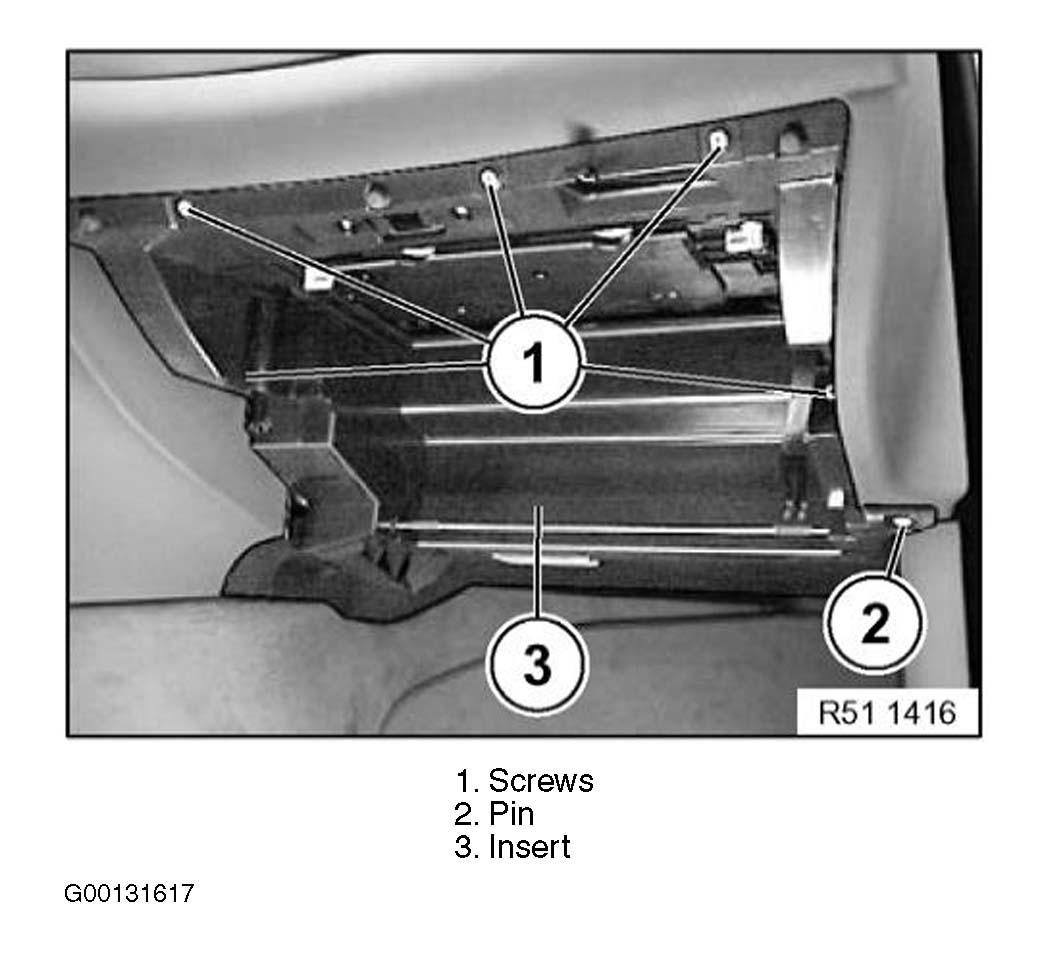

Fig 16: Locating Fuel Pump Relay; Removing Insert (3-Series - E46)

G00131617

Courtesy of BMW OF NORTH AMERICA, INC.

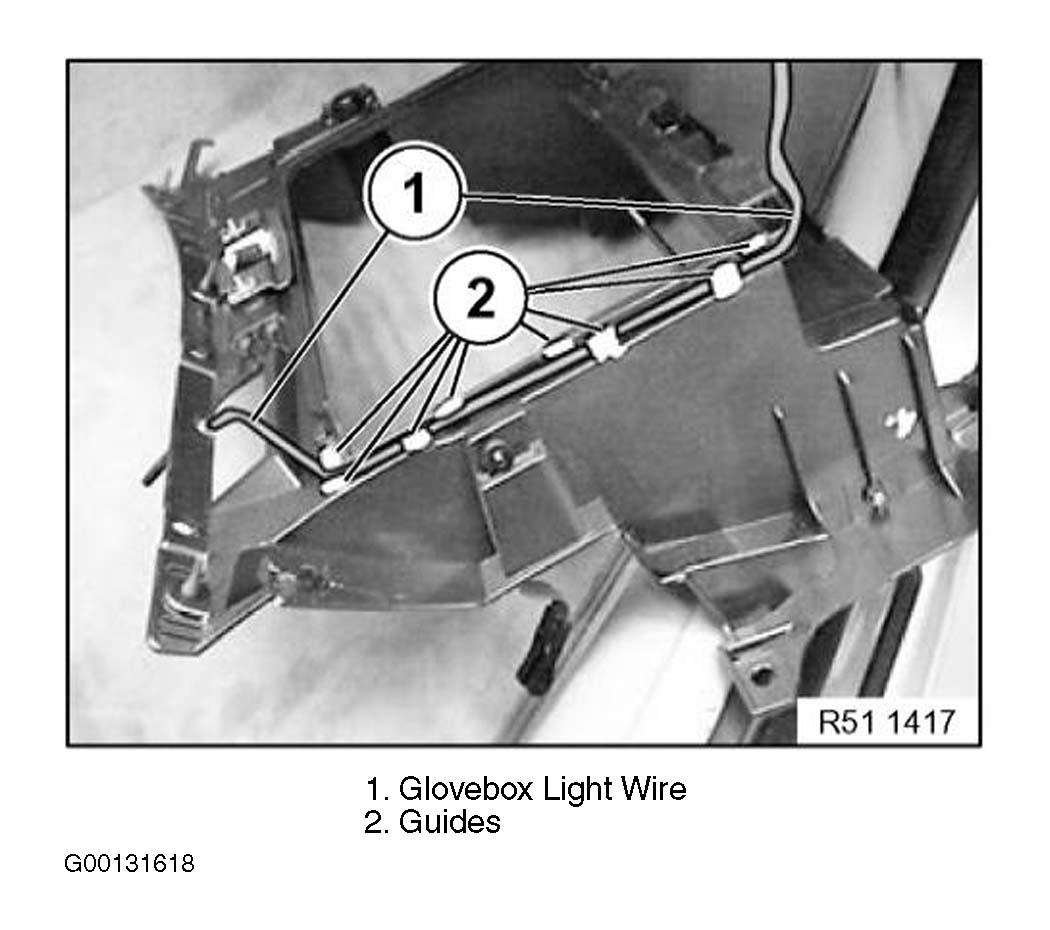

Fig 17: Locating Fuel Pump Relay; Removing Light Wire From Guides (3-Series - E46)

G00131618

Courtesy of BMW OF NORTH AMERICA, INC.

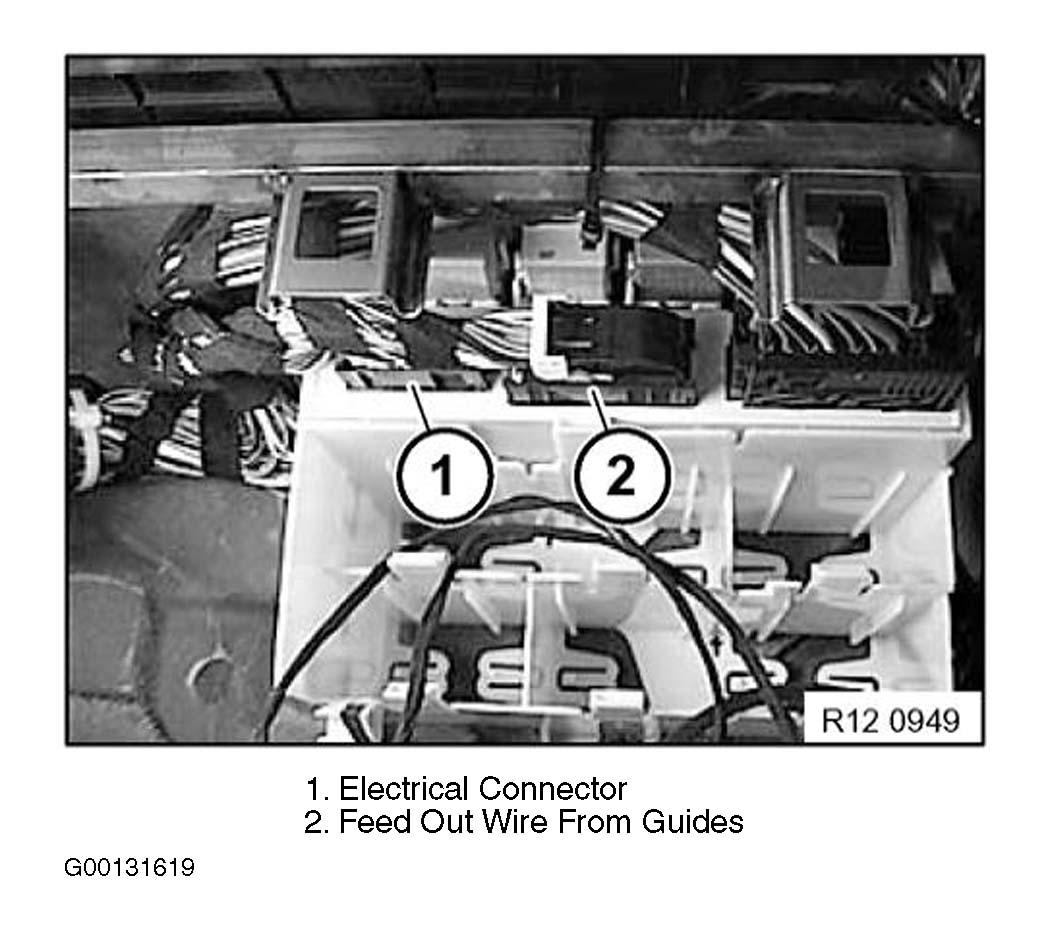

Fig 18: Locating Fuel Pump Relay; Removing Wiring From Guides (3-Series - E46)

G00131619

Courtesy of BMW OF NORTH AMERICA, INC.

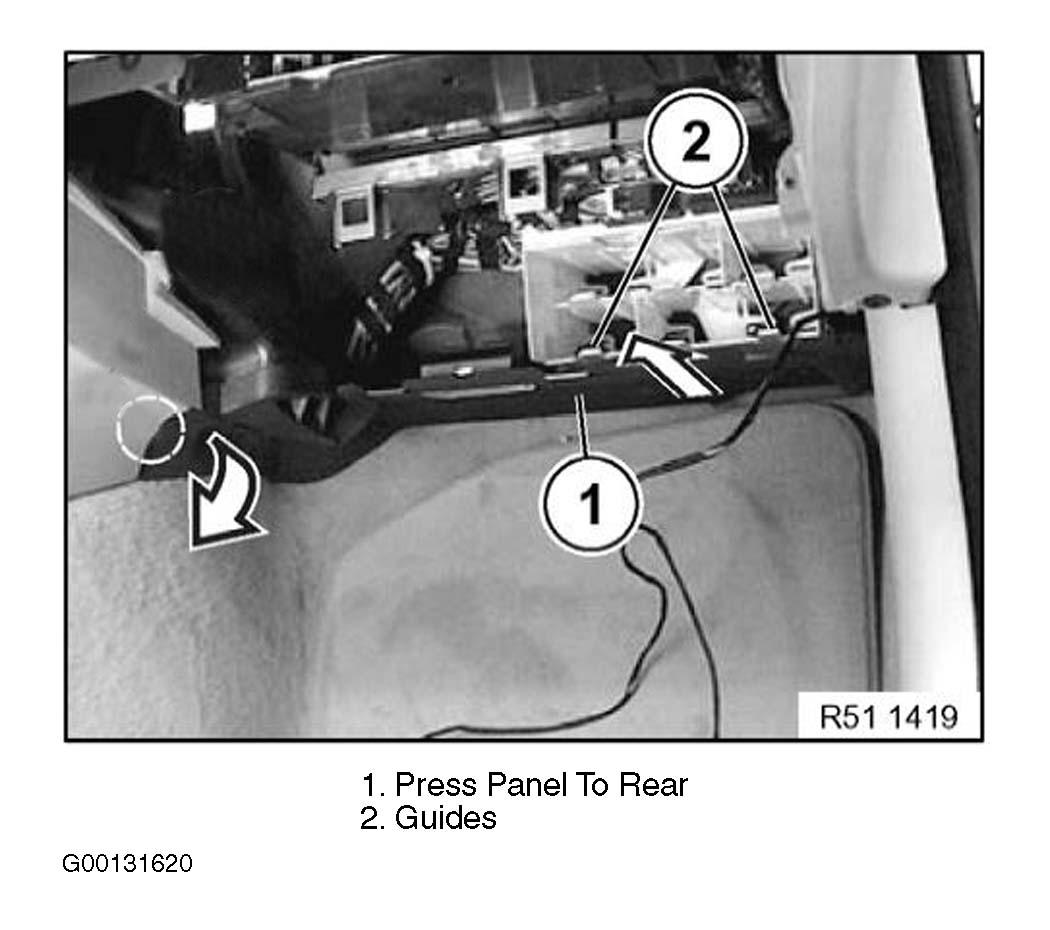

Fig 19: Locating Fuel Pump Relay; Pressing Panel Rearward (3-Series - E46)

G00131620

Courtesy of BMW OF NORTH AMERICA, INC.

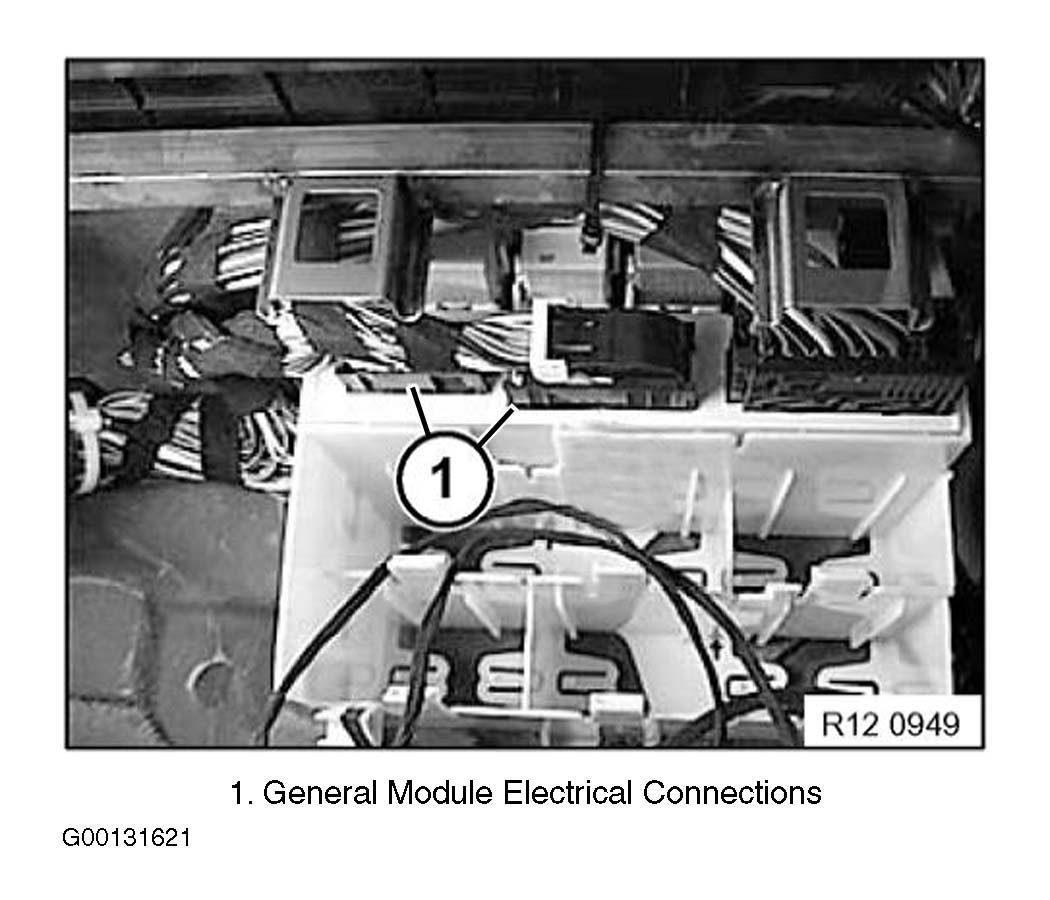

Fig 20: Locating Fuel Pump Relay; Disconnecting General Module Electrical Connections (3-Series - E46)

G00131621

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 21: Locating Fuel Pump Relay; Version No. 1 (3-Series - E46)

G99G05492

Courtesy of BMW OF NORTH AMERICA, INC.

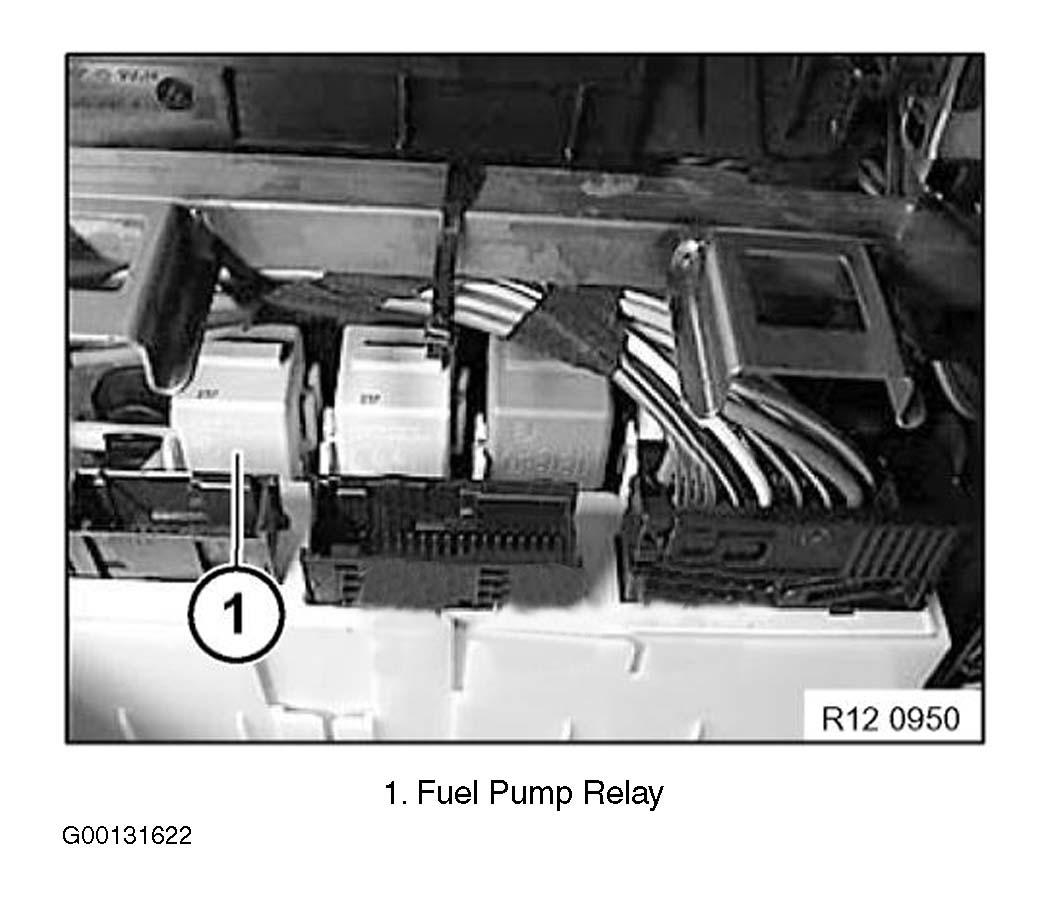

Fig 22: Locating Fuel Pump Relay; Version No. 2 (3-Series - E46)

G00131622

Courtesy of BMW OF NORTH AMERICA, INC.

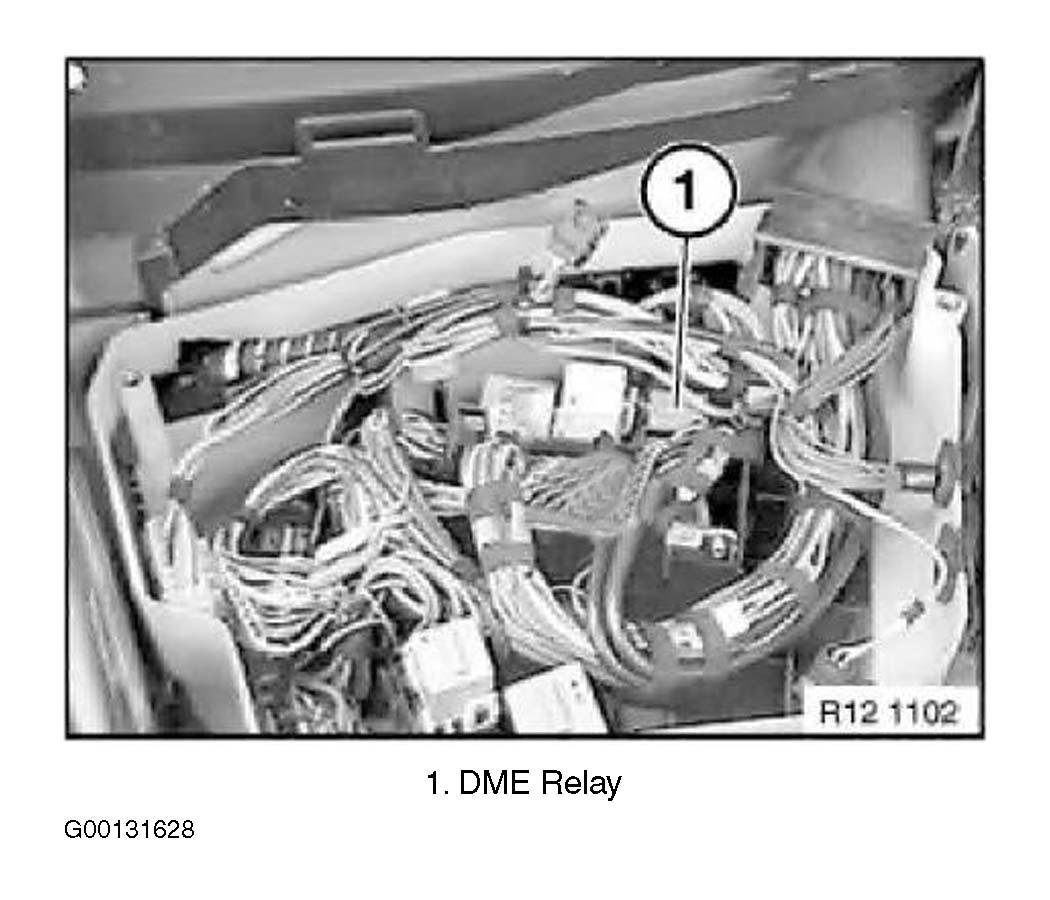

Fig 23: Locating DME Relay (5-Series - M5)

G00131628

Courtesy of BMW OF NORTH AMERICA, INC.

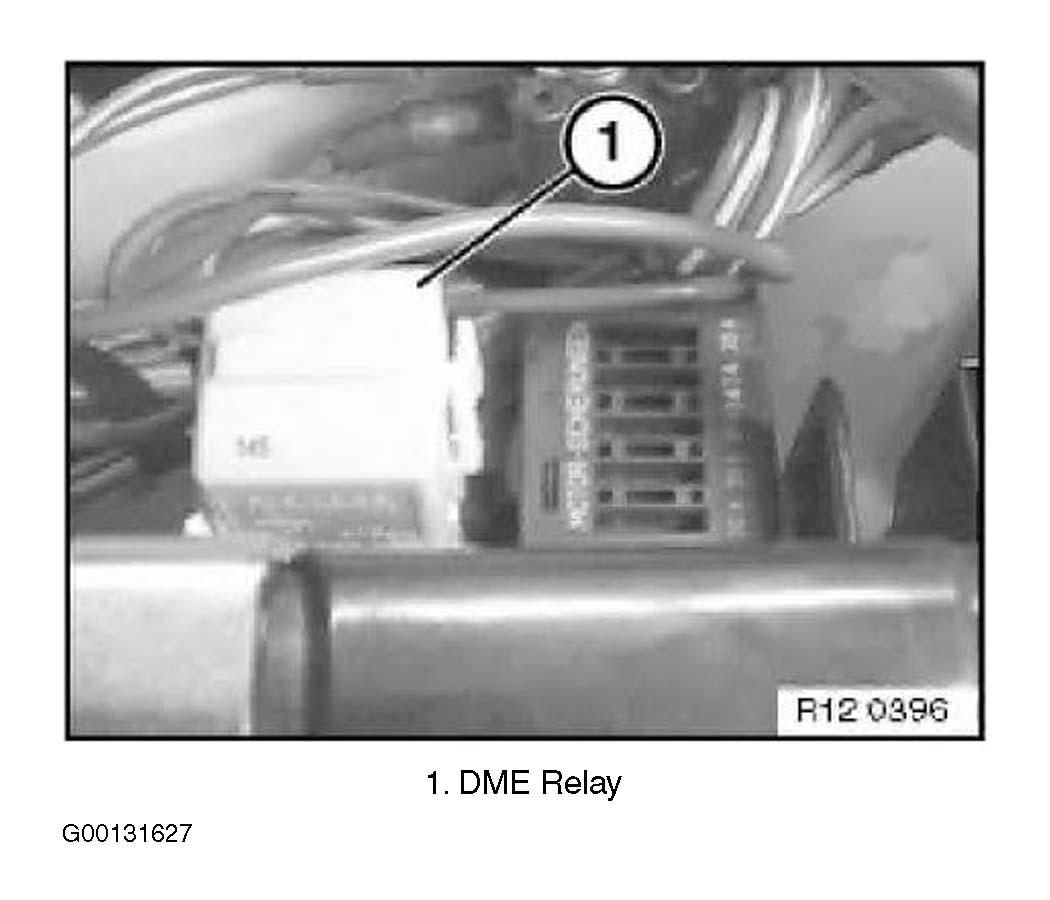

Fig 24: Locating DME Relay (5-Series - Except M5)

G00131627

Courtesy of BMW OF NORTH AMERICA, INC.

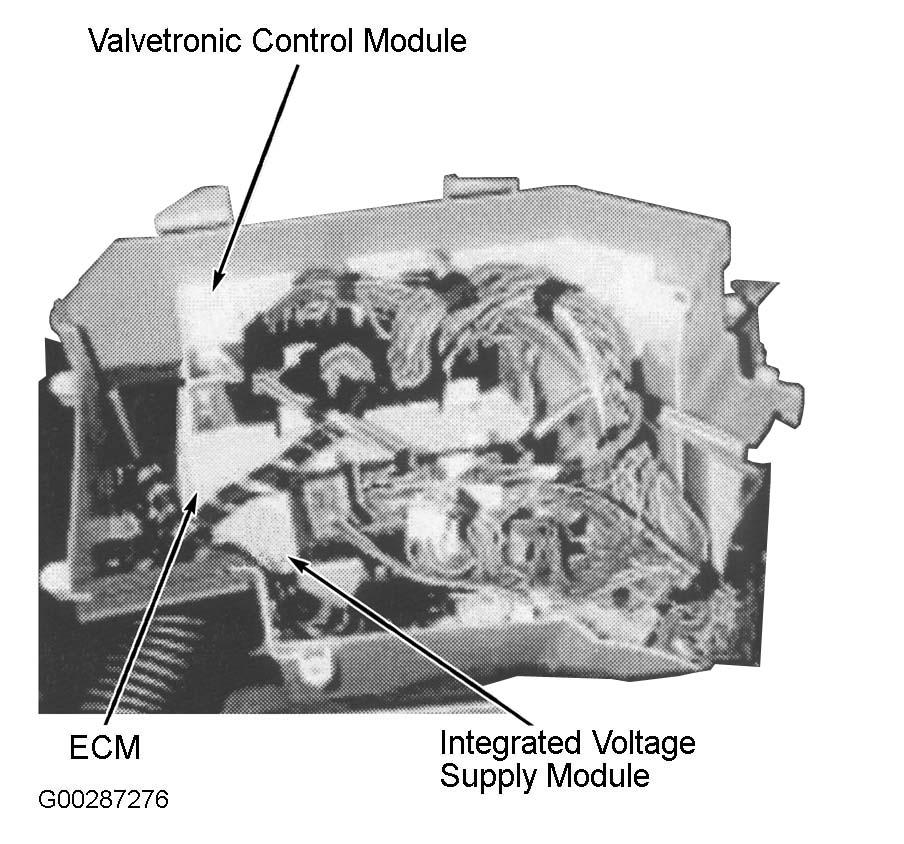

Fig 25: Identifying Electronics Box (7-Series V8)

G00287276

Courtesy of BMW OF NORTH AMERICA, INC.

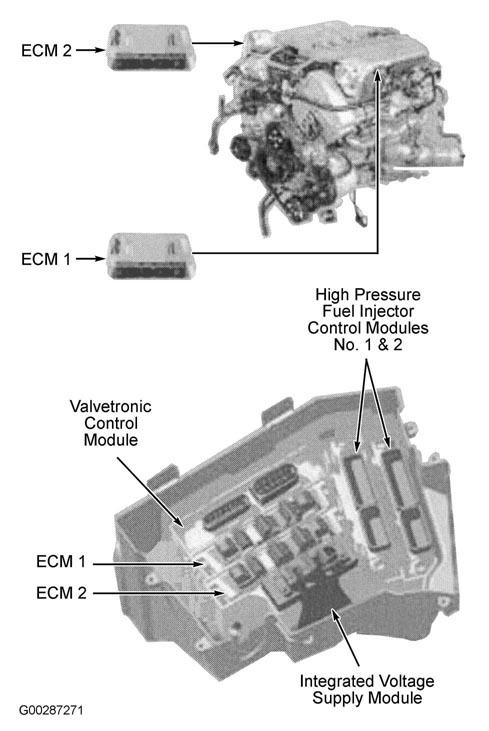

Fig 26: Identifying Electronics Box (7-Series V12)

G00287271

Courtesy of BMW OF NORTH AMERICA, INC.
