Throttle Position Sensor
WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2005 BMW 760i, 2004 BMW 760Li, 2003 BMW Z8, 2003 BMW Z4, and 2003 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

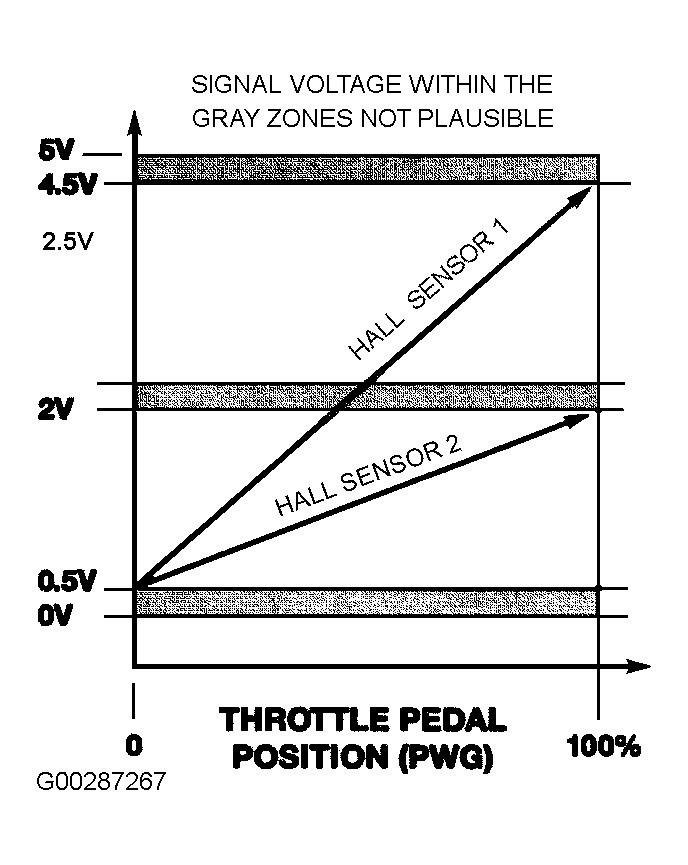

Throttle position sensor can be tested with BMW DISplus system or DISplus oscilloscope. When using oscilloscope, select from present measurement which requires taking the measurement with the ECM and the universal adapter connected to circuit. See Fig 1.
