84 11 510 Removing And Installing/Replacing Eject Box (Fixed Mounting)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Operation is described in:
Removing insert in storage tray.
Remove insert in storage tray (1) in direction of arrow from storage tray (2).

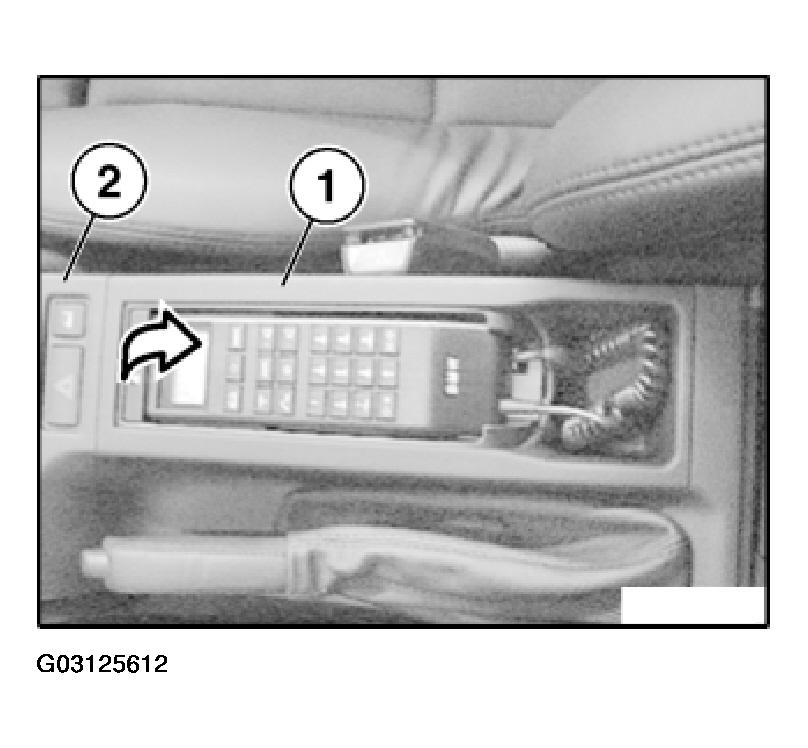

Fig 1: Locating Hand Set Plug Connection
G03125612Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

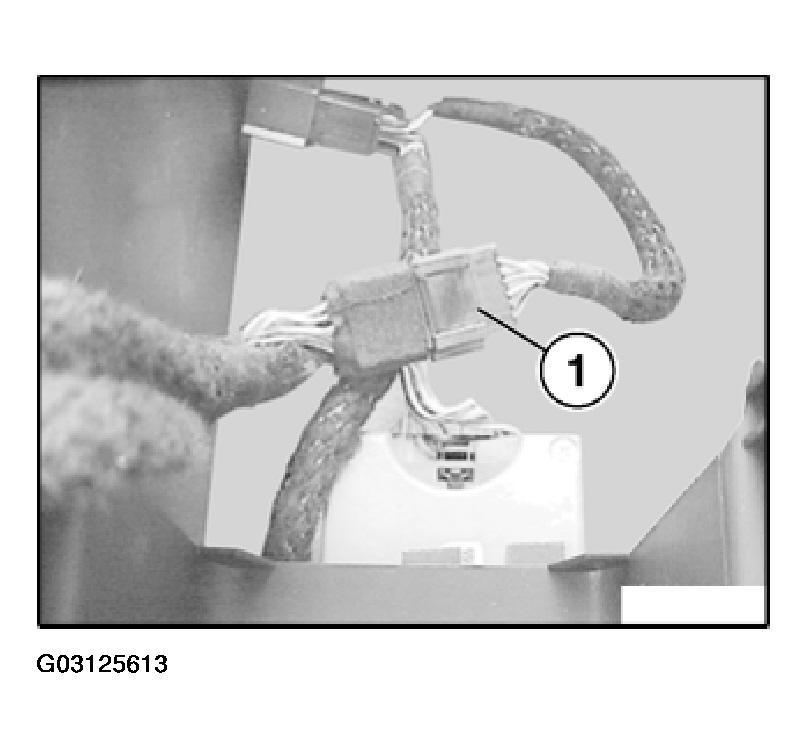

Fig 2: Disconnecting Plug Connector
G03125613Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retainer (1) in direction of arrow. Disconnect plug connection (2).

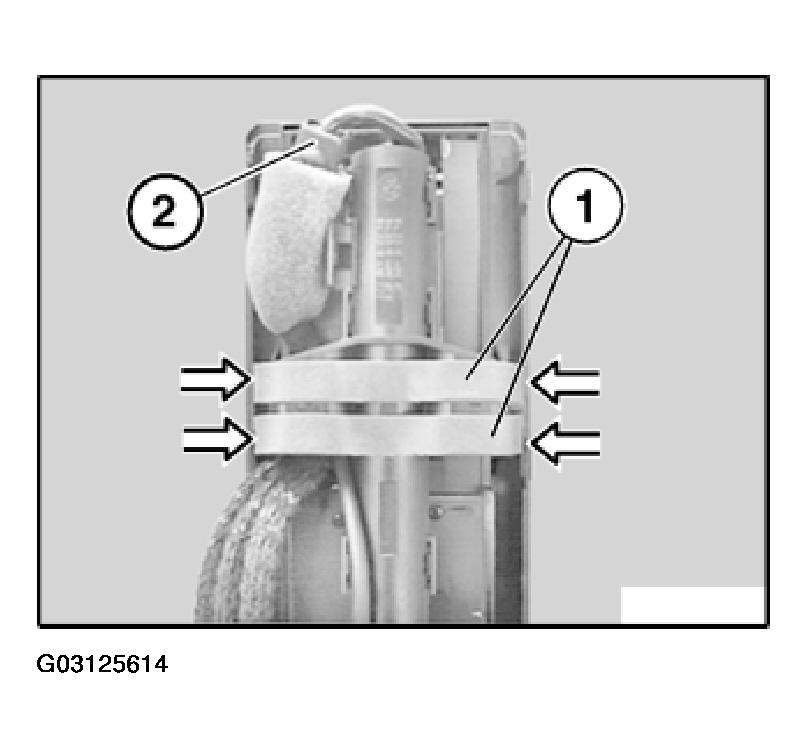

Fig 3: Plug Connector Unlock Retainer
G03125614Courtesy of BMW OF NORTH AMERICA, INC.

Unhook cable duct (1) in direction of arrow and remove eject box (2).

Installation:

  1. Ensure correct cable routing.

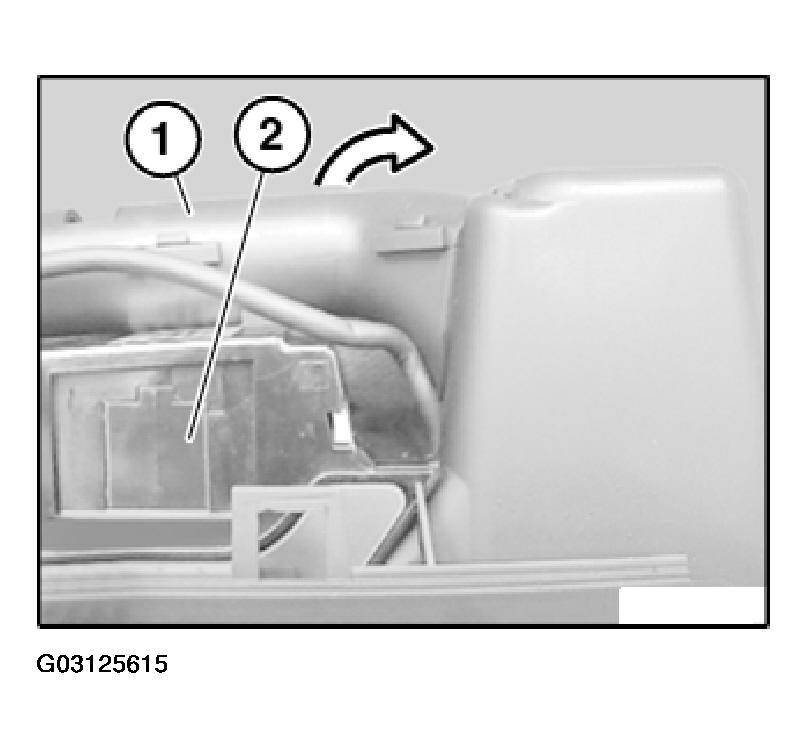

Fig 4: Cable Duct
G03125615Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

  1. Disconnect plug connection (1).

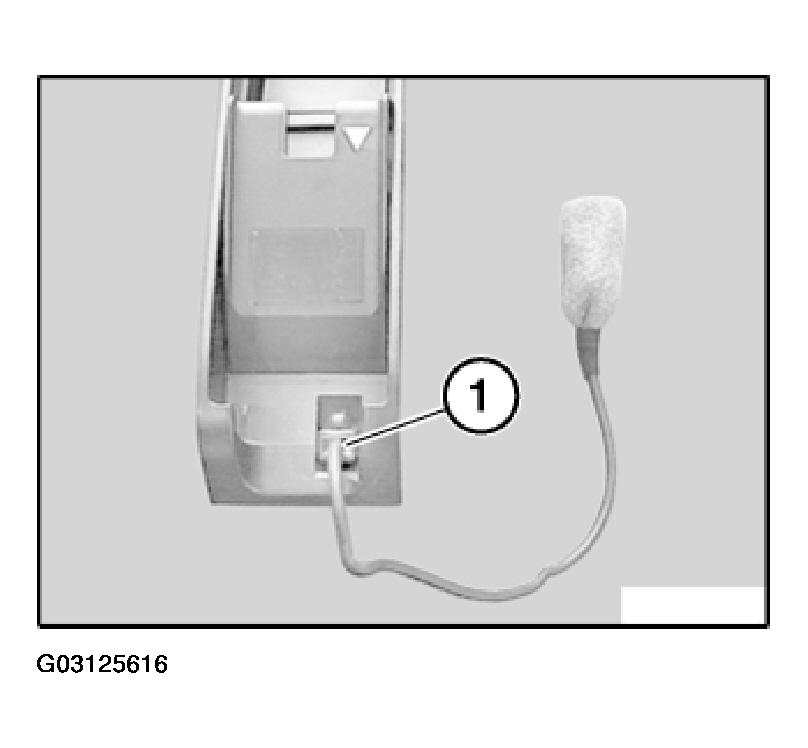

Fig 5: Plug Connector
G03125616Courtesy of BMW OF NORTH AMERICA, INC.
