84 11 510 Removing And Installing/Replacing Eject Box (Cellular Phone)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Unlock insert in storage tray (1) on both sides in direction of arrow and remove upwards from storage tray (2).

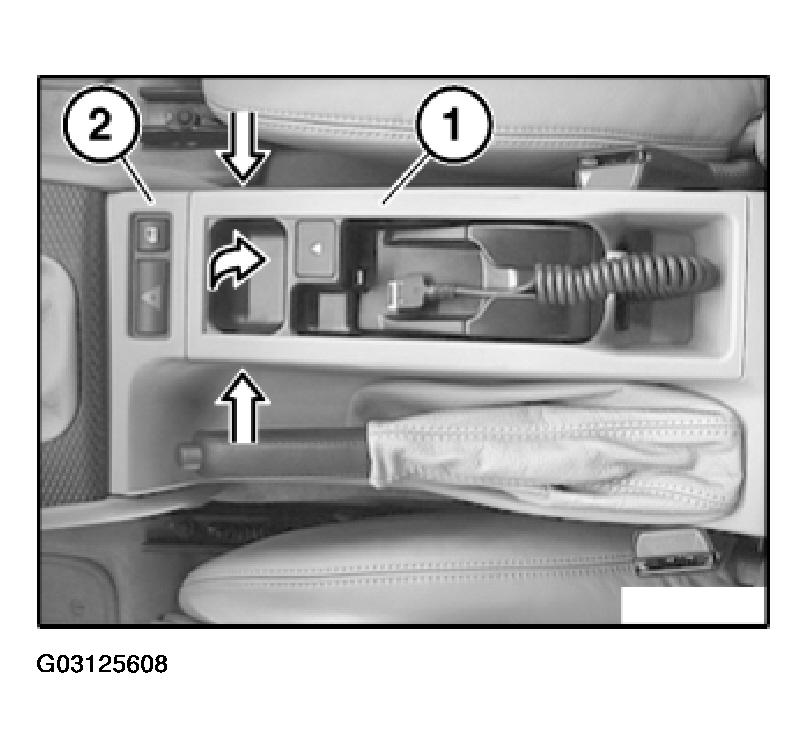

Fig 1: Storage Tray Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1), (2) and (3).

Remove insert in storage tray (4).

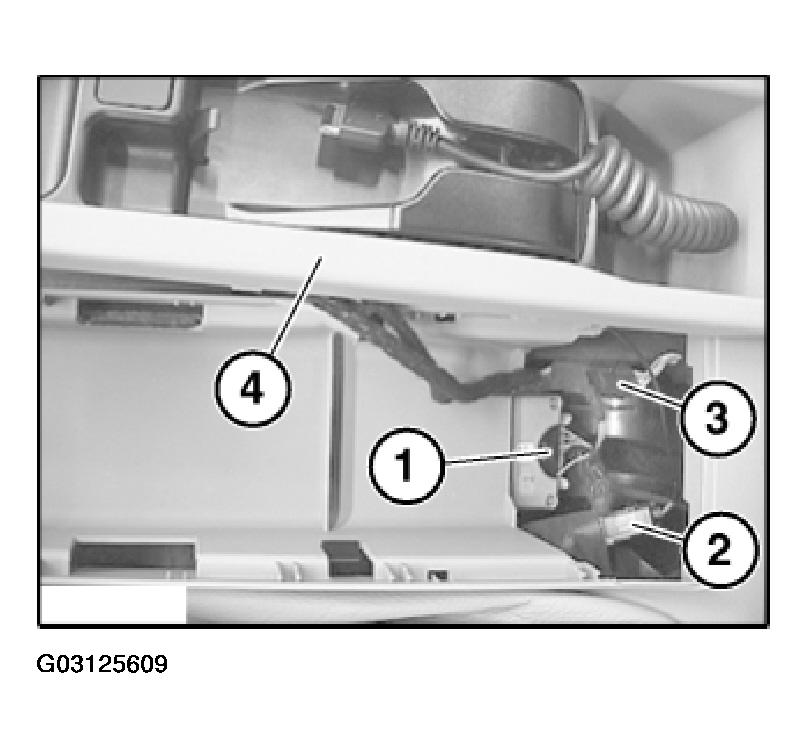

Fig 2: Plug Connections In Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retainer (1) on both sides and remove cable duct (2) in direction of arrow from insert in storage tray (3).

Installation:

Ensure correct cable routing.

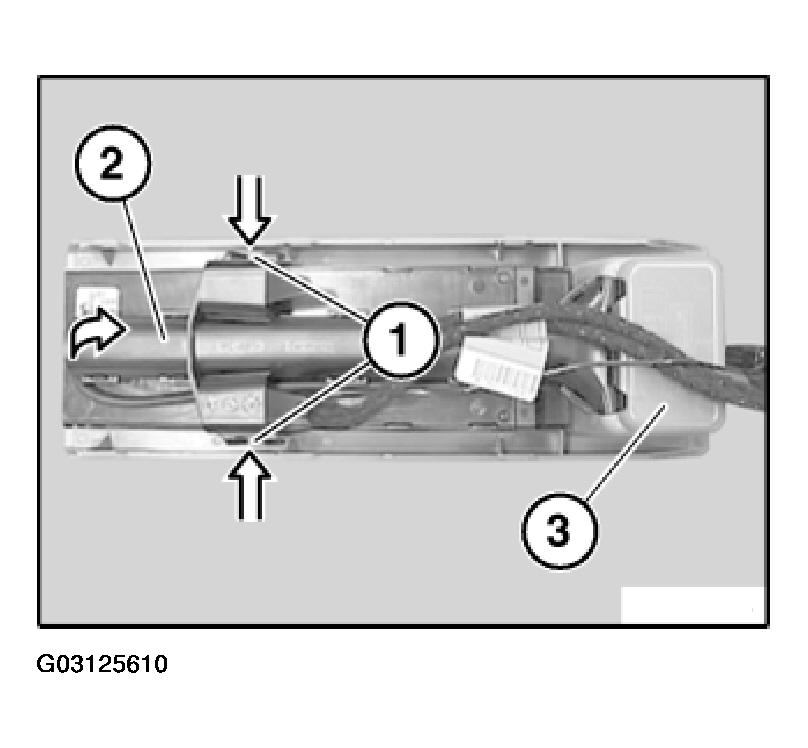

Fig 3: Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove eject box (1) in direction of arrow from insert in storage tray (2).

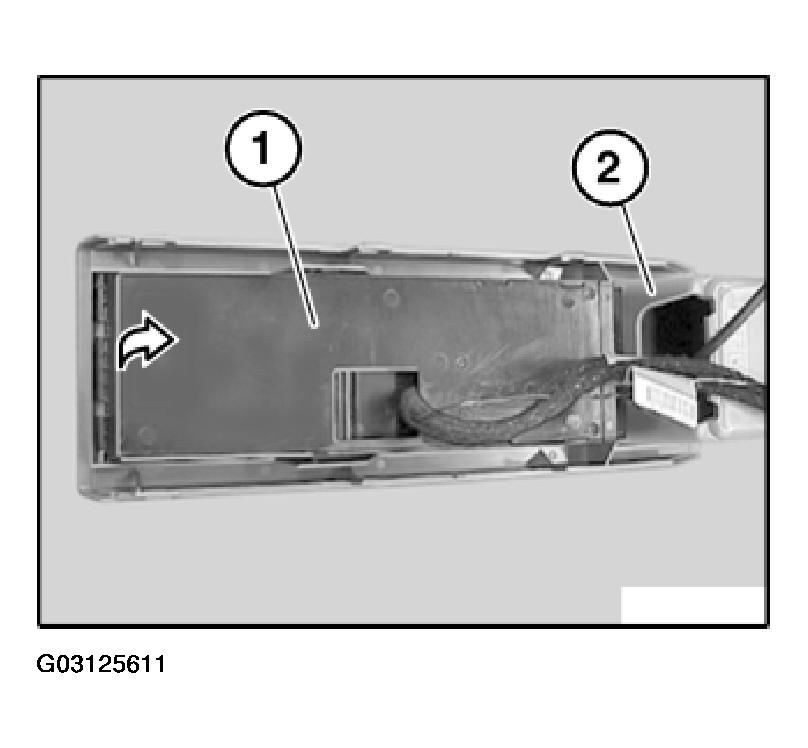

Fig 4: Removing Eject Box From Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.
