Special tools required:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

61 4 320

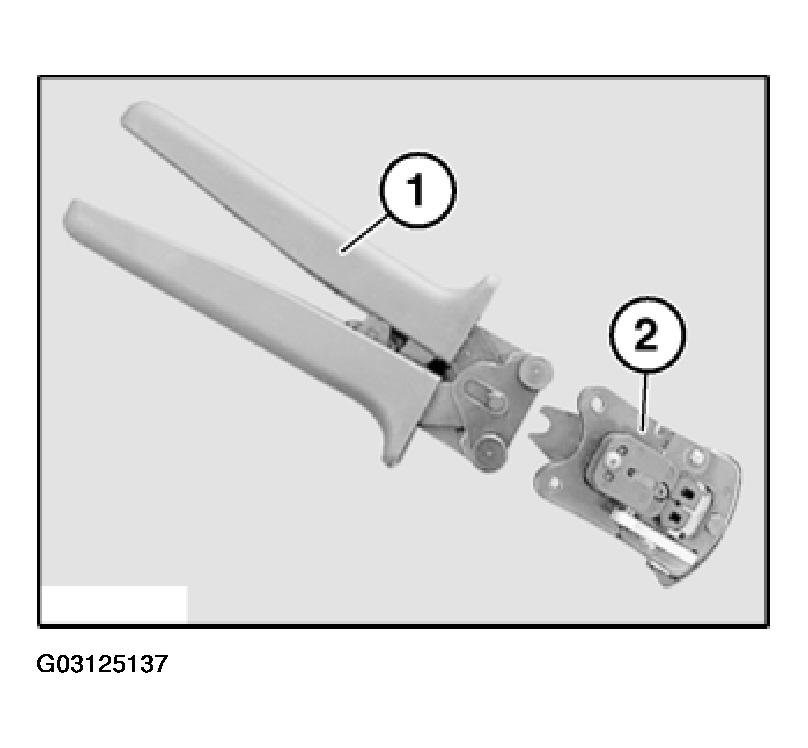

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

Fig 1: Identifying Crimping Set (Plier & Crimping Head)

Courtesy of BMW OF NORTH AMERICA, INC.

Cutting optical fibre

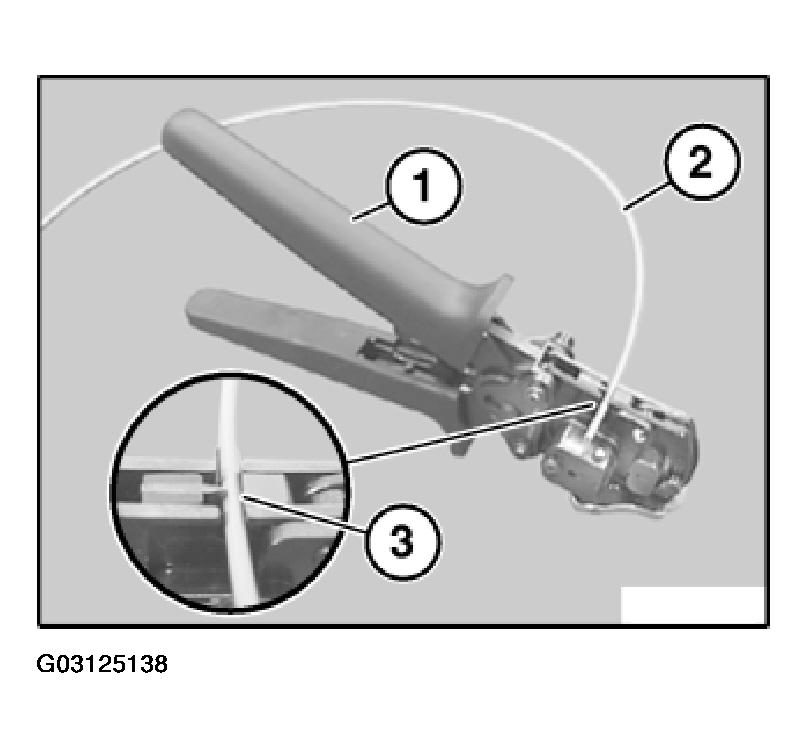

Open pliers (1).

Place optical fibre (2) in cutting device (3).

Close pliers (1) and remove optical fibre (2).

Fig 2: Cutting Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.

Stripping insulation from optical fibre

Open pliers (1).

Open lever (2) in direction of arrow.

Fig 3: Opening Lever

Courtesy of BMW OF NORTH AMERICA, INC.

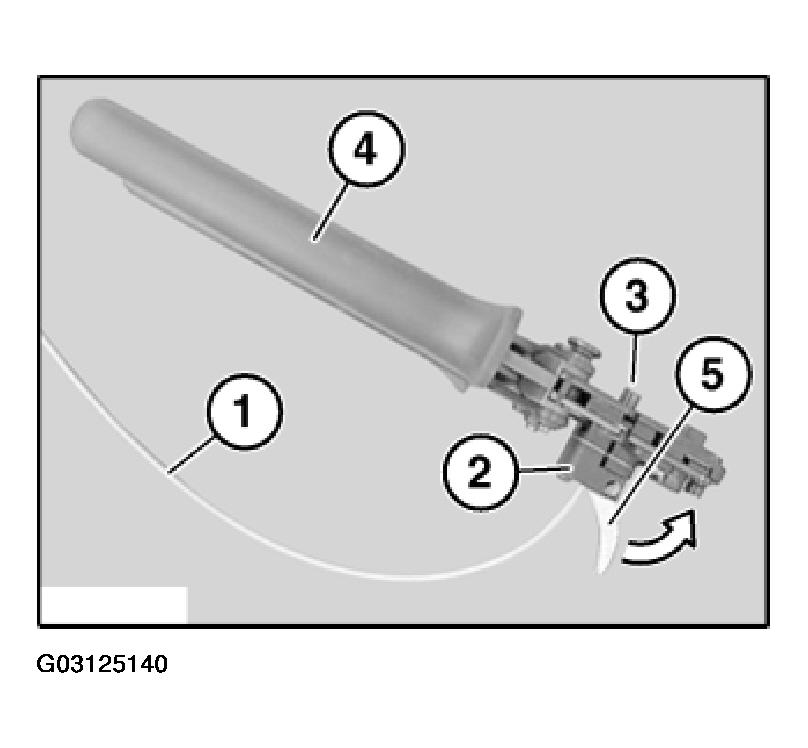

Slide optical fibre (1) into stripping device (2) until flush at point (3).

Close pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

NOTE: A stripping replacement blade set is available under number 61 4 327.

Cutting optical fibre to length

IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

Fig 4: Removing Optical Fibre By Opening Clamping Lever

Courtesy of BMW OF NORTH AMERICA, INC.

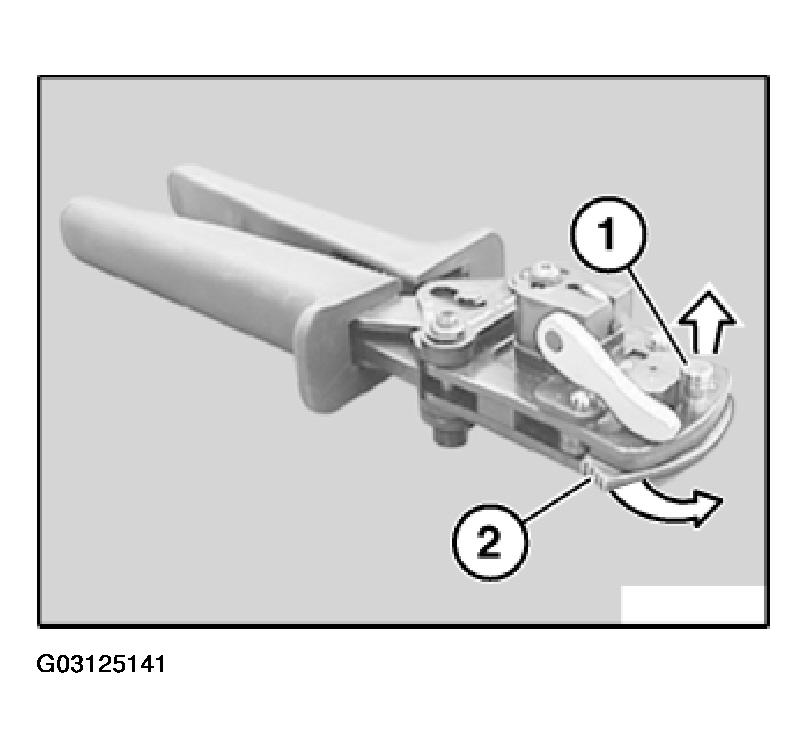

Pull pin (1) in direction of arrow.

Fold up blade retaining link (2) in direction of arrow.

Fig 5: Identifying Direction For Folding Blade Retaining Link

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

Installation:

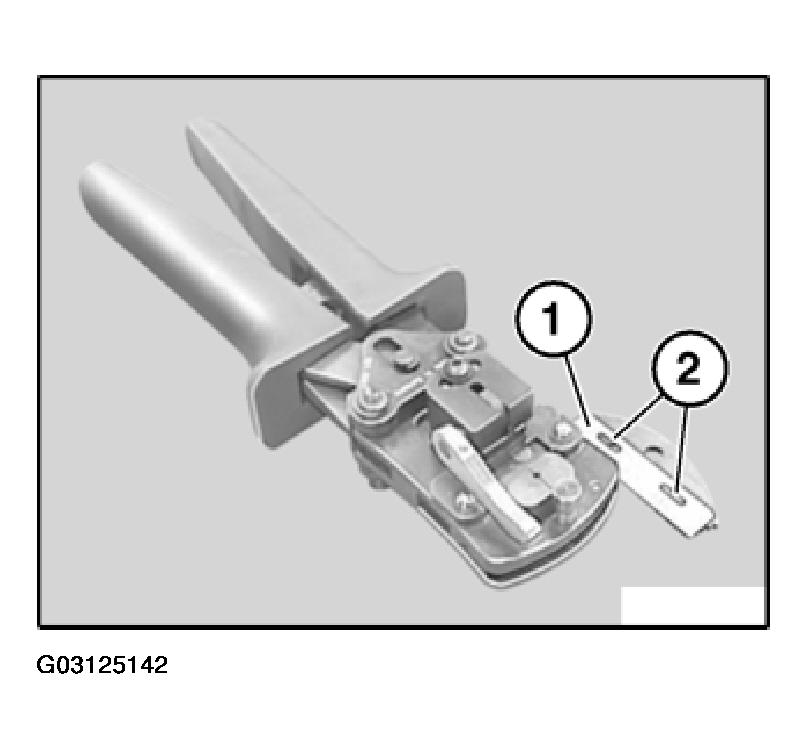

Make sure blade (1) is correctly seated on locating points (2).

Fig 6: Identifying Correct Seating Of Blade

Courtesy of BMW OF NORTH AMERICA, INC.

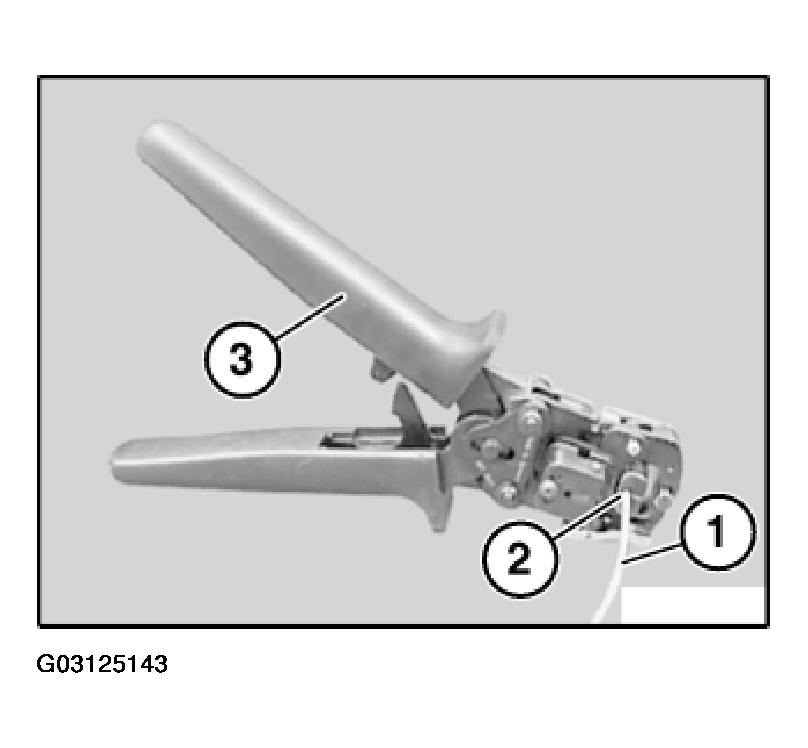

Open pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).

Fig 7: Cutting Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.
