61 35 175 Removing and installing/replacing rain sensor

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Up to 09/2001:

Version with rain sensor.

Necessary preliminary tasks:

Remove inside rearview mirror. See 51 16 060 REMOVING AND INSTALLING OR REPLACING INTERIOR REARVIEW MIRROR

Pull out retaining clips (2) in each case in direction of arrow and remove. Unclip rain sensor (3) at bottom in direction of arrow. Disconnect plug connection (1) and remove rain sensor (3).

Installation:

Do not damage optical element below rain sensor (3). If necessary, initialize rain sensor.

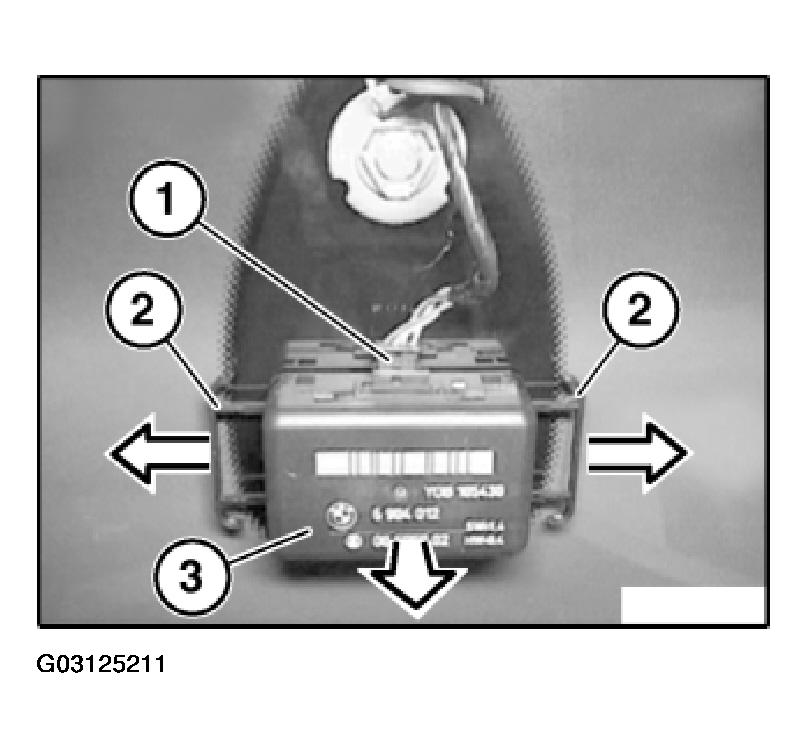

Fig 1: Removing Rain Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2001:

Version with rain/light sensor.

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

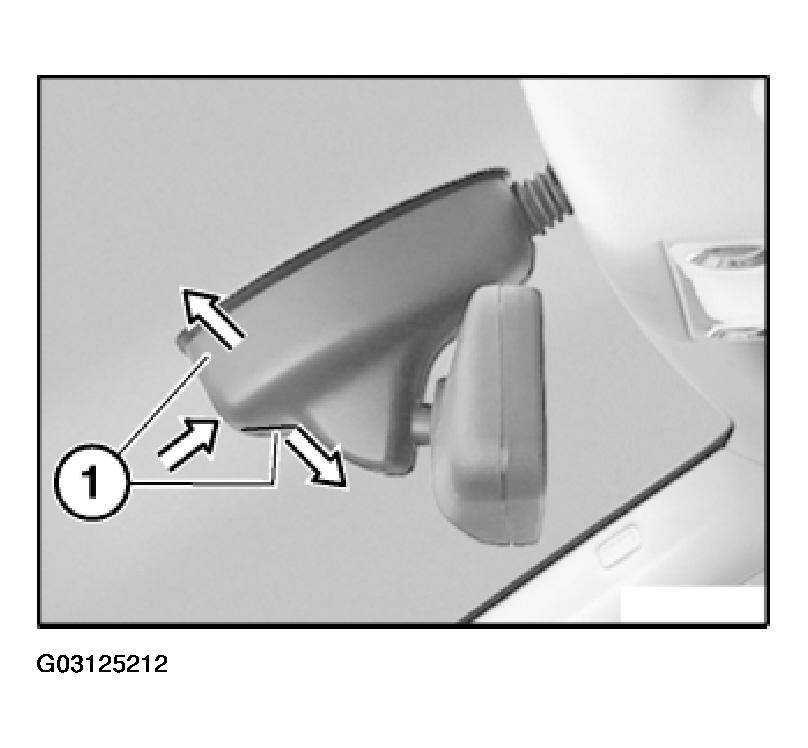

Fig 2: Removing Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3). Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

Installation:

Do not damage optical element below rain/light sensor (2). If necessary, initialize rain/light sensor.

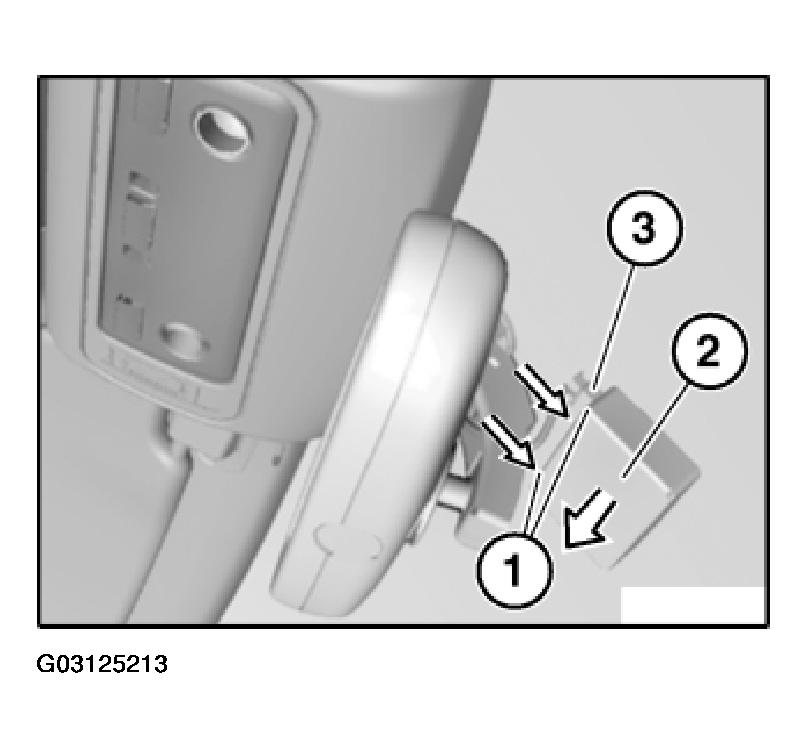

Fig 3: Removing Rain/Light Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
