Relays & Solenoids: Relays
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 1999 BMW Z3, 1999 BMW M3, 1999 BMW M Roadster, 1999 BMW M Coupe, and 1999 BMW 740iL. However, it is still accessible from the selected car via links, so may be relevant.

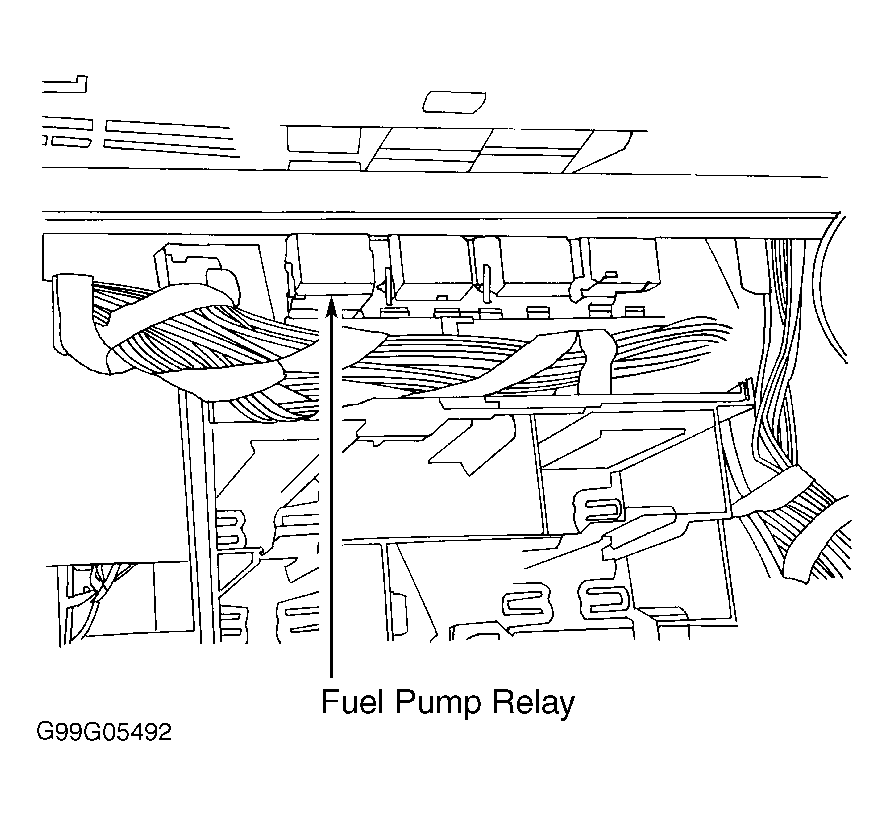

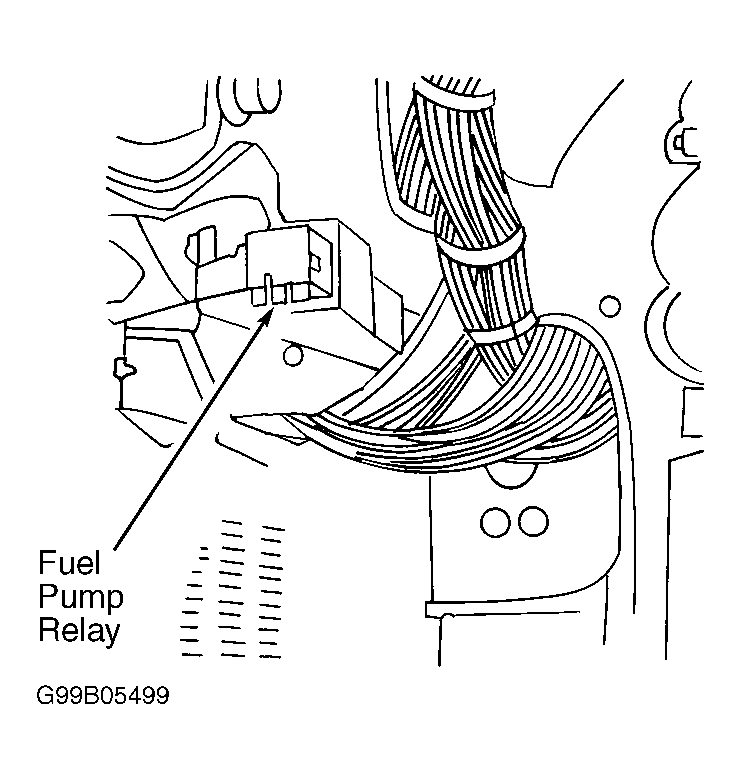

For fuel pump relay, see FUEL DELIVERY under FUEL SYSTEM. For relay locations, see DME & FUEL PUMP RELAY LOCATION table. See Fig 1-Fig 4 .
DME & FUEL PUMP RELAY LOCATION
| Application | Location | ||
|---|---|---|---|
| 3-Series | |||
| Z3 | |||
| DME Relay | Right Rear Corner Of Engine Compartment, Next To DME PCM | ||
| Fuel Pump Relay | Under Left Side Of Instrument Panel, Next To Kick Panel | ||
| E36 (Except Z3) | |||
| DME & Fuel Pump Relays | Left Rear Corner Of Engine Compartment, In Relay Box | ||
| E46 | |||
| DME Relay | Left Rear Corner Of Engine Compartment, In Relay/PCM Box | ||
| Fuel Pump Relay | Behind Glove Box | ||
| 5-Series & 7-Series | |||
| DME Relay | Right Rear Corner Of Engine Compartment, Next To DME PCM | ||
| Fuel Pump Relay | Right Side Of Trunk | ||
| 8-Series | |||
| DME & Fuel Pump Relays | Right Rear Corner Of Engine Compartment, Next To DME PCM | ||
