65 77 ... Overview Of Sensors For Airbag System (ISIS)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

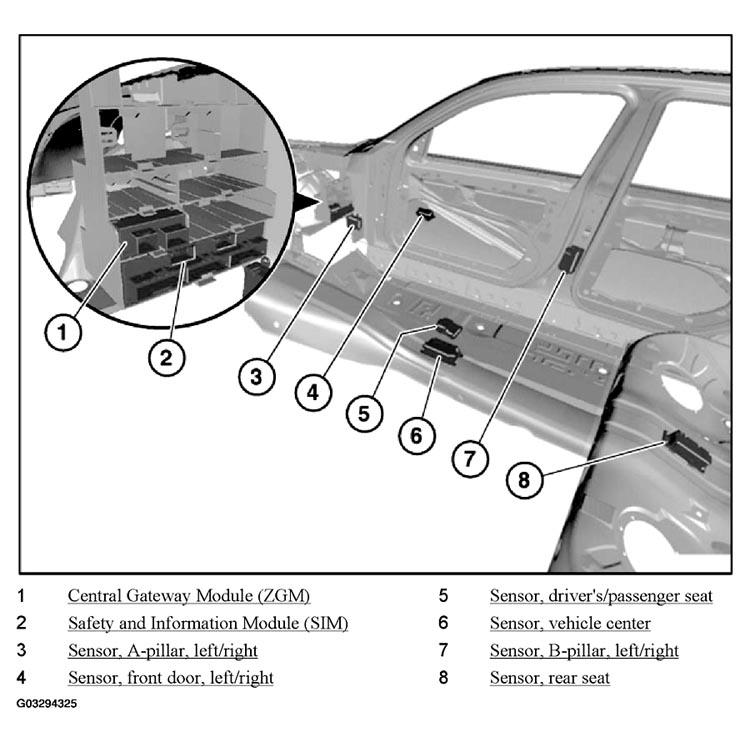

Fig 1: Airbag System Sensors (Airbag Triggering Unit) Components
G03294325Courtesy of BMW OF NORTH AMERICA, INC.
