65 12 200 Removing And Installing (Replacing) Audio System Controller

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY .
Remove decorative trim for audio system controller. Refer to 51 16 175 REMOVING AND INSTALLING/REPLACING DECORATIVE TRIMS (ALL) ON FUNCTION CARRIER .

After installation:

Replacement only: Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

NOTE: Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Release screws (1).

Pull out audio system controller (2) towards rear.

Disconnect plug connections at the back.

Remove audio system controller (2).

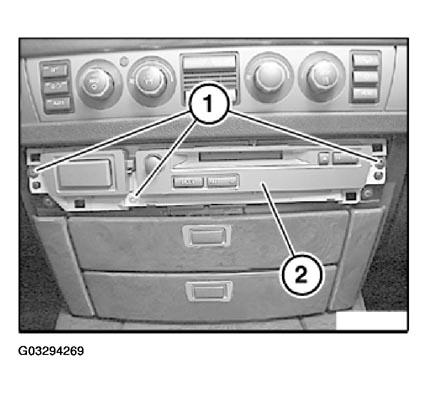

Fig 1: Audio System Controller And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bearing journal (1) of audio system controller (2) must be seated exactly in mounting (3).

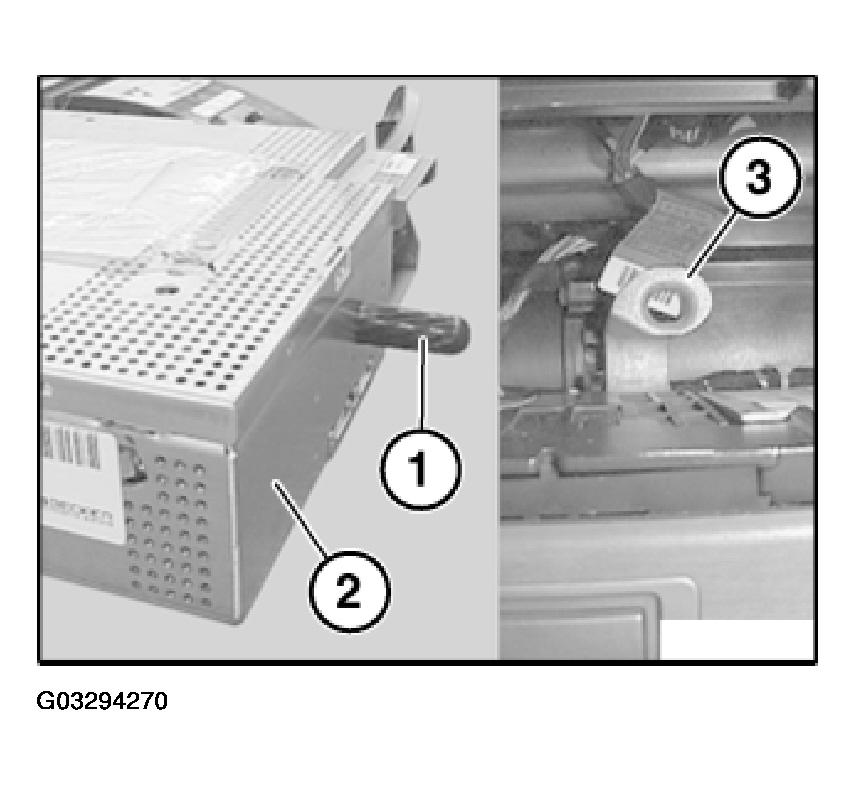

Fig 2: Bearing Journal, Audio System Controller And Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement Only:

Release screws (1).

Remove phone board (2) in direction of arrow from audio system controller.

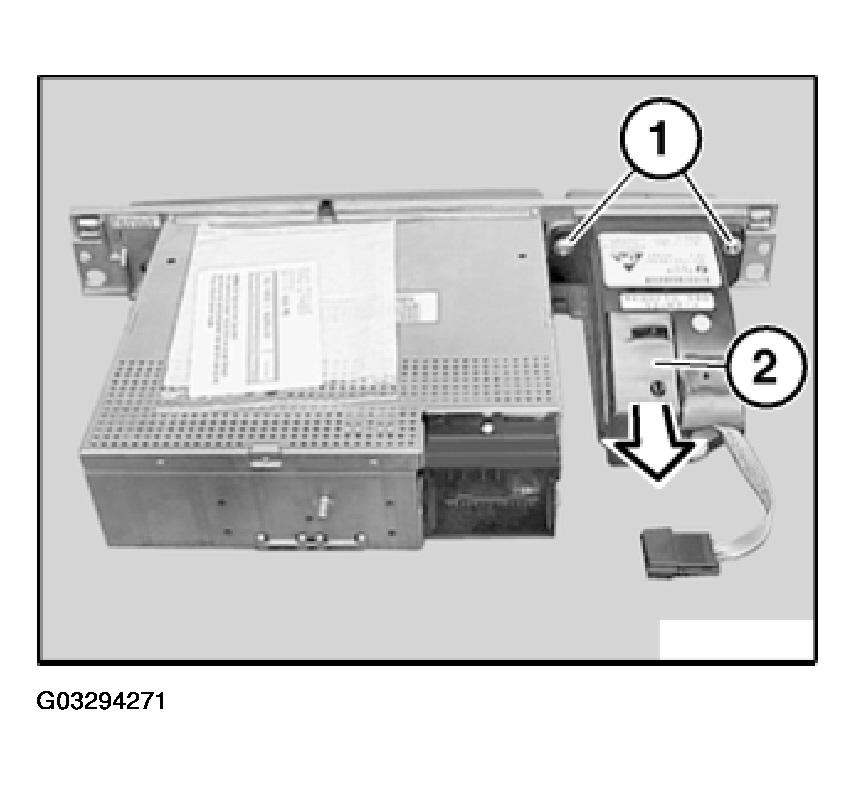

Fig 3: Retaining Screws, Audio System Controller Phone Board And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
