61 36 520 Removing And Installing/Replacing Relief Relay (EDC)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove lower trim from instrument panel. Refer to 51 45 181 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM AT BOTTOM RIGHT .

Release screw (1).

Detach right footwell air duct (2) in direction of arrow and remove towards bottom.

Installation:

Make sure air duct is correctly seated.

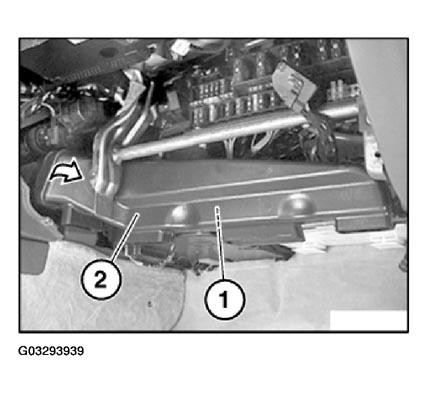

Fig 1: Right Footwell Air Duct, Screw And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Detach relay (1).

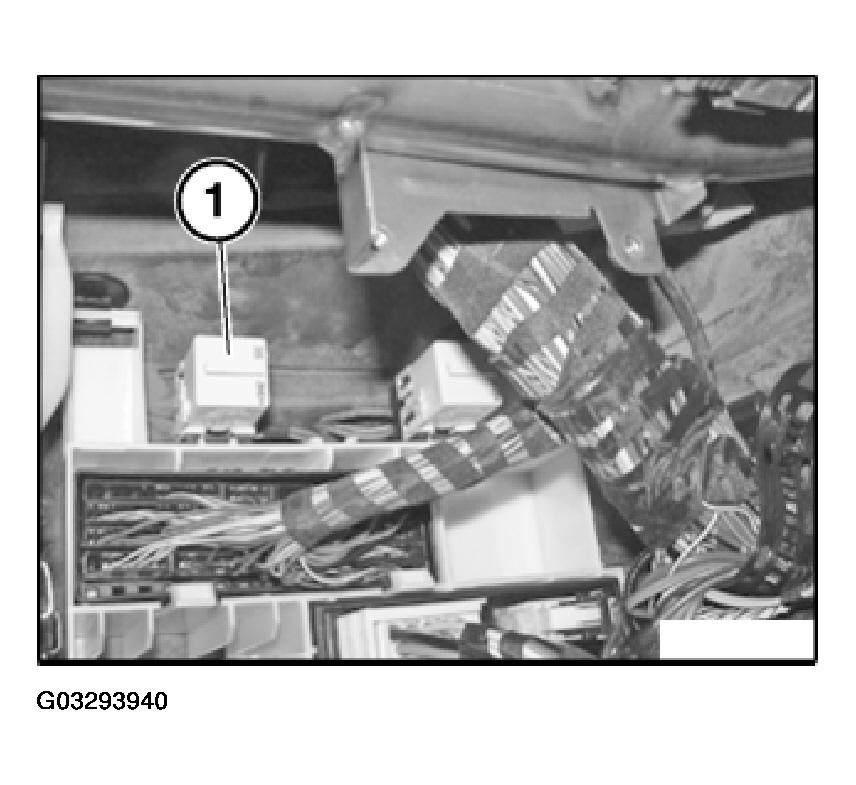

Fig 2: Relief Relay (EDC)

Courtesy of BMW OF NORTH AMERICA, INC.
