61 35 795 Removing And Installing (Replacing) Control Unit For Adaptive Headlight
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove safety information module. Refer to 65 77 700 REMOVING AND INSTALLING (REPLACING) SAFETY INFORMATION MODULE .
Unfasten plug connection (1) and disconnect.
Unlock catch (2) in direction of arrow.
Pull control unit for adaptive headlight (3) out of equipment carrier (4) and remove.

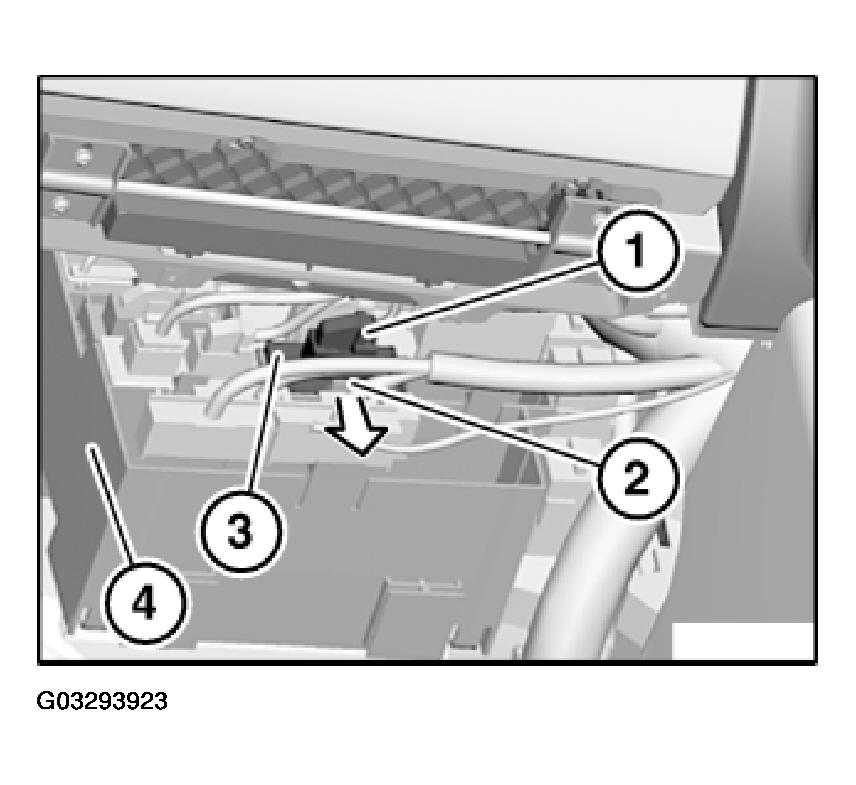

Fig 1: Adaptive Headlight Control Unit, Plug Connection, Catches, Equipment Carrier And Removal Direction
Replacement:
Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
