61 31 371 Removing And Installing/Replacing Audio Unit (On Rear Center Armrest)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear center head restraint. Refer to 52 25 388 REMOVING AND INSTALLING/REPLACING REAR MIDDLE HEAD RESTRAINT .
Remove rear trim. Refer to 52 25 070 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON REAR CENTER ARMREST .
Remove control unit in rear center armrest. Refer to 61 31 156 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT IN CENTER ARMREST AT REAR .

Installation:

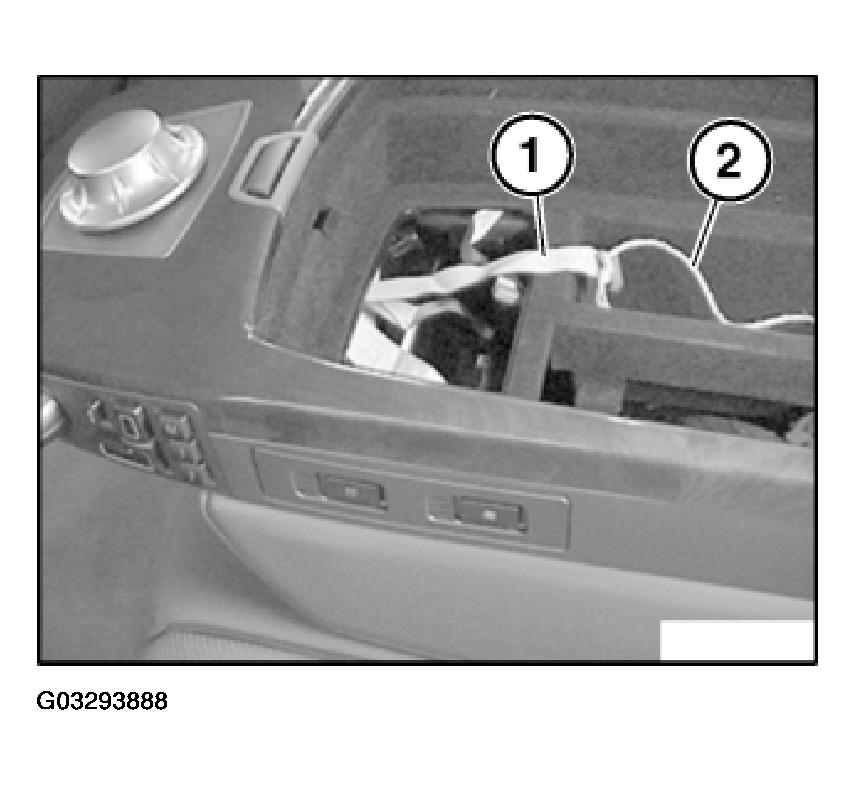

Attach a cord (2) as illustrated to lead for audio unit (1) to make it easier to feed in later.

Fig 1: Cord And Audio Unit Lead

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) in direction of arrow.

Press catches (2) and remove audio unit (3) in direction of arrow.

Fig 2: Plug Connection, Catches, Audio Unit And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.
