61 31 310 Replacing Brake Light Switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Disconnect plug connection (1).

Pull brake light switch (2) in direction of arrow out of brake light switch holder (4).

Installation:

Press brake pedal (3) to floor.
Push brake light switch (2) as far as it will go into brake light switch holder (4).
Grip brake light switch holder (4), slowly return brake pedal (3) to starting position and pull back to stop.

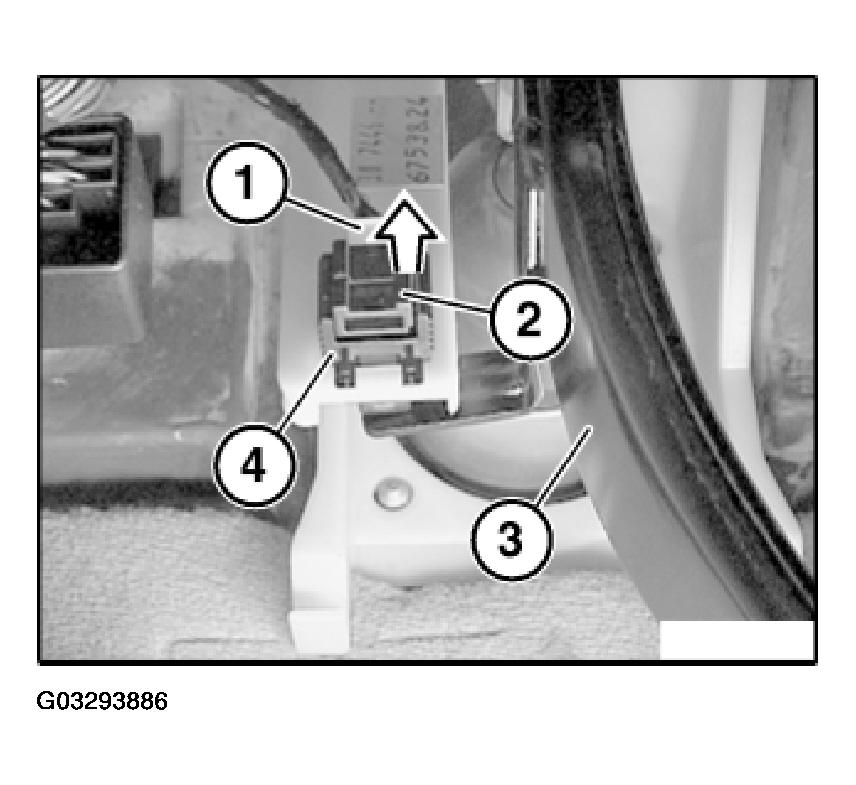

Fig 1: Brake Light Switch, Switch Holder, Brake Pedal, Plug Connection And Removal Direction
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removing brake light switch holder (1):

Press brake pedal.

Unclip brake light switch holder (1) at limbs (2) and remove towards rear.

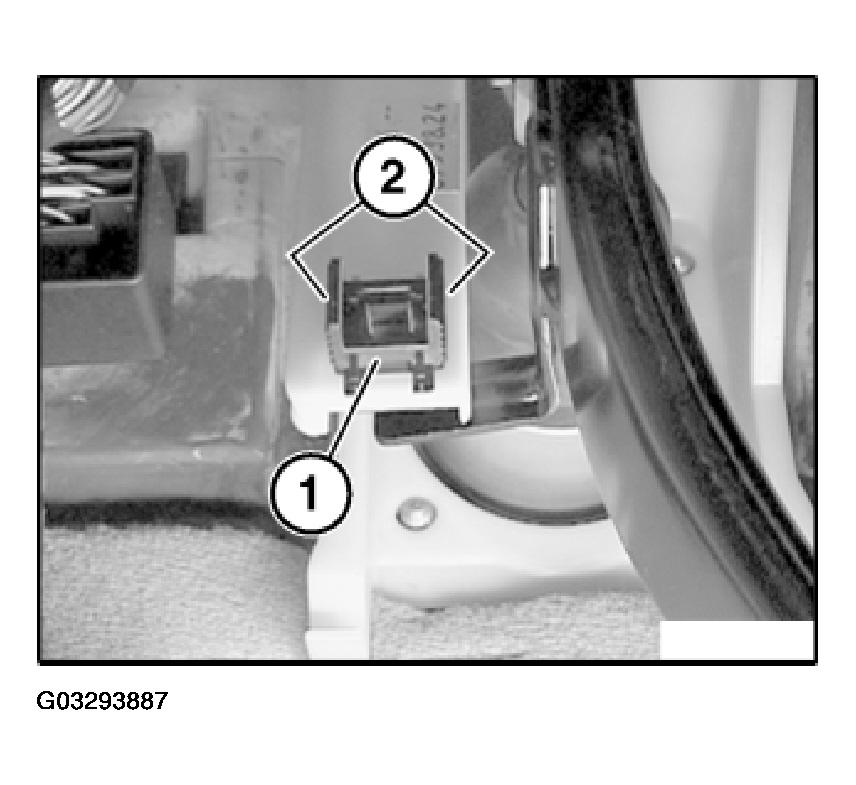

Fig 2: Light Switch Holder And Limbs

Courtesy of BMW OF NORTH AMERICA, INC.
