61 31 241 Removing And Installing/Replacing Engine Hood Contact Switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten plug connection (1) and disconnect.

Press catches (2) together and feed hood contact switch (4) in direction of arrow out of fixture (3).

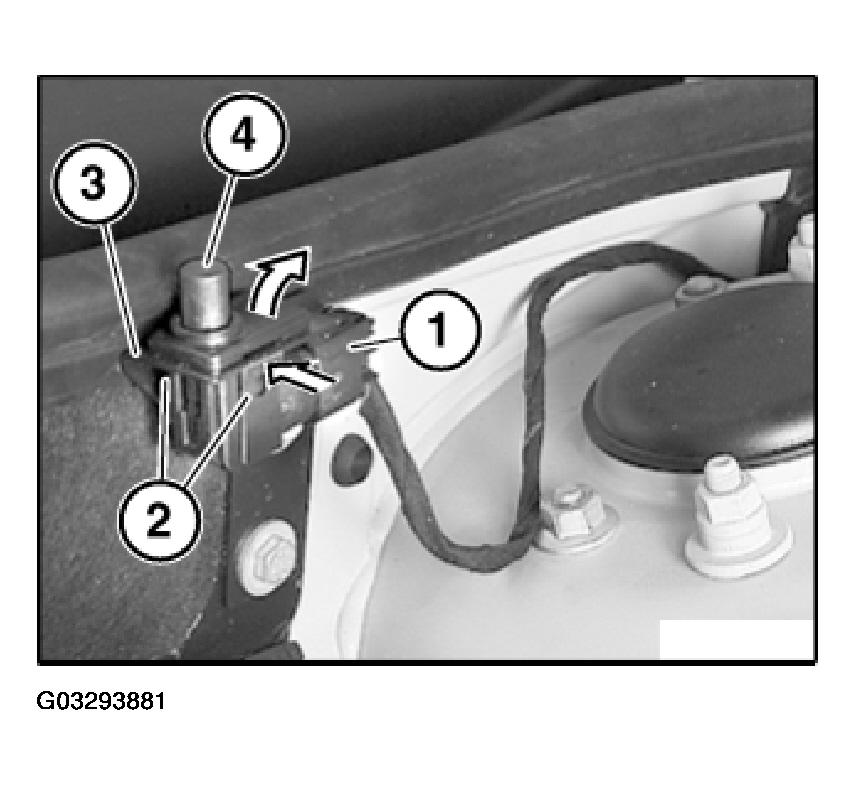

Fig 1: Engine Hood Contact Switch, Plug Connection, Fixture And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.
