61 31 196 Removing And Installing (Replacing) Rear Controller

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove wood trim on rear center armrest. Refer to 52 25 070 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON REAR CENTER ARMREST .

Release screws (1).

Remove rear controller (2) from wood trim on rear center armrest (3).

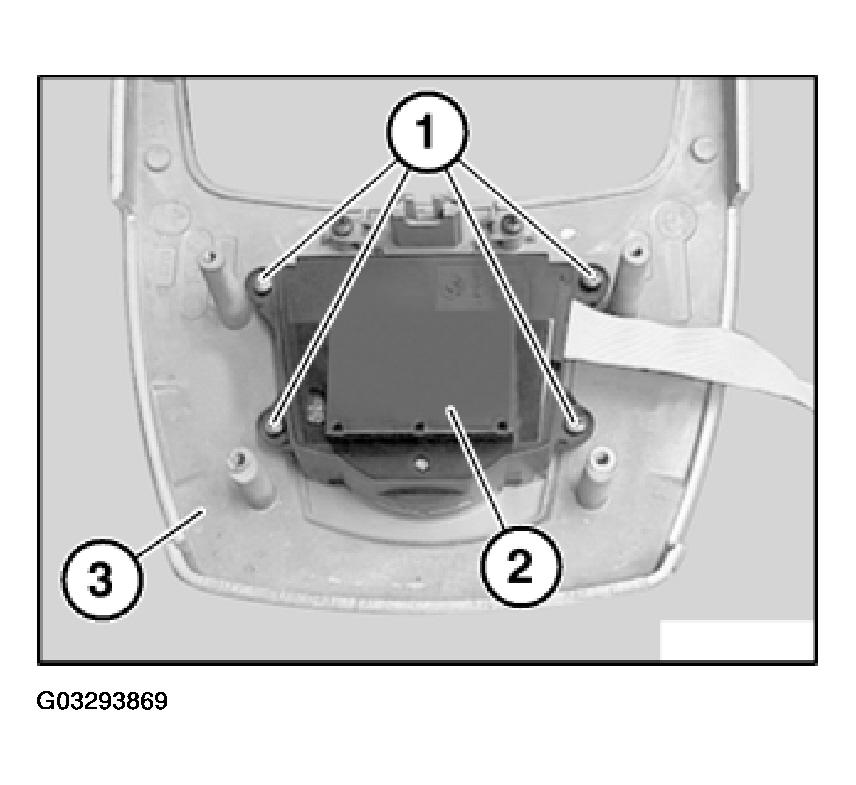

Fig 1: Rear Controller, Rear Center Armrest And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

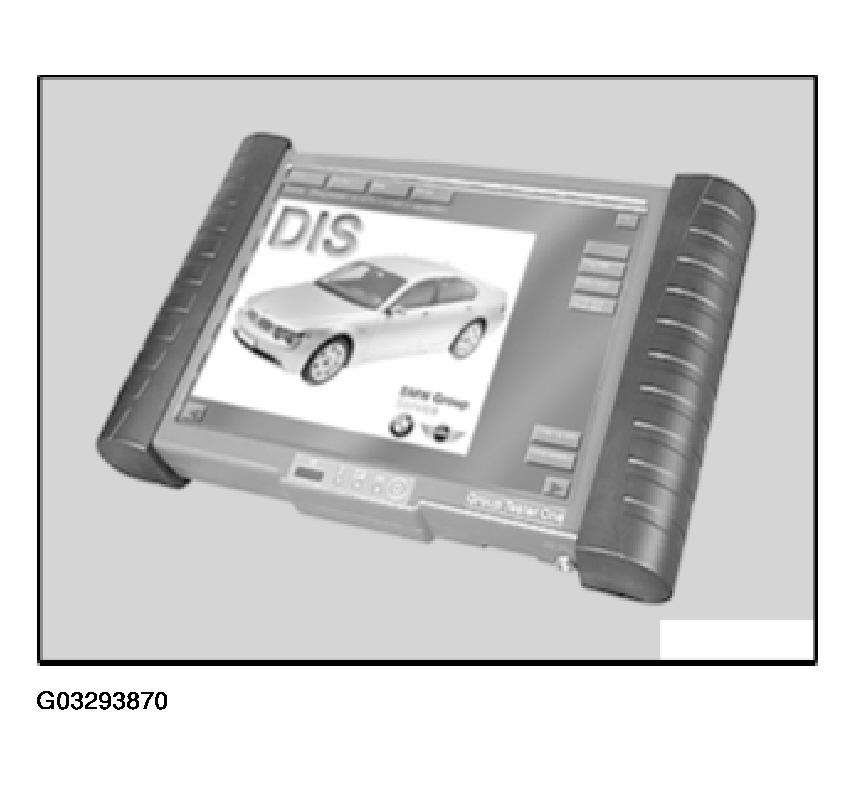

Fig 2: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
