61 31 066 Removing And Installing/Replacing Hotel Setting Switch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
Special Tools Required:
- 00 9 317
NOTE:
Open storage tray in center armrest.

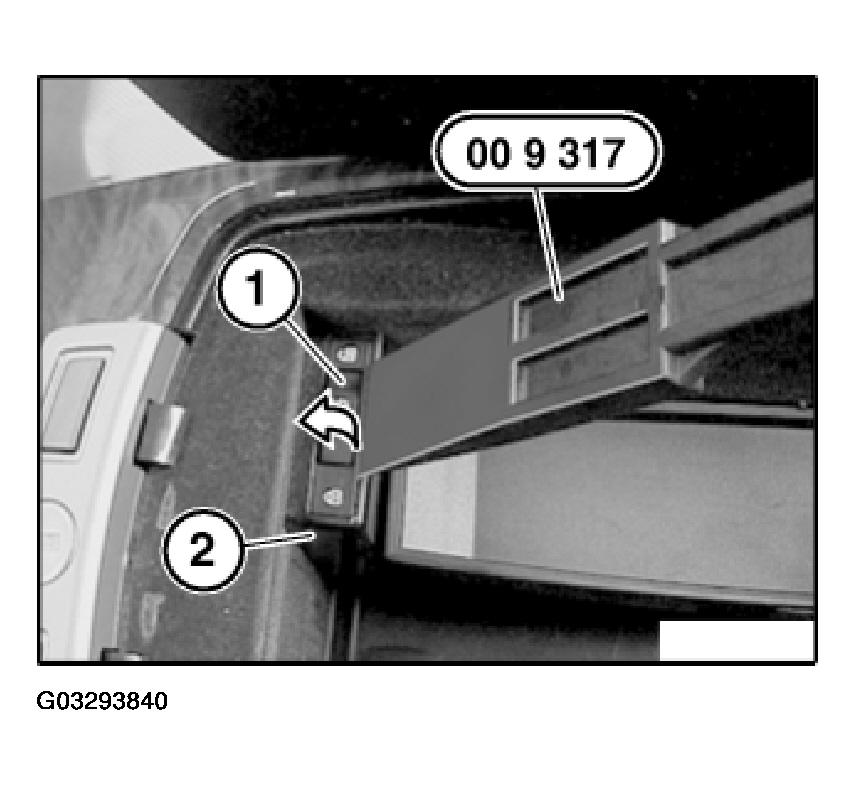

Lever hotel setting switch (1) with special tool 00 9 317 in direction of arrow out of housing (2).
Disconnect plug connection underneath and remove hotel setting switch (1).
