61 31 062 Removing And Installing/Replacing Button For Steering Wheel Heating

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see HEATING AND AIR CONDITIONING - SPECIAL TOOLS .

Special Tools Required:

64 1 020

Lever out button for steering wheel heating (1) with special tool 64 1 020.

Disconnect plug connection behind and remove button for steering wheel heating (1).

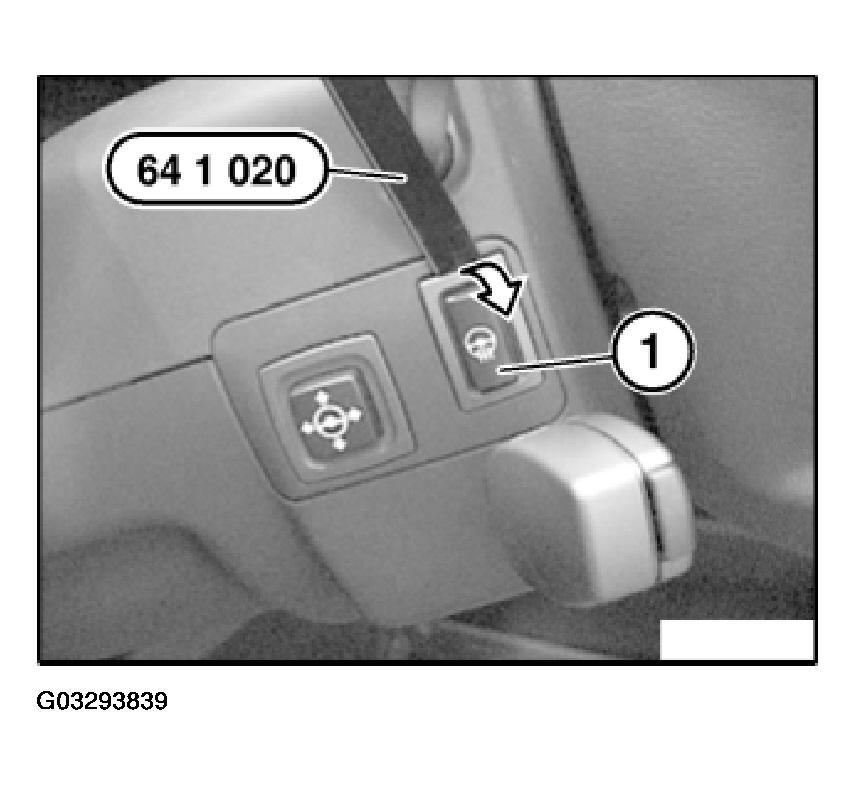

Fig 1: Steering Wheel Heating Button, Special Tool (64 1 020) And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
