61 31 035 Removing And Installing/Replacing Stalk For Steering Column Adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower section of steering column trim. Refer to 32 31 020 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING COLUMN TRIM .

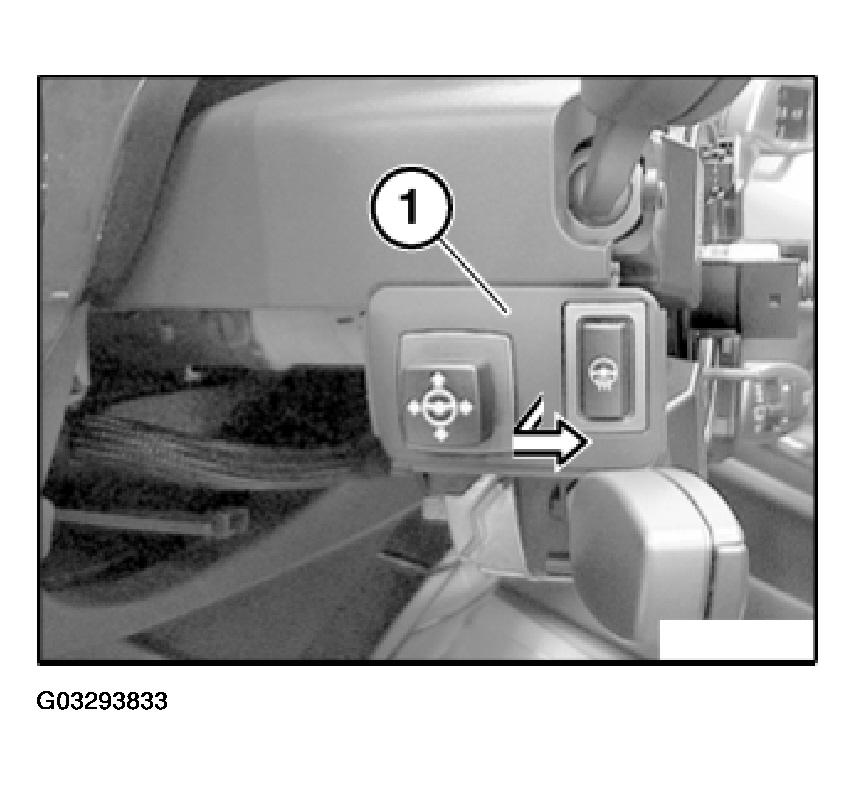

Remove trim (1) in direction of arrow.

Fig 1: Trim And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

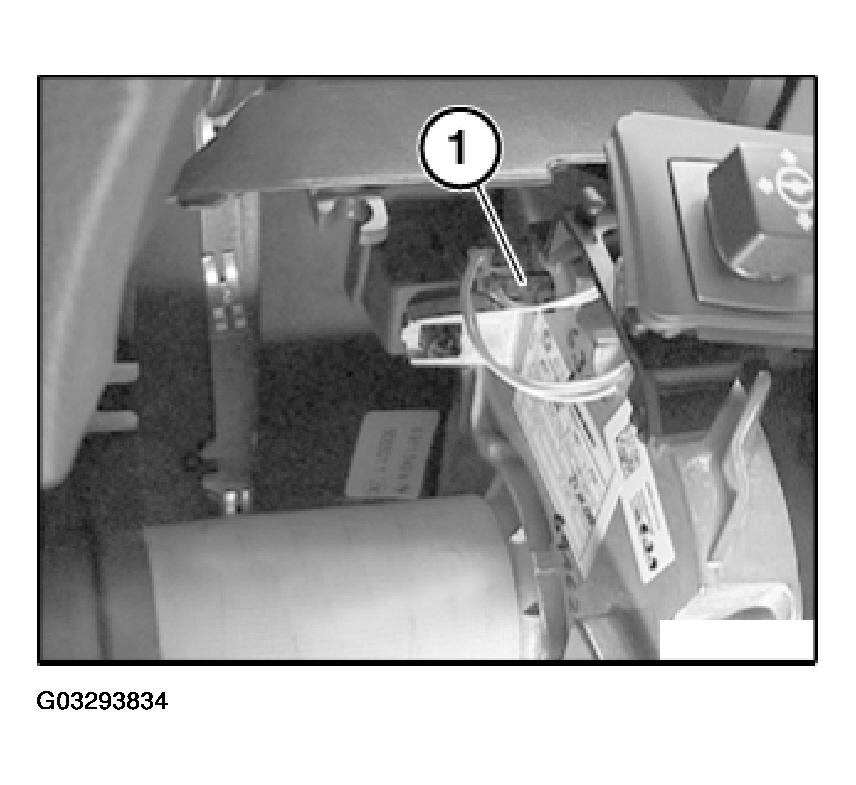

Disconnect plug connection (1).

Fig 2: Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

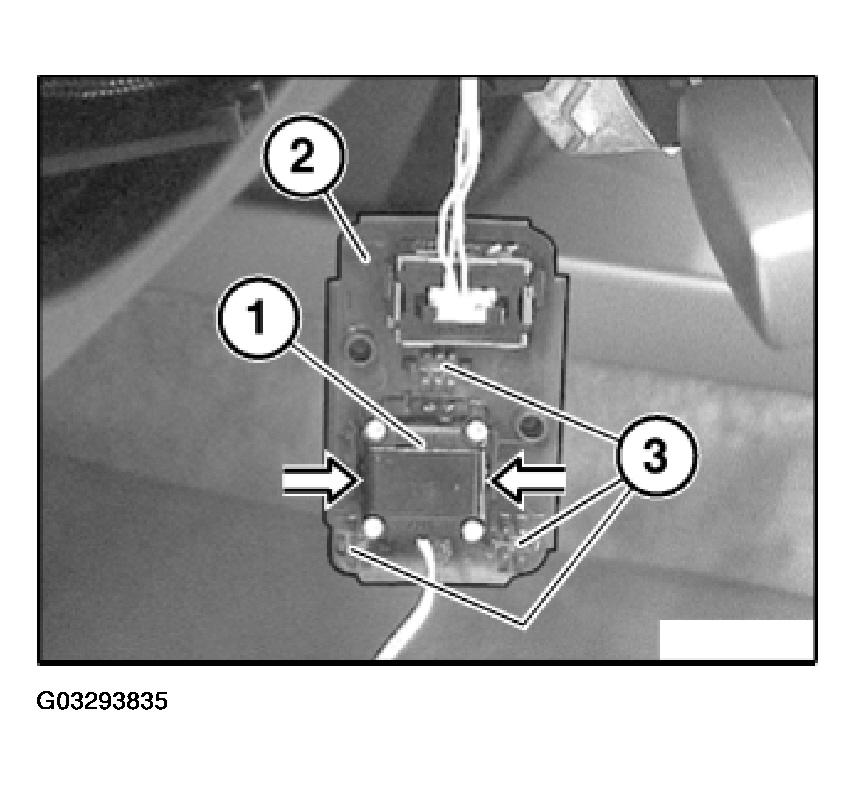

Unlock steering column adjustment switch (1) on both sides and press out of trim (2).

Installation:

Mounts (3) must not be damaged.

Fig 3: Steering Column Adjustment Switch, Trim, Mounts And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
