51 45... Removing And Installing/Replacing Center Instrument Panel Trim

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove wood trim on instrument panel on right. Refer to 51 45 366 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON RIGHT .

Release screws (1).

Pull out trim (2) slightly in direction of arrow.

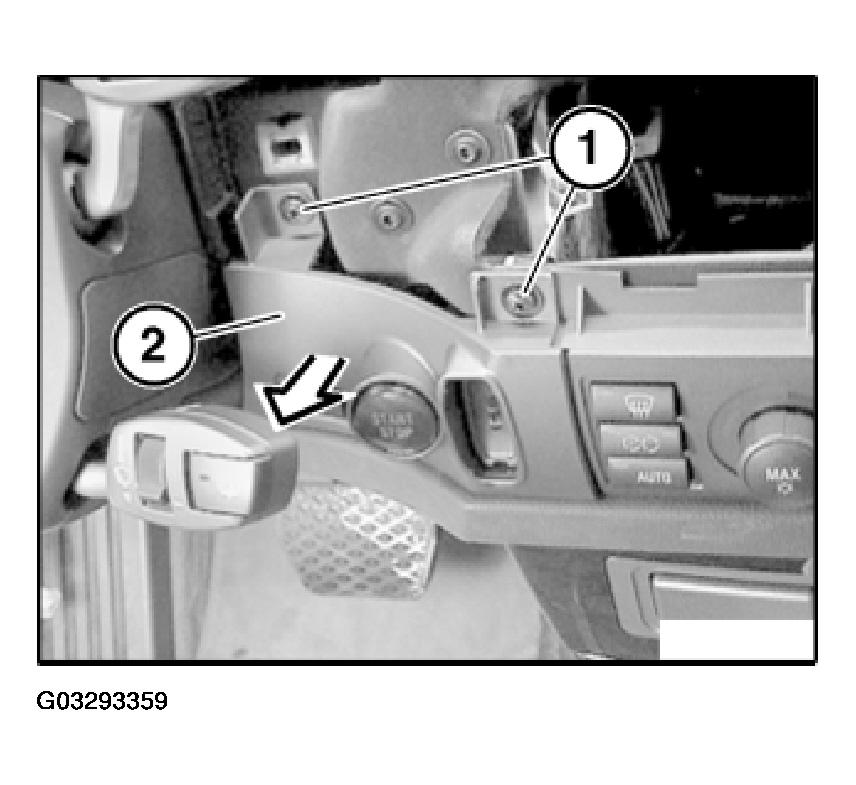

Fig 1: Locating Trim Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) from PDC switch and detach.

Remove trim (2).

Installation:

Make sure retainers (3) engage correctly in openings (4).

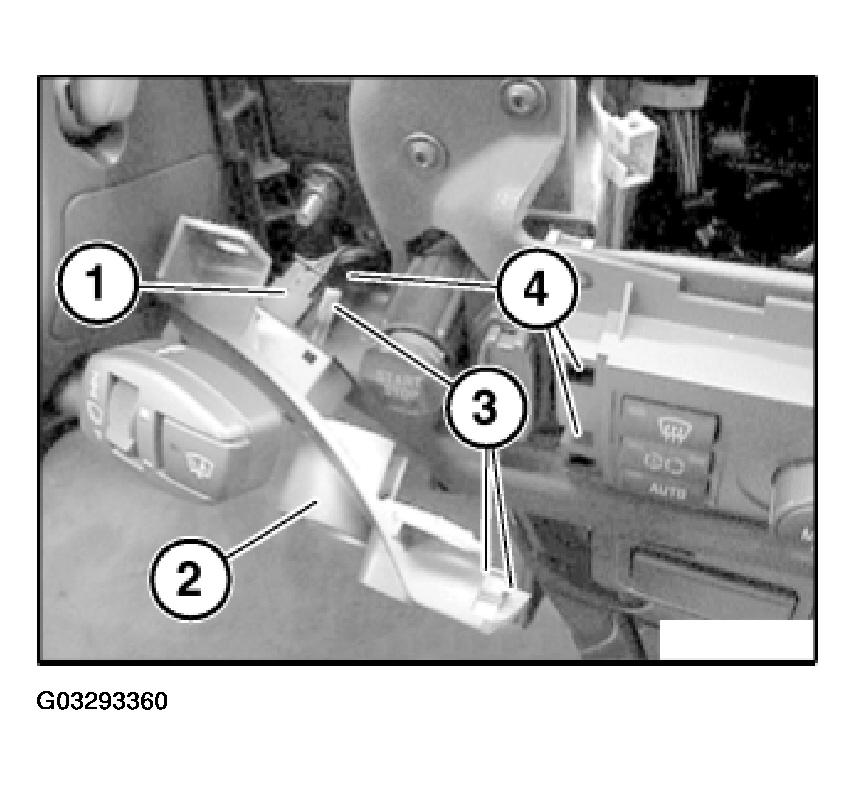

Fig 2: Identifying Plug From PDC Switch

Courtesy of BMW OF NORTH AMERICA, INC.
