32 31 095 Removing And Installing/Replacing Steering Column Control Unit (CIM)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
IMPORTANT:
To avoid damaging the control unit, make sure when installing that the baseplate is not subjected to tension.
After installation:
- Replacement only: initialize steering column using BMW diagnosis system (control unit functions).
Necessary Preliminary Tasks:
- Remove panel for (active) knee protector. Refer to 51 45 175 REMOVING AND INSTALLING/REPLACING PANEL FOR KNEE PROTECTOR ON LEFT and 51 45 177 REMOVING AND INSTALLING/REPLACING PANEL FOR ACTIVE KNEE PROTECTOR ON LEFT .

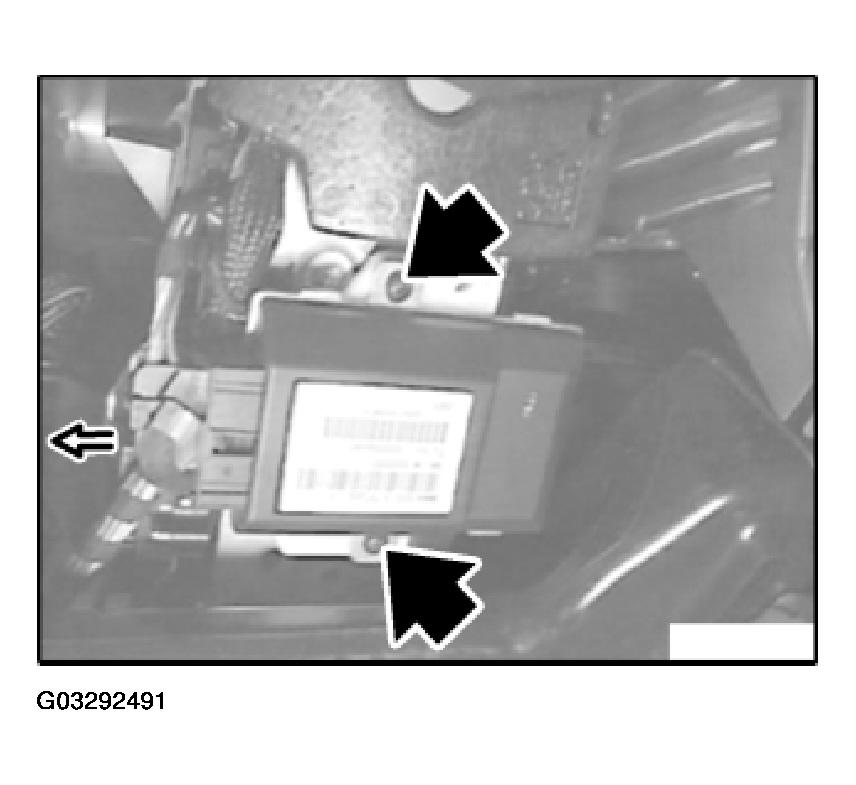

Disconnect plug connection.
Release screws and remove steering column control unit.
Tightening torque, refer to 32 31 9AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .
