Metal FCD Clutches:

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

Metal quick-release couplings can only be opened with special tool 32 1 300.

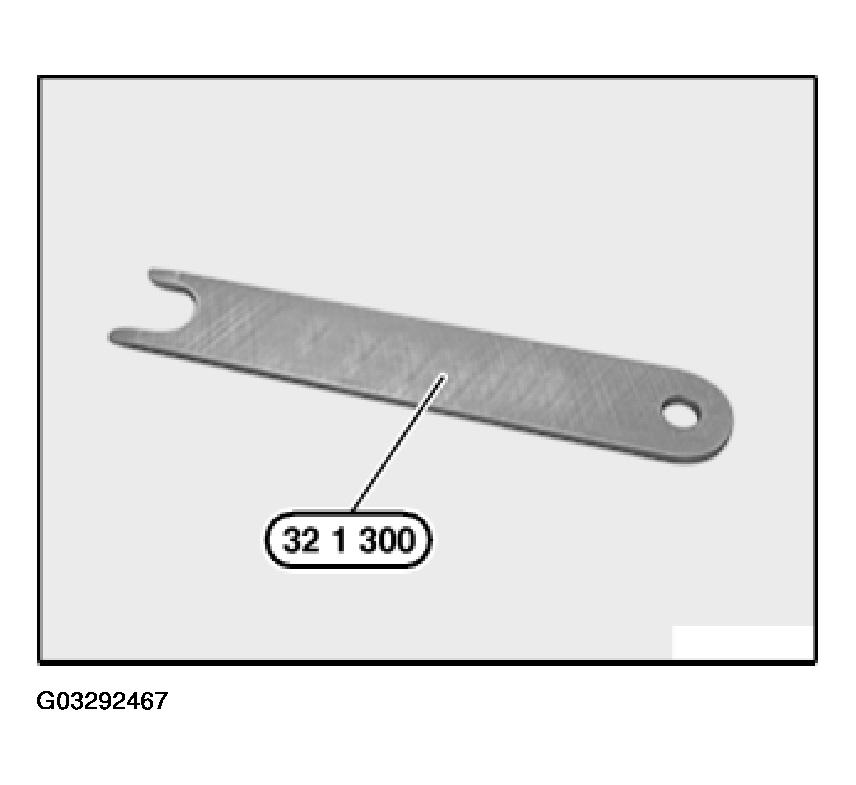

Fig 1: Special Tool (32 1 300)

G03292467

Courtesy of BMW OF NORTH AMERICA, INC.

Slide special tool 32 1 300 between metal head (1) and rubber lip (2) of quick-release coupling.

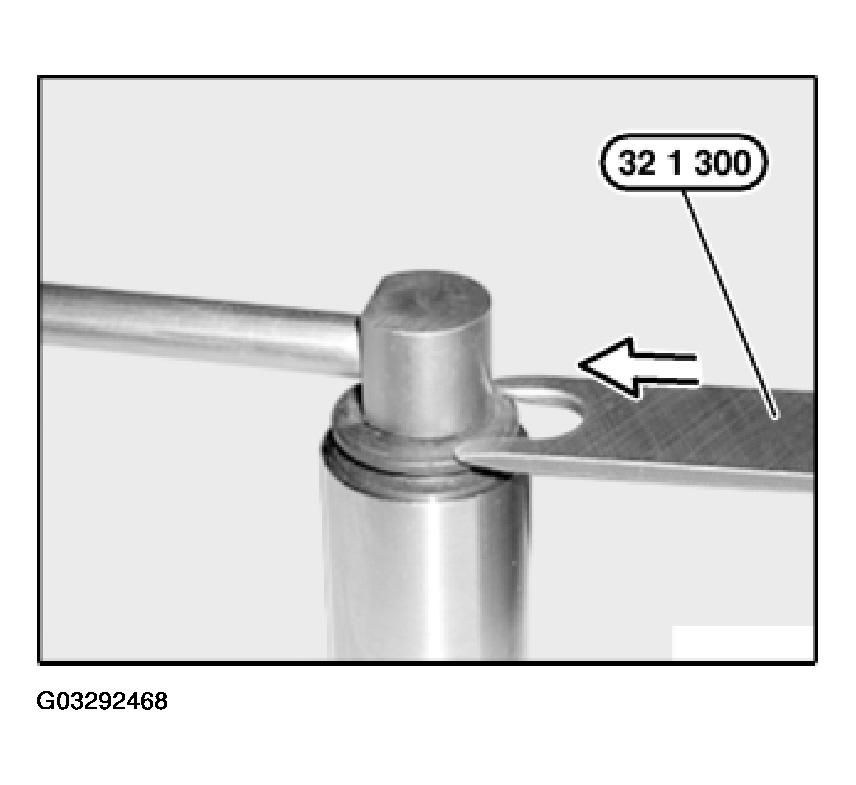

Fig 2: Special Tool (32 1 300) And Tool Installation Direction

G03292468

Courtesy of BMW OF NORTH AMERICA, INC.

Slide in special tool 32 1 300 as far as it will go. Quick-release coupling unlocks with a light click.

Then pull off coupling and tool towards top.

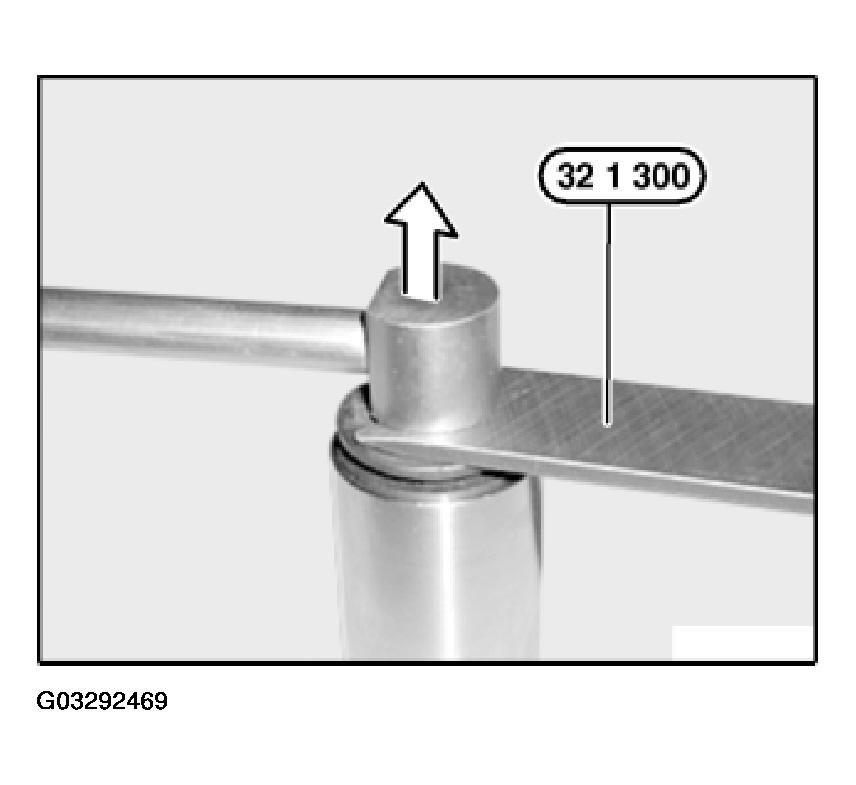

Fig 3: Special Tool (32 1 300) And Coupling Removal Direction

G03292469

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove tool.

Press quick-release coupling into steering gear.

Quick-release coupling must snap into place with an audible click.

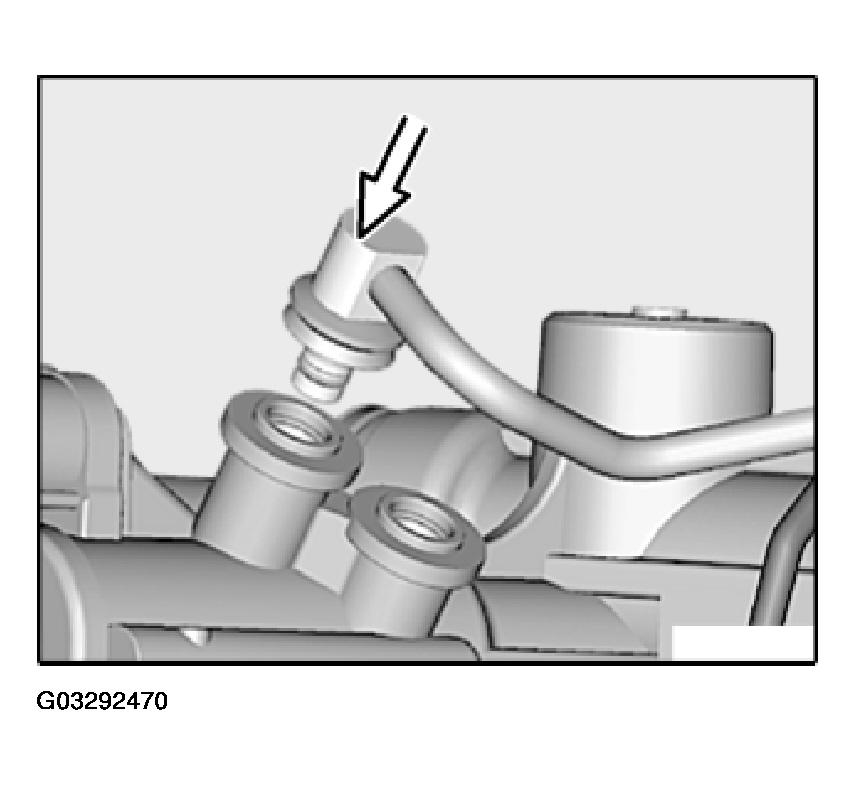

Fig 4: Quick-Release Coupling Installation Direction

G03292470

Courtesy of BMW OF NORTH AMERICA, INC.
