FCD Coupling With Plastic Caps:

Removal:

To release quick-release coupling, turn cap from position (A) - closed - to position (B) - open.

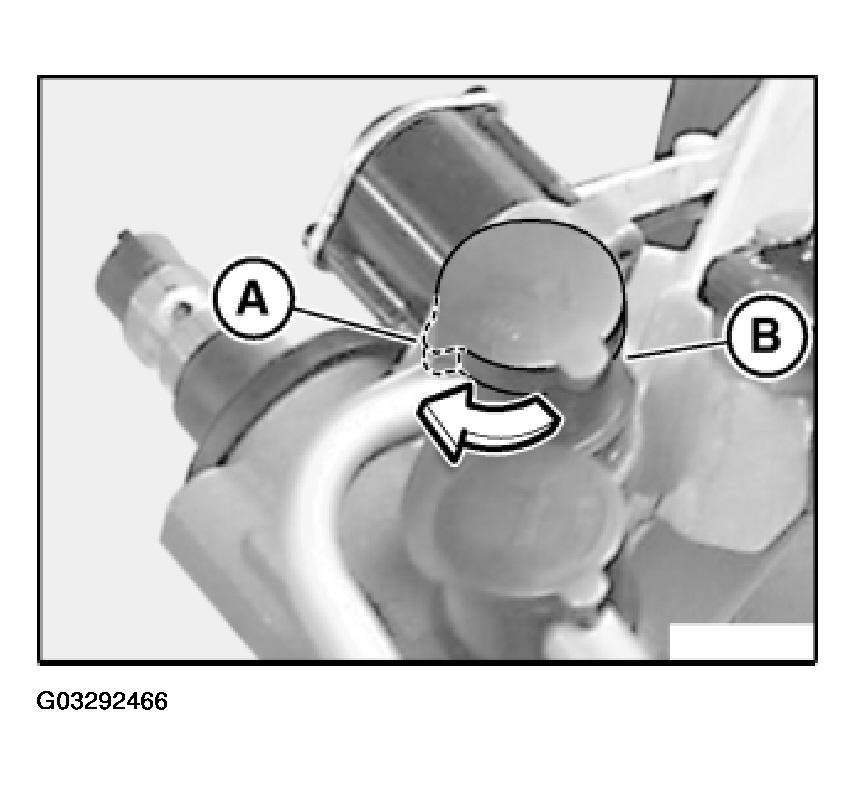

Fig 1: FCD Coupling Pastic Cap Open And Close Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock quick-release coupling by pressing on cap (1).

Detach line while pressing cap.

In event of removal while installed, use special tool 32 1 030.

Position special tool close to locking head.

If necessary, fit repair kit for FCD coupling. Refer to 32 13... FITTING REPAIR KIT FOR FCD COUPLING .

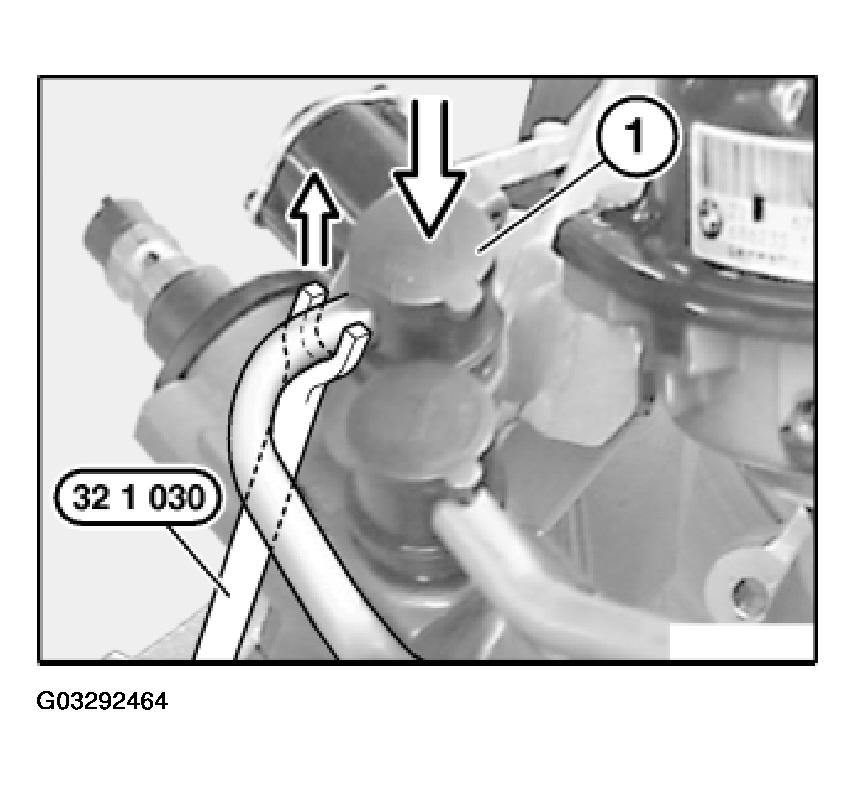

Fig 2: FCD Coupling Pastic Cap, Special Tool (32 1 030) And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat seal pack (O-ring (1), support ring (2)) with hydraulic fluid before sliding in.

Slide quick-release coupling into housing by pressing on coupling cover.

Quick-release coupling must snap into place with an audible "click".

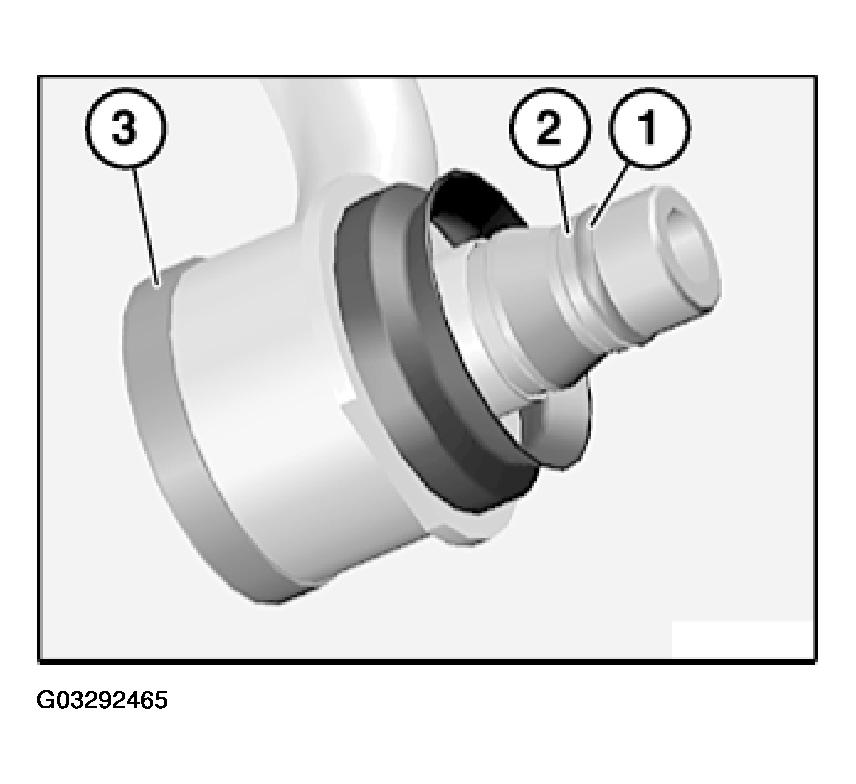

Fig 3: O-Ring And Support Ring

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lock coupling by turning cap from position (B) to position (A).

Lug of coupling must be over line outlet - position (A).

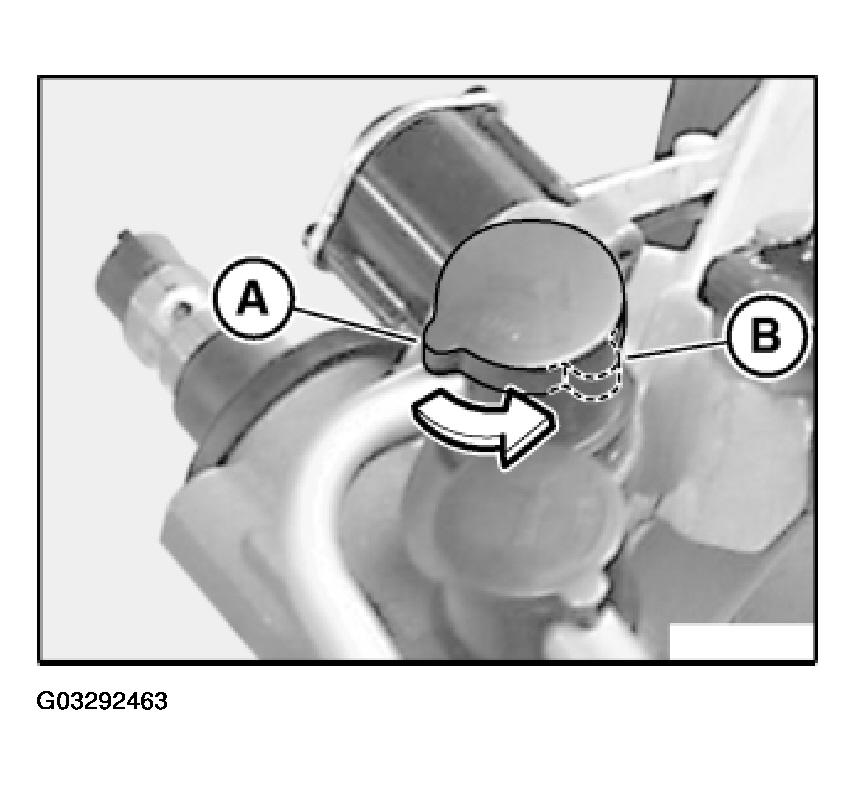

Fig 4: Cap Opening And Locking Positions
