32 13 650 Removing And Installing/Replacing EH Converter For Servotronic
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Necessary Preliminary Tasks:
- Remove steering gear cover at side.
- If necessary, remove heat shield. See AUTOMATIC TRANSMISSION

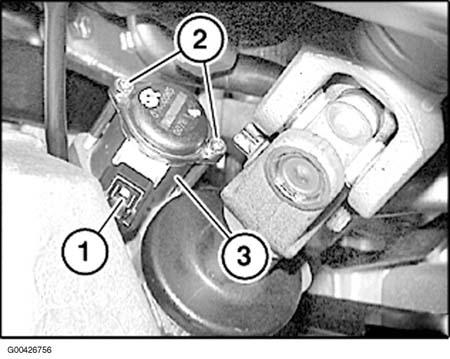

Disconnect plug connection (1).
Unfasten screws (2).
Remove EH converter (3).
Installation:
Clean side return orifice with compressed air.
Align EH converter (3) to opening in power steering gear, press by hand into power steering gear up to stop, insert screws (2) and tighten down.
Tightening torque, refer to 32 13 12AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .
After Installation:
- Fill and bleed hydraulic system. Refer to 32 13 006 BLEEDING POWER STEERING UNIT .
Version With Dynamic Drive:
- If necessary, carry out initial operation for Dynamic Drive. Refer to 37 10 001 INITIAL OPERATION WITH TEST RUN OF DYNAMIC DRIVE .
